WestConnex M8 Junction

The striking design features surrounding the WestConnex M8 tunnel perfectly demonstrates our ability to deliver customised solutions to achieve unique designs. Our Facade Blades and Aluminium Click-on Battens were used by architects Hassell to create an iconic feature around the tunnel entrance and the ventilation systems above.

Product

Click-on Battens

Materials

Anodised Aluminium
M8 Westconnex Sculptform

A Mixture of Applications

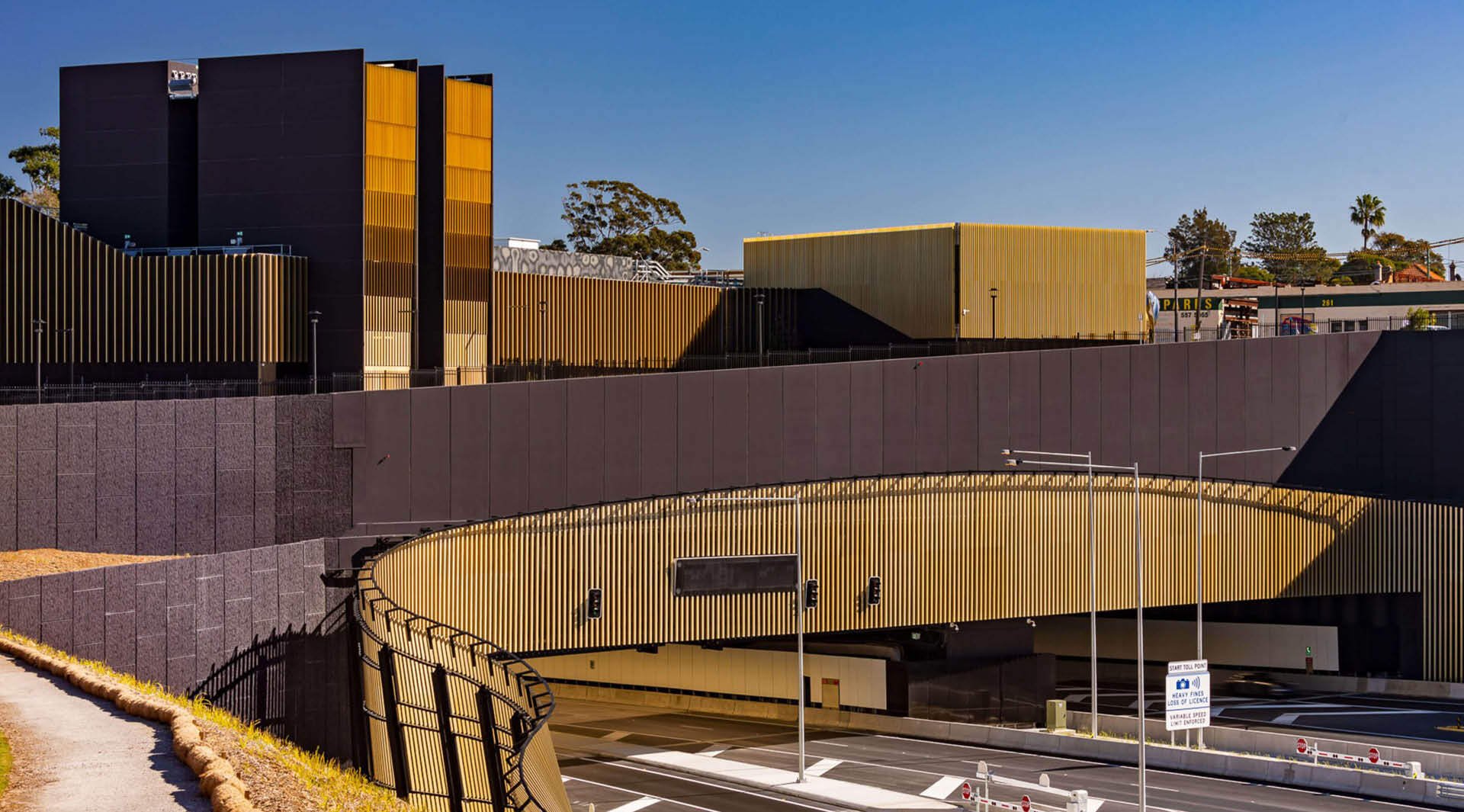

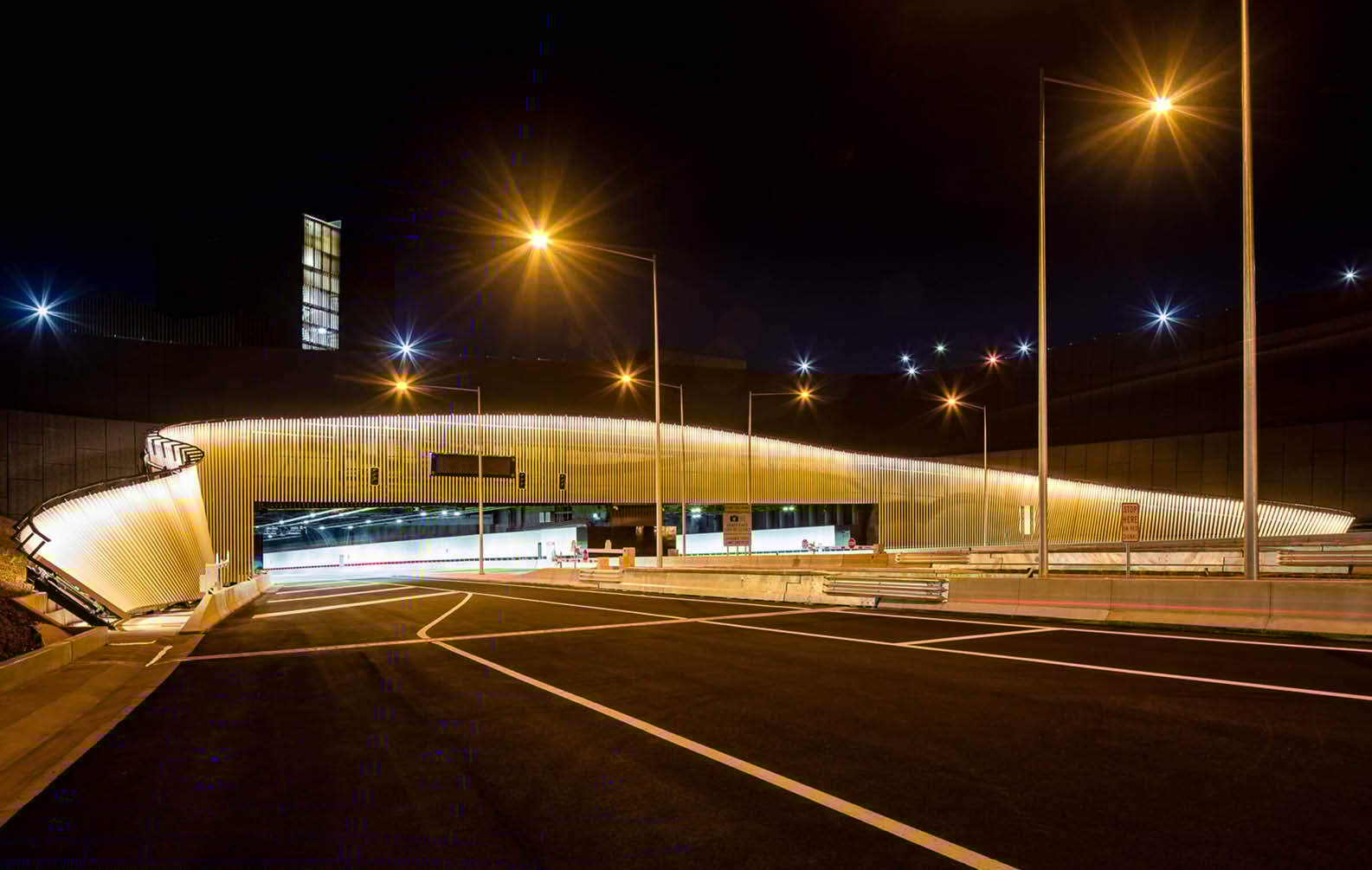

Two major elements of the WestConnex project are the ‘veil’ at the entrance of the tunnel and the ventilation system above. The one-of-a-kind veil emanates a stunning golden sheen to passing motorists achieved through anodised aluminium façade blades.

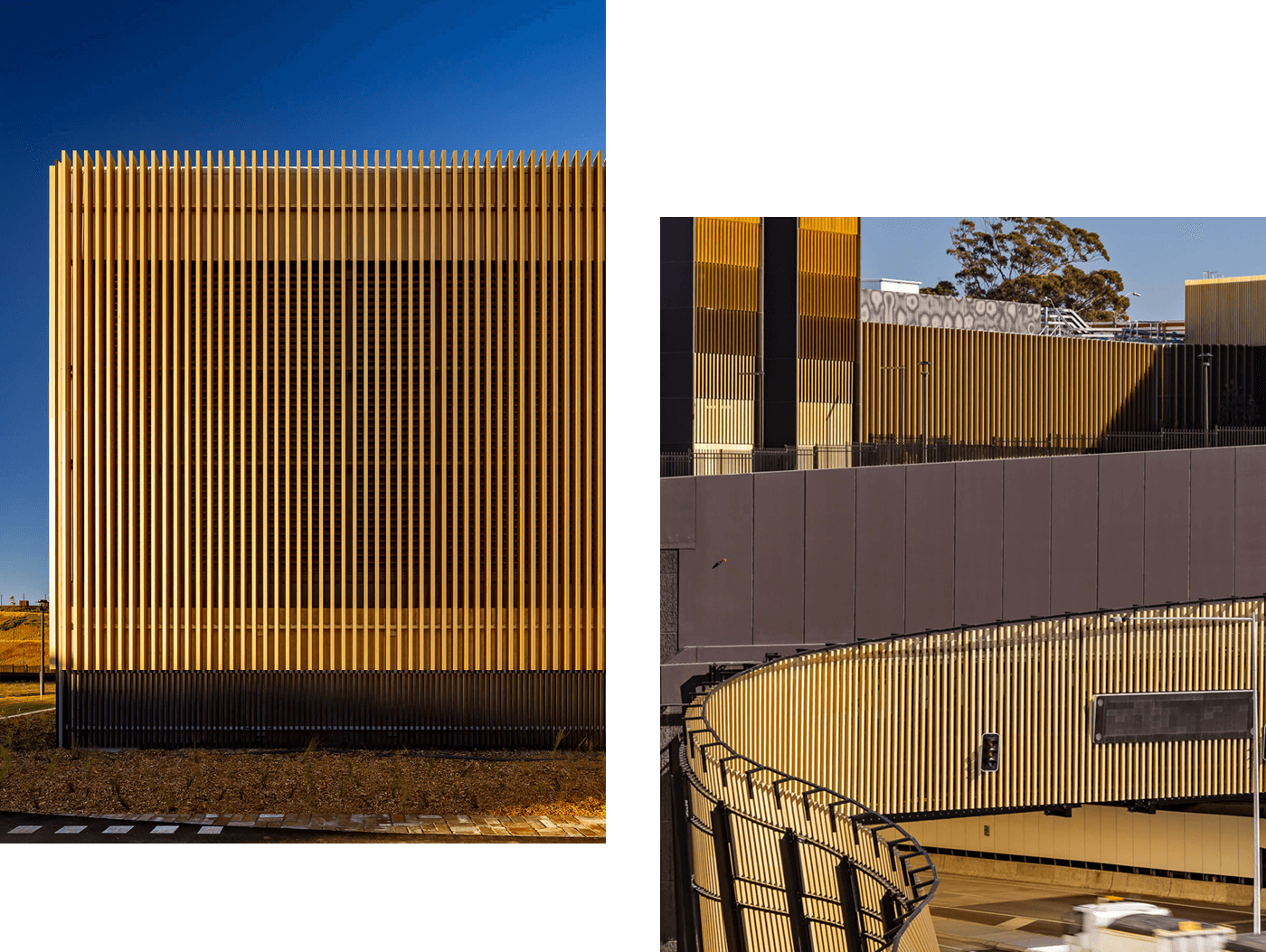

The ventilation facility located above the tunnel needed to be functional and blend seamlessly with the veil installation below. To achieve this, it was encased with an iteration of our Aluminium Click-on Battens, perfectly integrating with the design of the veil and allowing optimal airflow.

M8 Westconnex Sculptform
M8 Westconnex Sculptform

A Custom Product Solution

Anodised aluminium was chosen for the Click-on Battens and Facade Blades to attain the striking metallic finish fundamental to the design. Both are made from 100% Australian aluminium extruded in Dandenong and are an excellent low maintenance option for areas with limited access like the veil.

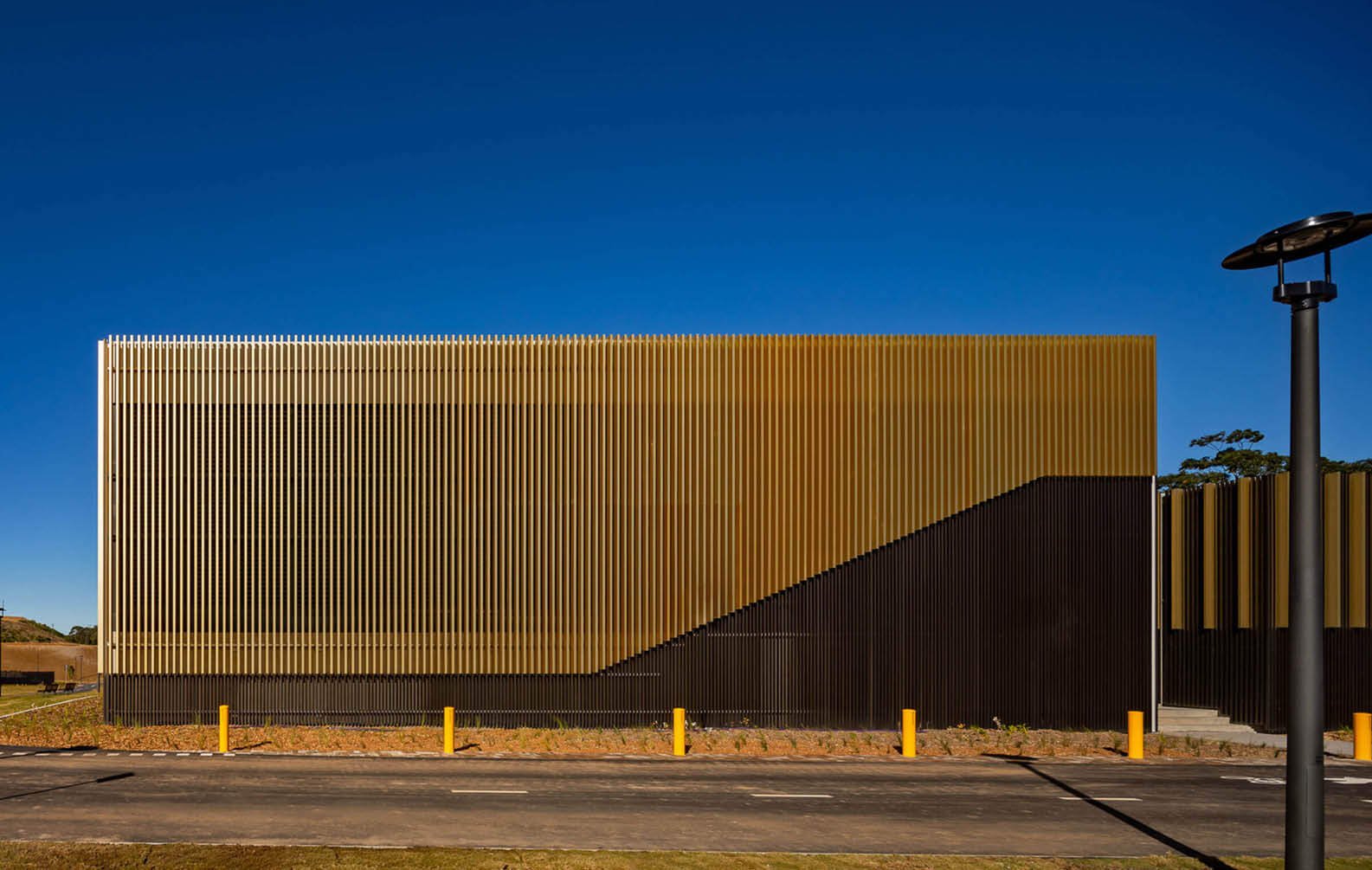

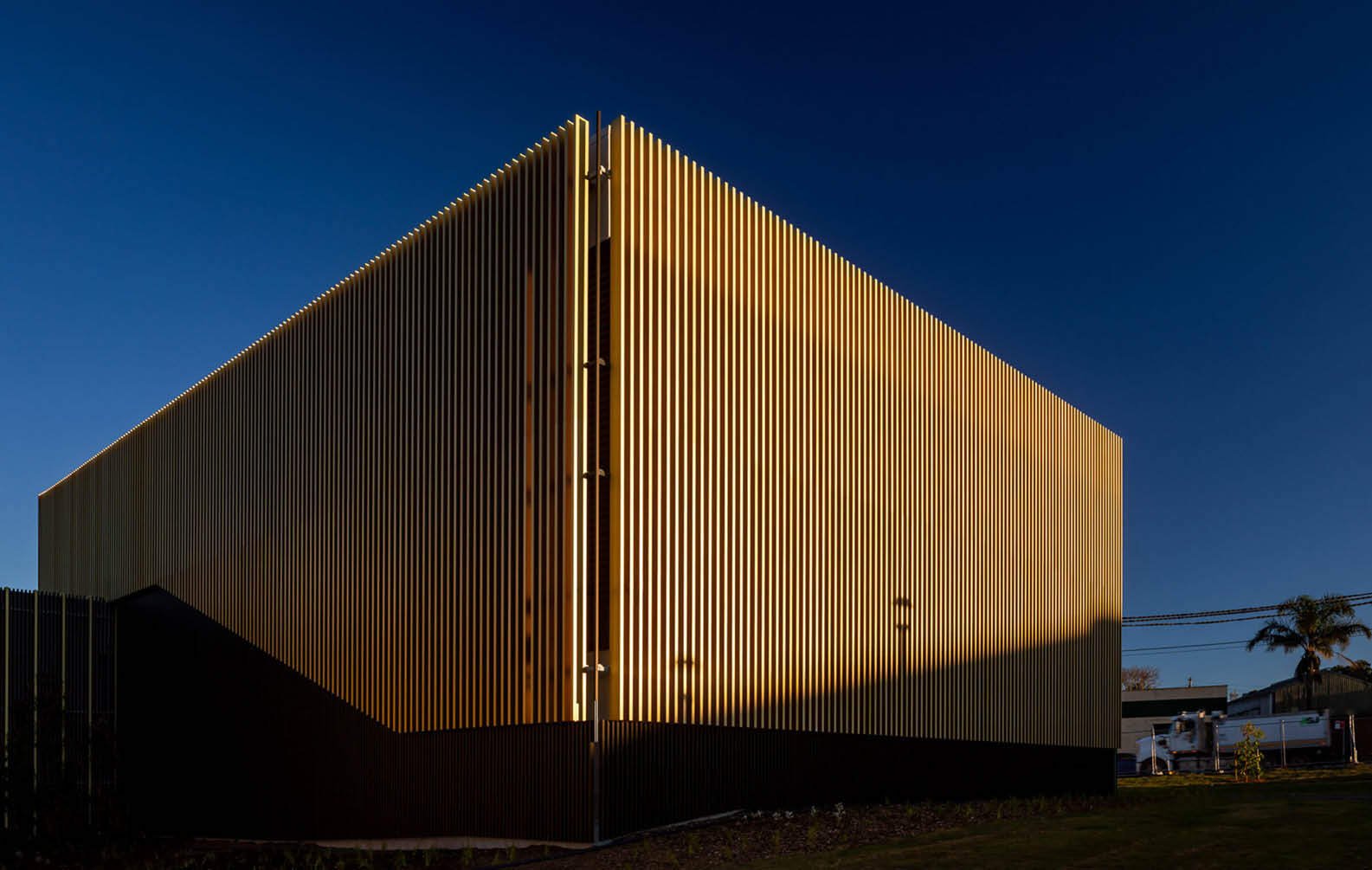

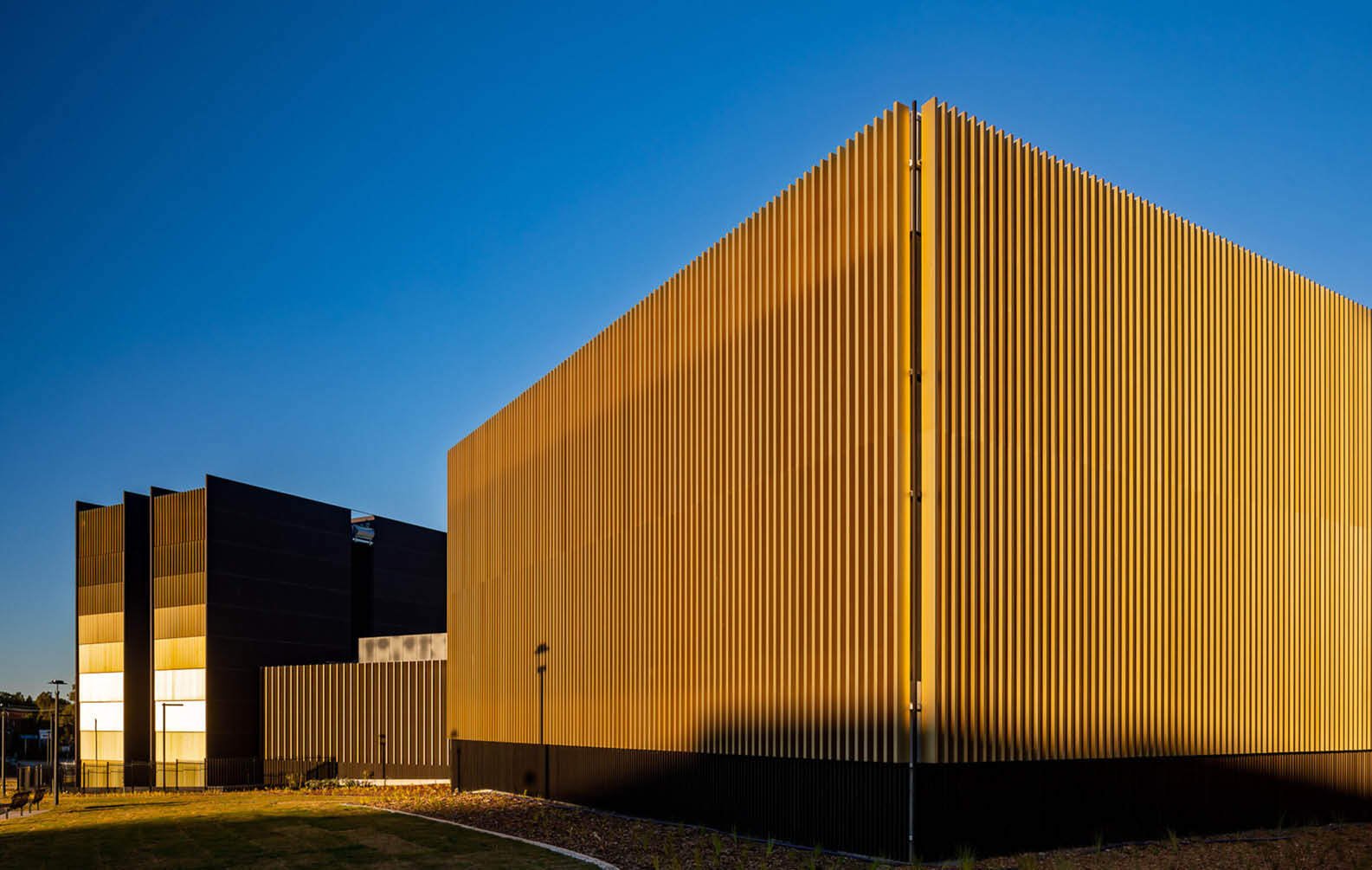

The ventilation facility creates an eye-catching contrast with 50 x 200mm battens in a Sovereign Gold finish dispersed between 32 x 60mm battens in Jamaican Chocolate. These are fixed to the exterior on a custom rail system which combines our patented bracket and clip connections on one rail to minimise visual impact and ensure fast installation.

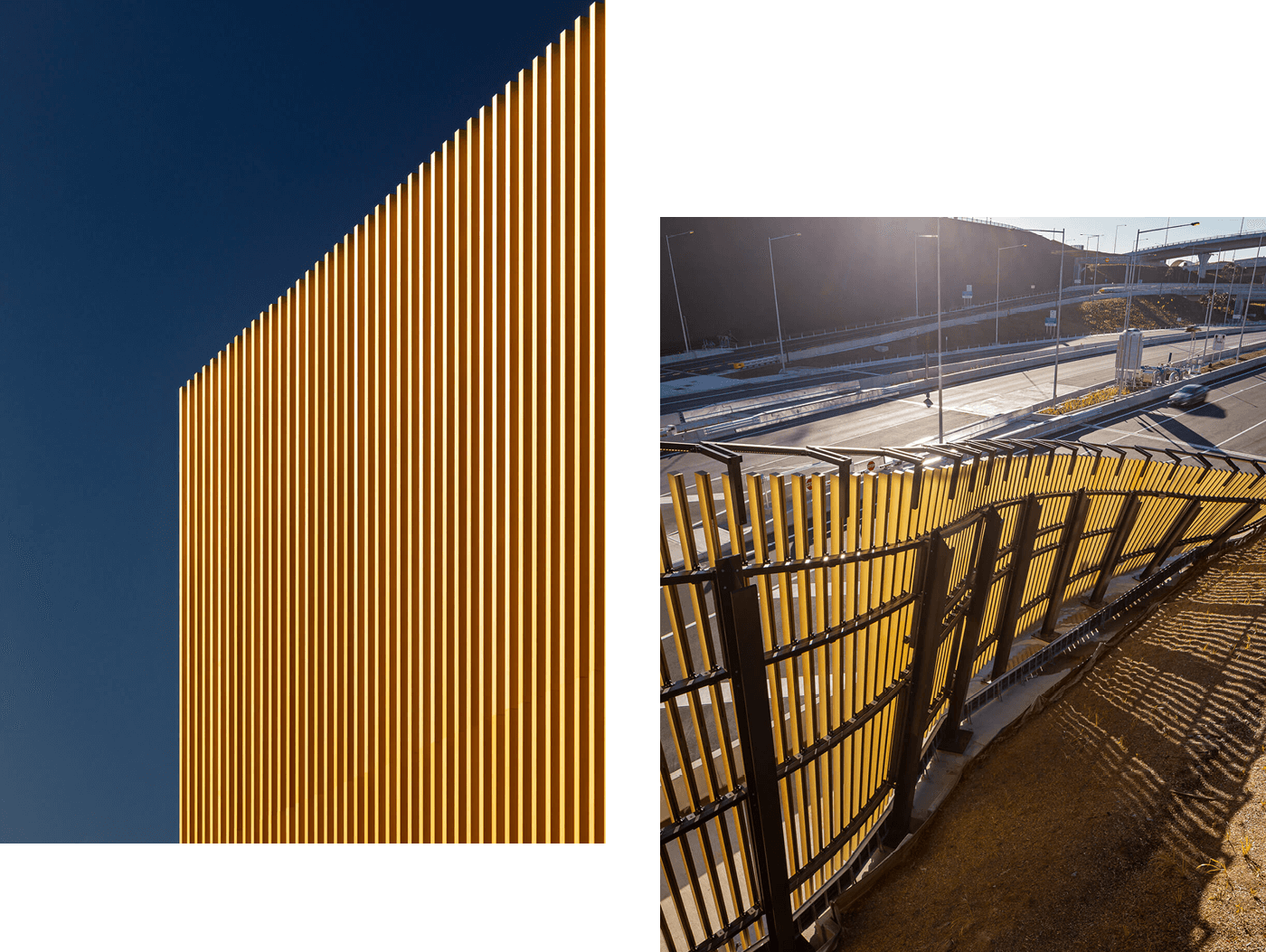

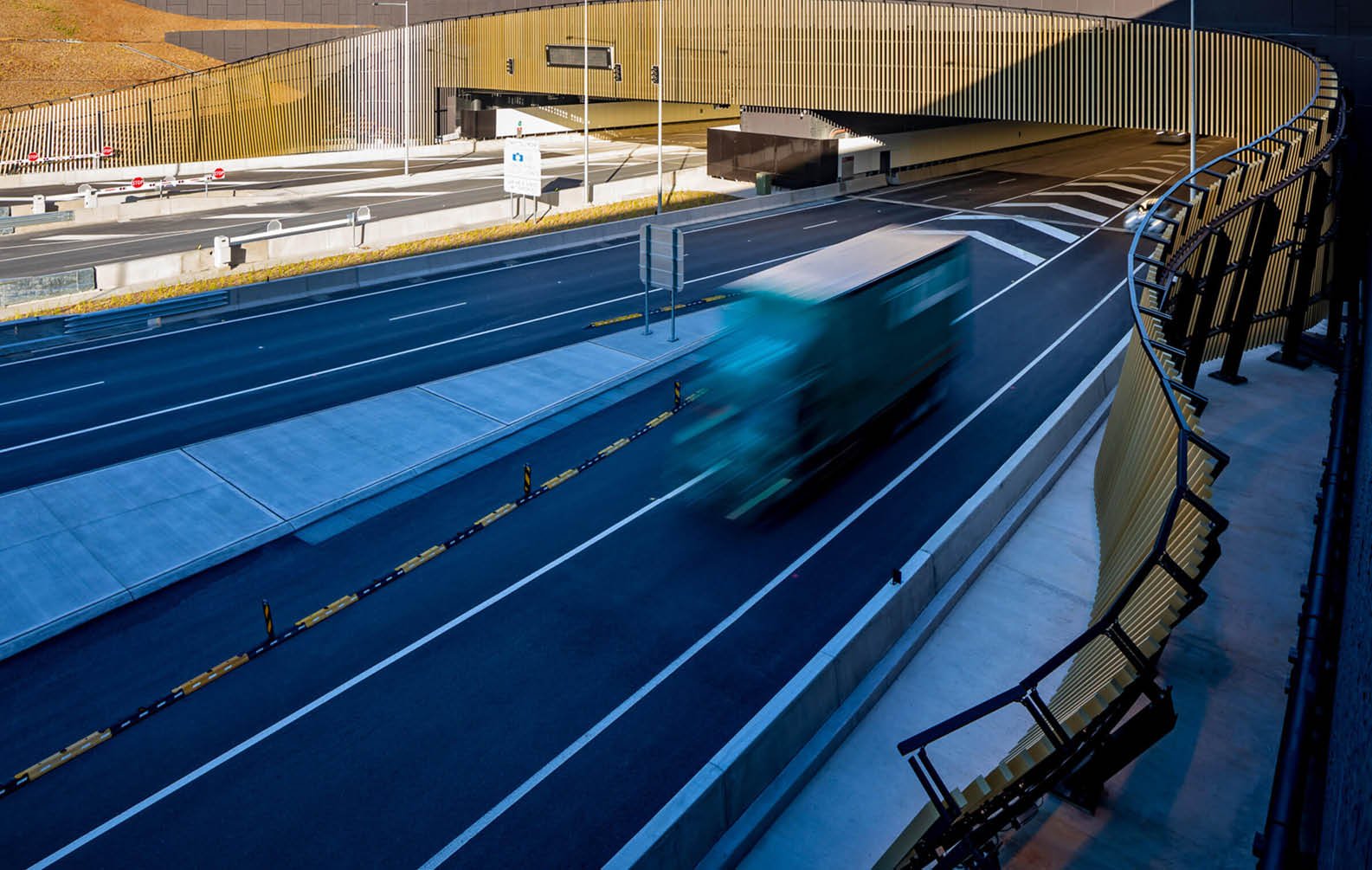

The veil was installed upon a customised rail with multi-axis brackets and outreach arms, to achieve the unique curved formation. Come nightfall, lights installed on the outreach arm shine onto the veil, creating a dramatic effect.

M8 Westconnex Sculptform
M8 Westconnex Sculptform
M8 Westconnex Sculptform

Unique Multi-Axis Brackets

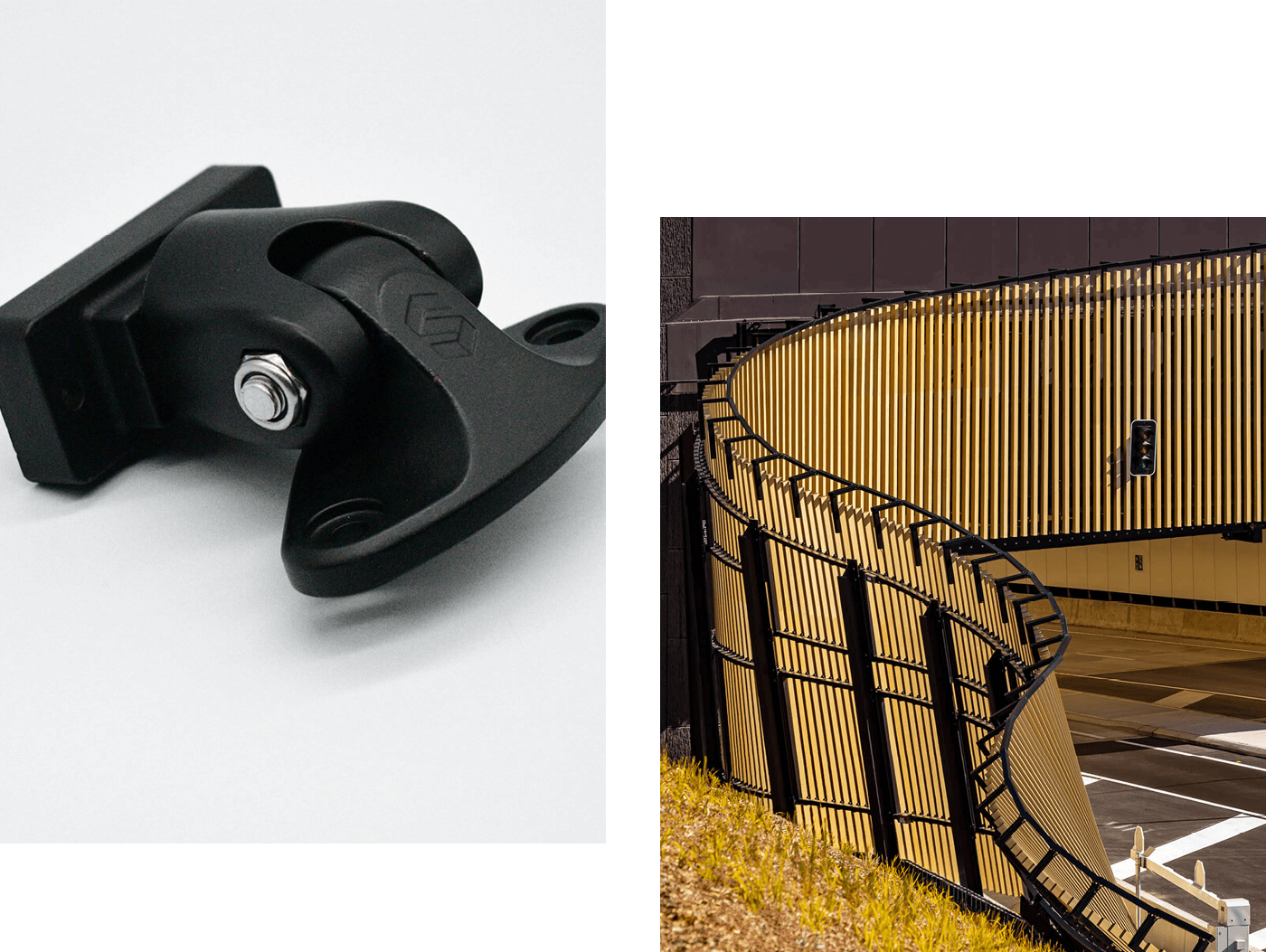

To attain Hassell’s vision of a curved veil installation, Sculptform specially designed and engineered multi-axis brackets to support the required twist and bend of the structure. The patented connection of the bracket offers a systemised solution allowing for our usual installation efficiency, enabling Hassell’s unique design intent.

Multi-axis brackets were fixed to the blades at the required angle, which varied for each batten and another was required at the bottom for support, with a small gap left for heat expansion. These brackets allow the structure to be capable of higher wind loads critical for the environment of a veil, over a roadway.

M8 Westconnex Sculptform
Specification Details - The Veil
Product Sculptform Facade Blades
Blade Size/s 100x150mm
Finish Soverign Gold
Gap 150mm
Rail Type 50x100mm Custom Rail
Bracket Type Multi Axis Brackets

Creating a Visual Identity

In this project, the architects have sought to create a feature that provides character to the entryway, giving the site a cultural identity as well as practical value. Indigenous artists were engaged to create the finish of the building, which makes a significant contribution to the understanding of ‘connection to country’. The curvature of the veil could be understood as a response to the range of motion when entering the tunnel and the light and shadows that are experienced when travelling through this area.



M8 Westconnex Sculptform
M8 Westconnex Sculptform

Supply and Install

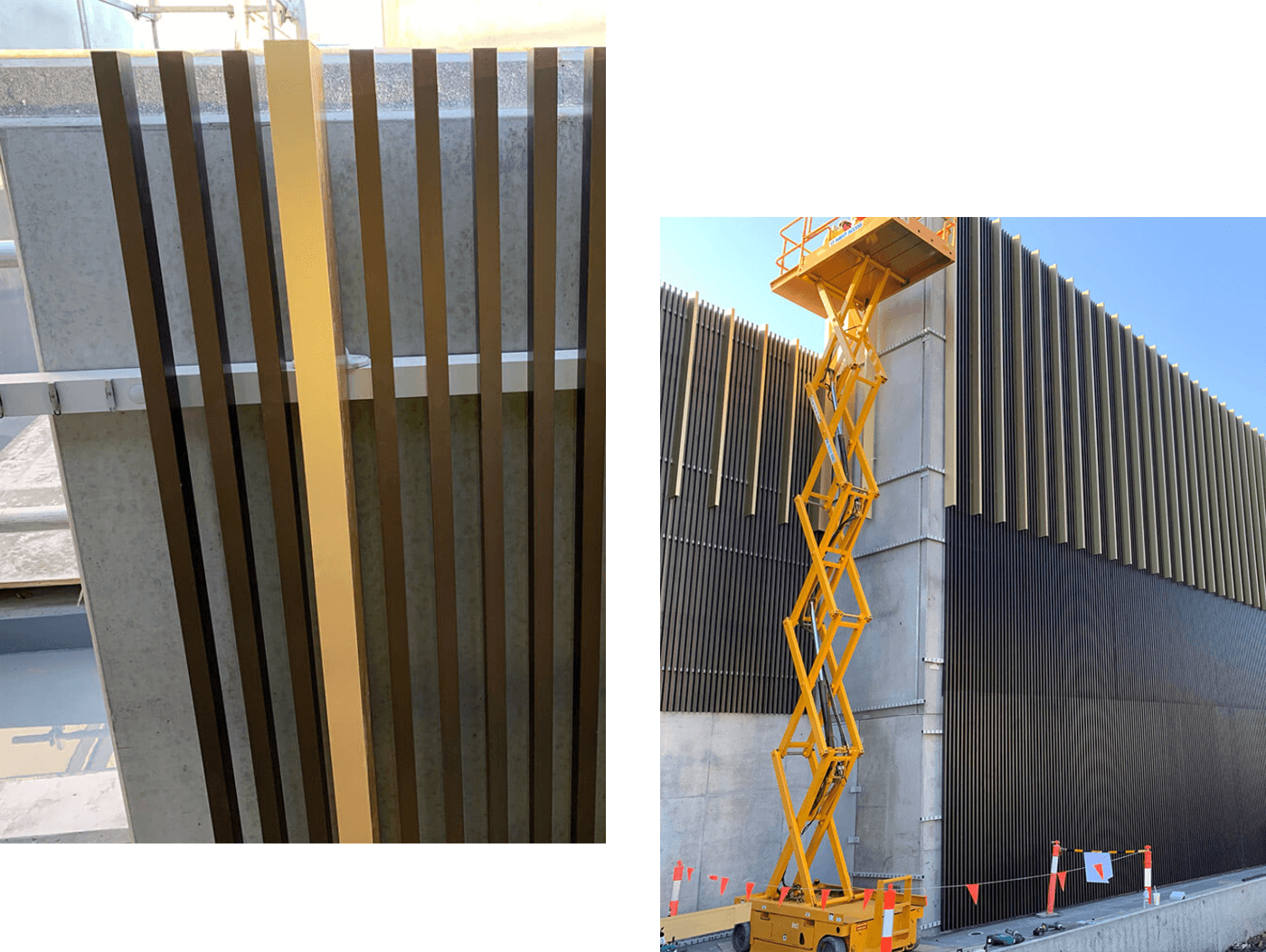

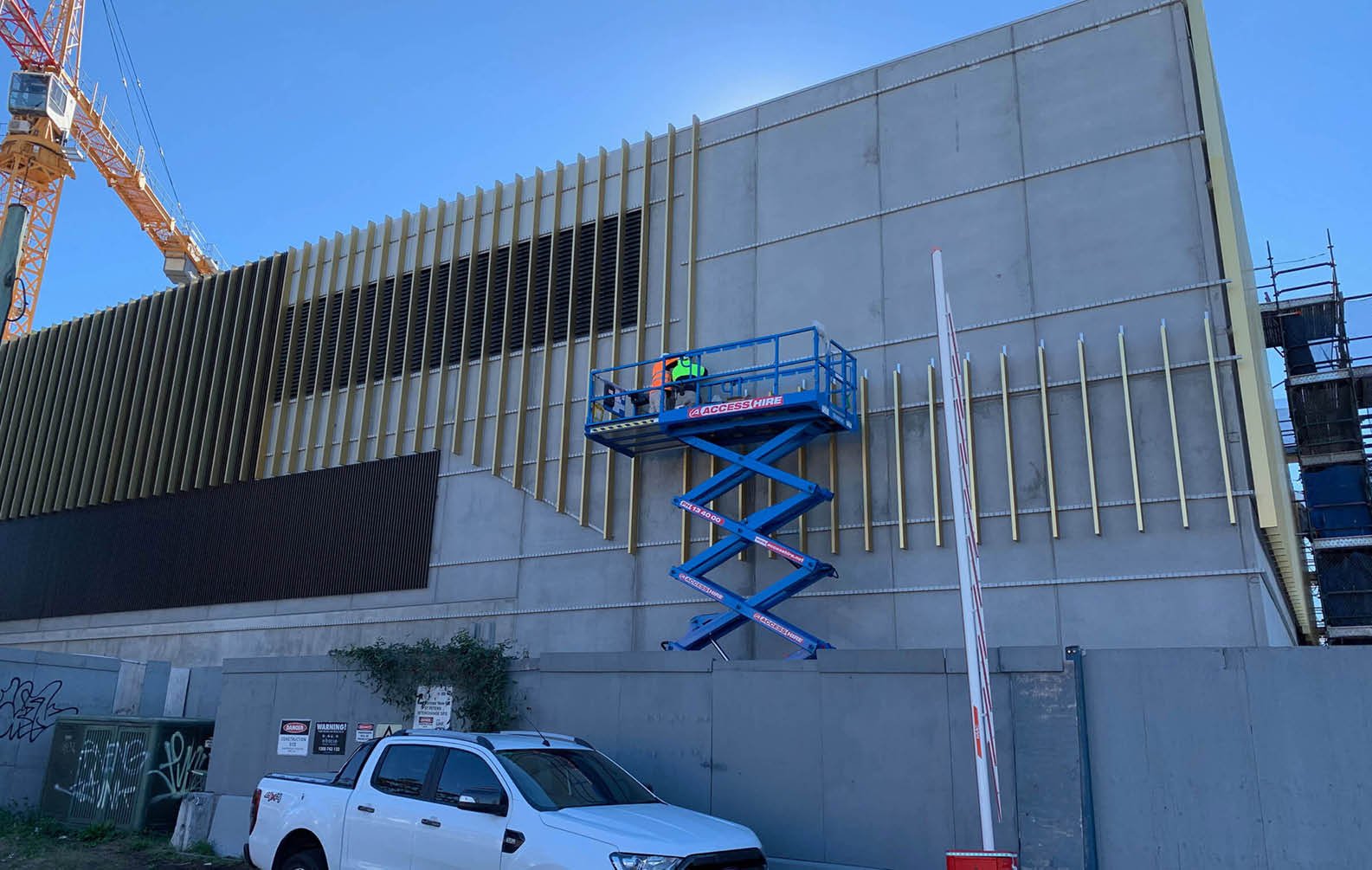

Sculptform supplied and installed the ventilation facility façade and supplied the veil installation. The track on the ventilation facility was prepared prior to delivery to site with the railing pre-fixed with brackets to allow for swift installation. By engaging us in a supply and install contract for the ventilation facility, the main contractor CPB Dragados Samsung Joint Venture (CDSJV), ensured a fast and accurate installation from our expert installation teams who work closely with our product team to develop installation methods to minimise site time.



M8 Westconnex Sculptform
M8 Westconnex Sculptform
M8 Westconnex Sculptform
Specification Details - Ventilation Facility
Product Sculptform Aluminium Click-on Battens and Facade Blades
Batten/Blade Sizes 32x60mm Click-on Battens, 50x200mm Facade Blades
Material Aluminium
Finish Anodised - Soverign Gold and Jamaican Chocolate
Gap 48,80,150mm
Mounting Track/Rail Type Custom 50x50 Rail Solution
Acoustic Backing No
M8 Westconnex Sculptform
M8 Westconnex Sculptform

Project Summary

Architect

Hassell

Completion Date

2020

Builder

CPB Dragados Samsung Joint Venture (CDSJV)

Photographer

Guy Wilkinson

Location

Sydney, NSW

Sector

Transport
