Velo Facades Tech Specs

This page includes comprehensive technical information on our Velo Facades system. To find specific data, use the menu on the right.

collapse section
expand section
Profiles and Sizes
The Velo system is available in the following cladding board sizes.

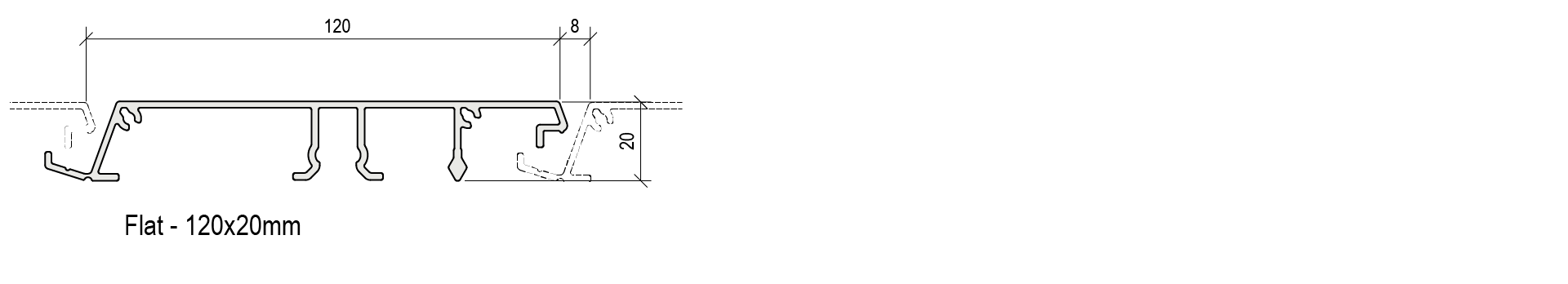

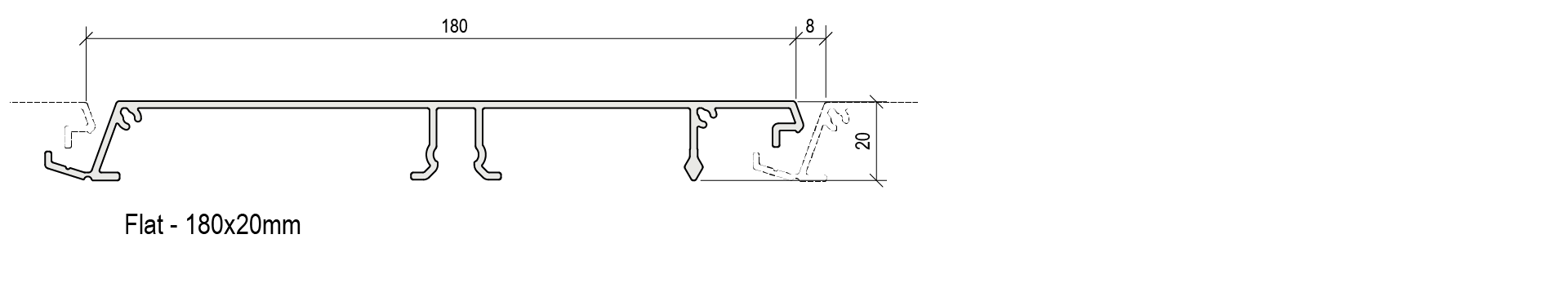

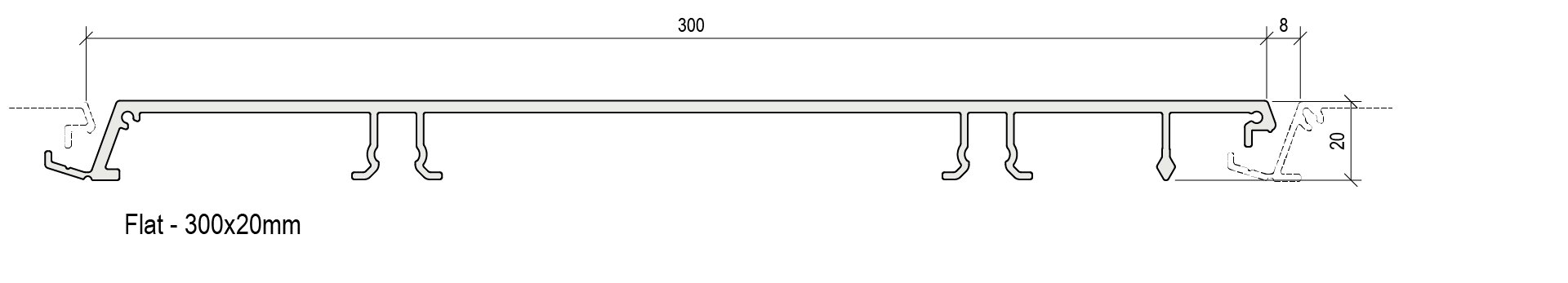

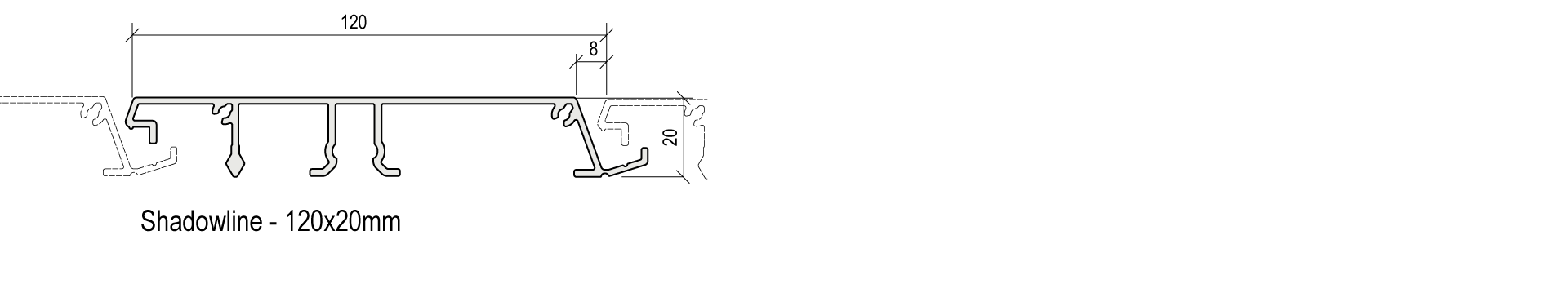

Cladding Profiles and Sizes

Finishes

Colours have been reproduced as accurately as possible, we recommend that you request product samples before making your final selection.

Please note: Lead times for product samples vary from 1-3 weeks for finishes depending on colour selected. Colour swatches are available for urgent requests. Please contact us for more information.

Wood Finish

*Our Wood Finish Aluminium – Select colours are available while stocks last.

Powder coat

Selection of powder coat Dulux colours shown below. View the full range here.
We also offer Interpon powder coat colour range. View the full range here.

Interior only Interior / exterior
Wood Finish Aluminium

Interior / exterior
American Oak
Interior / exterior
Australian Ash
Interior / exterior
Coffs Blackbutt
Interior / exterior
Grey Gum
Interior / exterior
Northern Spotted Gum
Interior / exterior
Wood Finish Whitewash Oak Whitewash Oak
Sculptform - Dark Gold Anodised

Interior / exterior
Sculptform Anodised Silver Silver
Interior / exterior
Sculptform Pale Bronze Pale Bronze
Interior / exterior
Sculptform Light Bronze Light Bronze
Interior / exterior
Sculptform Gold Light Light Gold
Interior / exterior
Sculptform Gold Medium Medium Gold
Interior / exterior
Sculptform - Dark Gold Dark Gold
Interior / exterior
Sculptform Antique Gold Antique Gold
Interior / exterior
Sculptform - Bronze Medium Standard Bronze
Interior / exterior
Sculptform Bronze Medium Medium Bronze
Interior / exterior
Sculptform Dark Bronze Dark Bronze
Interior / exterior
Sculptform - Anodised Black Black
architectural cladding Powdercoat - Duralloy

Interior / exterior
architectural cladding Bright White - 27284636
Interior / exterior
architectural cladding Shoji White - 27284682
Interior / exterior
timber ceiling cladding White Birch - 27237131
Interior / exterior
Shou Sugi Ban Classic Cream - 2722265M
Interior / exterior
timber ceiling cladding Rivergum Beige - 27236991
Interior / exterior
Shou Sugi Ban Evening Haze - 2723055S
Interior / exterior
vertical timber screen Paperbark - 2723174M
Interior / exterior
tongue and groove cladding Stone Beige - 27232538
Interior / exterior
vertical timber screen Dune - 2727558M
Interior / exterior
soffit ceiling Cove - 2726250S
Interior / exterior
Shou Sugi Ban Surfmist - 2722266M
Interior Only
tongue and groove cladding Grey Nurse - 2727863G
Interior / exterior
timber ceiling cladding Oyster - 27236858
Interior / exterior
architectural cladding Shale Grey - 27283246
Interior / exterior
tongue and groove cladding Apo Grey - 27232786
Interior / exterior
tongue and groove cladding Stone Grey - 27278126
Interior / exterior
vertical timber screen Windspray - 2727256S
Interior / exterior
Shou Sugi Ban Gully - 2728233S
Interior / exterior
tongue and groove cladding Jasper - 2728122S
Interior / exterior
tongue and groove cladding Hammersly Brown - 27284657
Interior / exterior
architectural cladding Anotec Mid Bronze - 27251014
Interior / exterior
Shou Sugi Ban Wallaby - 2727866S
Interior / exterior
Shou Sugi Ban Basalt - 2727865M
Interior / exterior
timber ceiling cladding Olde Pewter - 27250243
Interior / exterior
vertical timber screen Iron Stone - 2727864M
Interior / exterior
timber ceiling cladding Notre Dame - 27236672
Interior / exterior
vertical timber screen Woodland Grey - 2727197M
Interior / exterior
vertical timber screen Berry Grey - 27288362
Interior / exterior
tongue and groove cladding Monument - 2729067S
Interior / exterior
tongue and groove cladding Charcoal - 2729229M
Interior / exterior
Shou Sugi Ban Black - 2729090G
Interior / exterior
Shou Sugi Ban Mangrove - 2726473S
Interior Only
pale eucalyptus matt duralloy Pale Eucalypt - 2726474M
Interior / exterior
architectural cladding Cottage Green - 27284219
Interior / exterior
vertical timber screen Deep Brunswick Green - 2726134G
Interior / exterior
timber ceiling cladding Wedgewood - 27250279
Interior / exterior
architectural cladding Blue Ridge - 27288480
Interior / exterior
soffit ceiling Deep Ocean - 2725422M
Interior / exterior
vertical timber screen Manor Red - 2724134S
Interior / exterior
Shou Sugi Ban Terrain - 2728232S
Powdercoat - Precious

Interior / exterior
facade architecture Mother of Pearl - 97184678
Interior / exterior
soffit ceiling Natural Pearl - 97189119
Interior / exterior
soffit ceiling Citi Pearl - 97188471
Interior / exterior
facade architecture Metropolis Silver Glow Pearl - 97184623
Interior / exterior
timber feature wall Silver Kinetic Pearl - 9717043K
Interior / exterior
facade architecture Pewter Pearl - 97188202
Interior / exterior
Prosecco Pearl - 9718417Q
Interior Only
facade architecture Metropolis Storm Pearl - 97184684
Interior / exterior
Bright Gold Pearl - 9718420Q
Interior / exterior
Copper Pearl - 9714137Q
Interior / exterior
Anodic Bronze Pearl - 9718416Q
Interior / exterior
facade architecture Metropolis Bronze Pearl - 97159003
Interior / exterior
facade architecture Steel Pearl - 97157127
Interior / exterior
facade architecture Onyx Pearl - 97152052
Interior / exterior
facade architecture Charcoal Metallic Pearl - 97118796
timber battens Powdercoat - Alphatec

Interior Only
interior wall cladding Lemon Yellow - 98432120
Interior Only
Safety Yellow - 9842015G
Interior Only
interior wall cladding Yellow Gold - 98433617
Interior Only
timber battens Orange X15 - 98451439
Interior Only
timber battens Signal Red - 98450735
Interior Only
interior wall cladding Flame Red - 98419959
Interior Only
interior wall cladding Blaze Blue - 98419941
Interior Only
interior wall cladding French Blue - 98432725
Interior Only
timber battens Pommel Blue - 98451034
Interior Only
interior wall cladding Space Blue - 98419990
Interior Only
timber battens Dark Violet - 98451926
Interior Only
timber battens Mistletoe - 98451040
ceiling styles and designs Powdercoat - Duratec

Interior / exterior
ceiling styles and designs Eternity Linen Pearl - 90T1138S
Interior / exterior
interior wall cladding Eternity Citi Silver Pearl - 90T7024M
Interior / exterior
Wood Cladding Eternity Chain Pearl - 90T7761M
Interior / exterior
Wood Cladding Eternity Pewter Pearl - 90T7764S
Interior / exterior
timber wall cladding Eternity Nickel Pearl - 90T7763M
Interior / exterior
interior wall cladding Eternity Copper Metallic - 91T7183M
Interior Only
ceiling styles and designs Eternity Champagne - 91T3059M
Interior / exterior
timber wall cladding Eternity Bronze Pearl - 91T8356S
Interior Only
timber feature wall Eternity Titanium Pearl - 91T7765S
Interior / exterior
timber wall cladding Eternity Charcoal Pearl - 90T7762S
Interior / exterior
interior wall cladding Appliance White - 90Z1341S
Interior / exterior
interior wall cladding Talc - 90Z1344S
Interior / exterior
Wood Cladding Lunar Grey - 90Z7769M
Interior / exterior
interior wall cladding Silver Grey - 90Z7770M
Interior / exterior
Wood Cladding Grey - 90Z7768S
Interior / exterior
interior wall cladding Timberland - 90Z7315S
Interior / exterior
timber wall cladding Charcoal - 90Z7766S
Interior / exterior
interior wall cladding Dark Grey - 90Z7767M
Interior / exterior
interior wall cladding Monument - 90Z7307S
Interior / exterior
Wood Cladding Black - 90Z9202M
Interior / exterior
timber wall cladding Lunar Eclipse - 90Z9203S
Interior / exterior
ceiling styles and designs Reef - 90N5011G
Interior / exterior
ceiling styles and designs Moonlight - 90N2004S
Interior / exterior
interior wall cladding Leaf - 90N6167S
Interior / exterior
ceiling styles and designs Sunshine - 90N2084G
Interior / exterior
interior wall cladding Evergreen - 90N6005S
Interior / exterior
Wood Cladding Storm - 90N5365S
Interior / exterior
ceiling styles and designs Desert - 90N4227S
Mounting Track Options
Mounting Tracks come to site with factory-fitted clips for speed and accuracy.

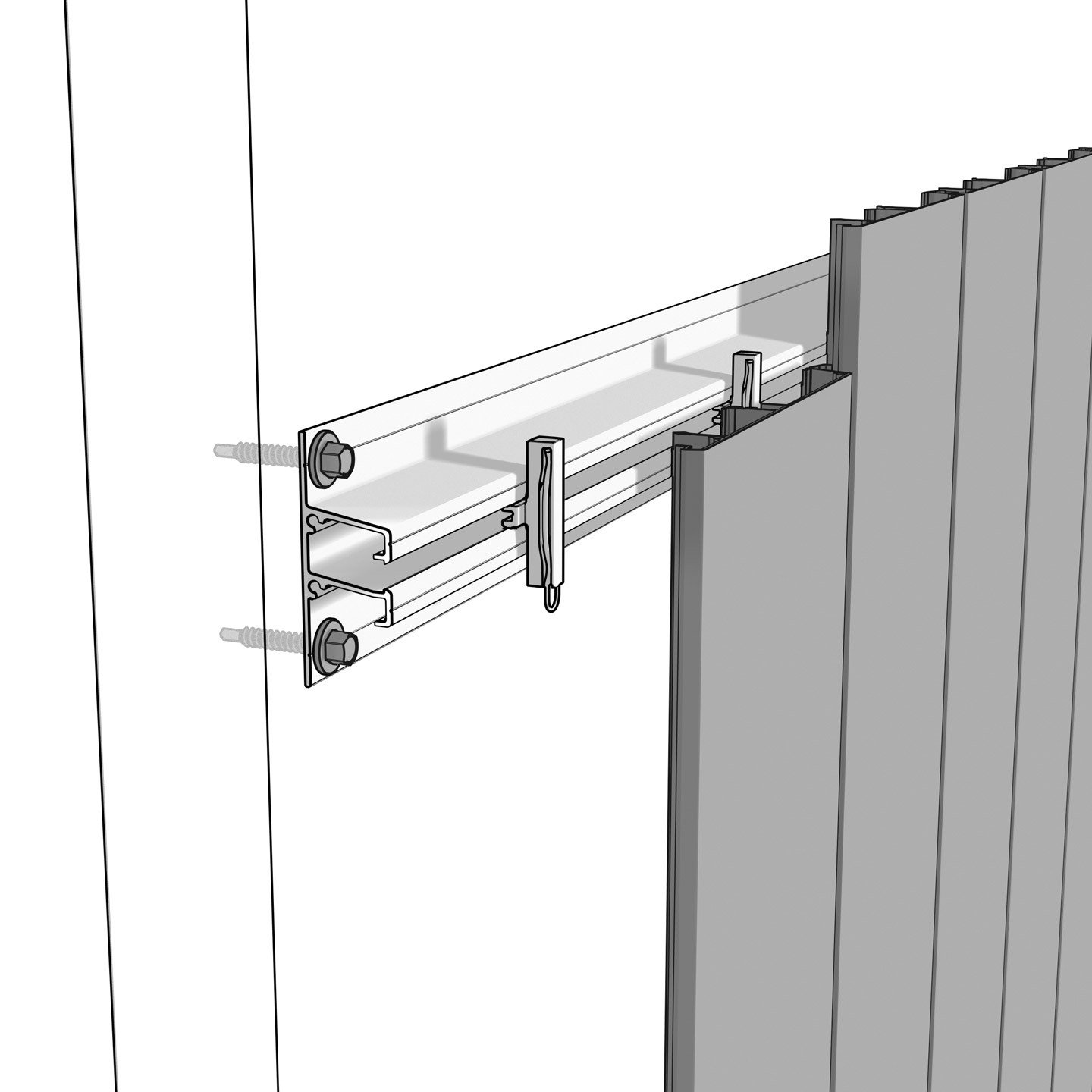

Straight 66x25mm

Designed to allow water drainage. Features factory fitted clips. The track can be directly fixed or used in combination with the offset bracket.

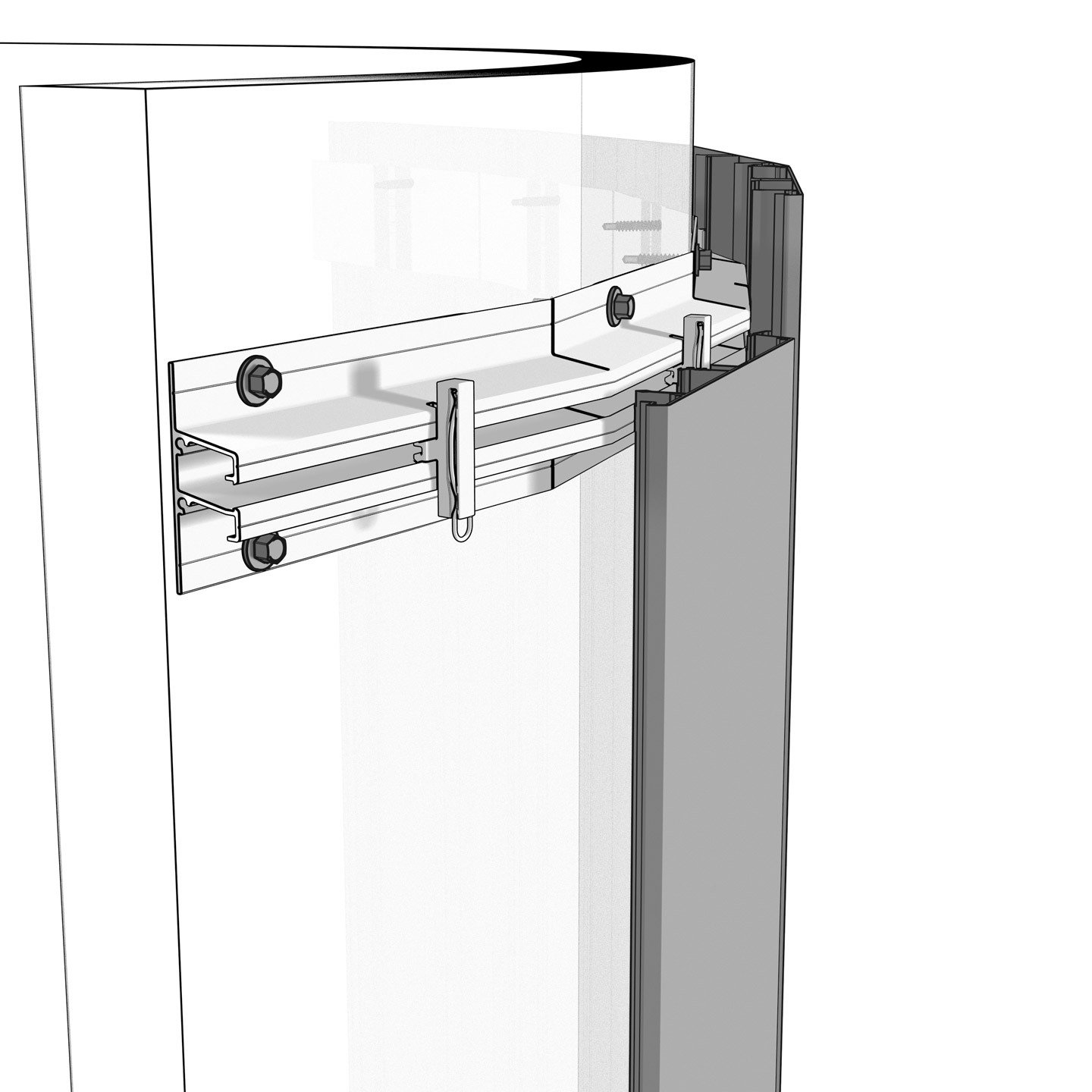

Curved 66x25mm

The Curved Track has a series of cuts in the back of it to allow it to flex and follow a curved contour.

Velo Facades Curved Track

Convex/Concave Minimum Radius: (Radius to top of track)
120mm 500
180mm 750
300mm 1250
Ventilated Cavity Options
Mounting Tracks Only

Mounting Tracks (25mm) fixed to substrate where no external insulation is required.

Velo Facades Cavity Track Only



Offset Bracket for External Insulation

Mounting Tracks offset from substrate to allow for an external insulation layer.

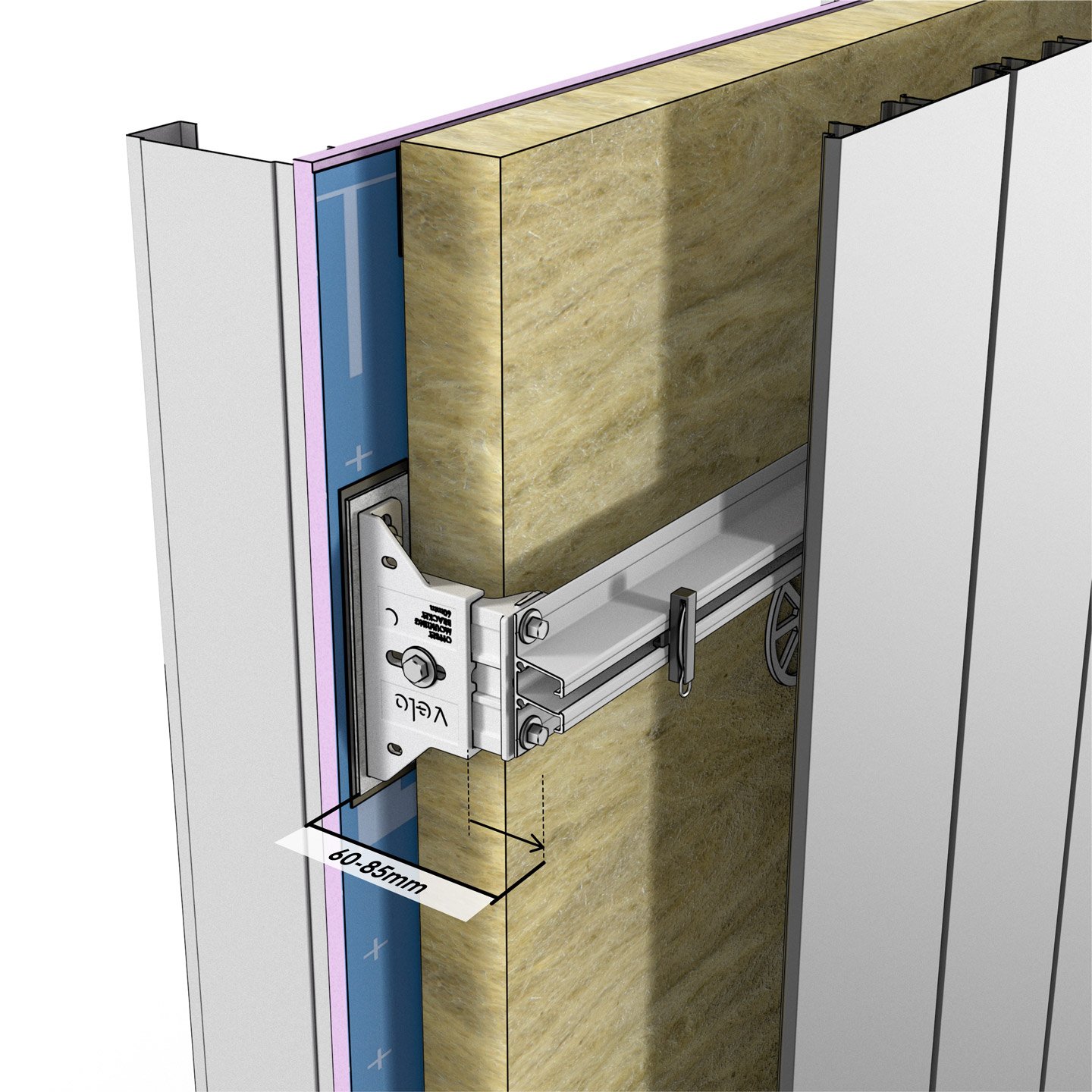

Velo Facades 60mm Bracket

60mm Offset Bracket

60mm Offset Bracket has an additional 25mm of adjustment, accommodating 25mm, 38mm and 50mm of external insulation.

Mounting Tracks offset from substrate to allow for an external insulation layer.

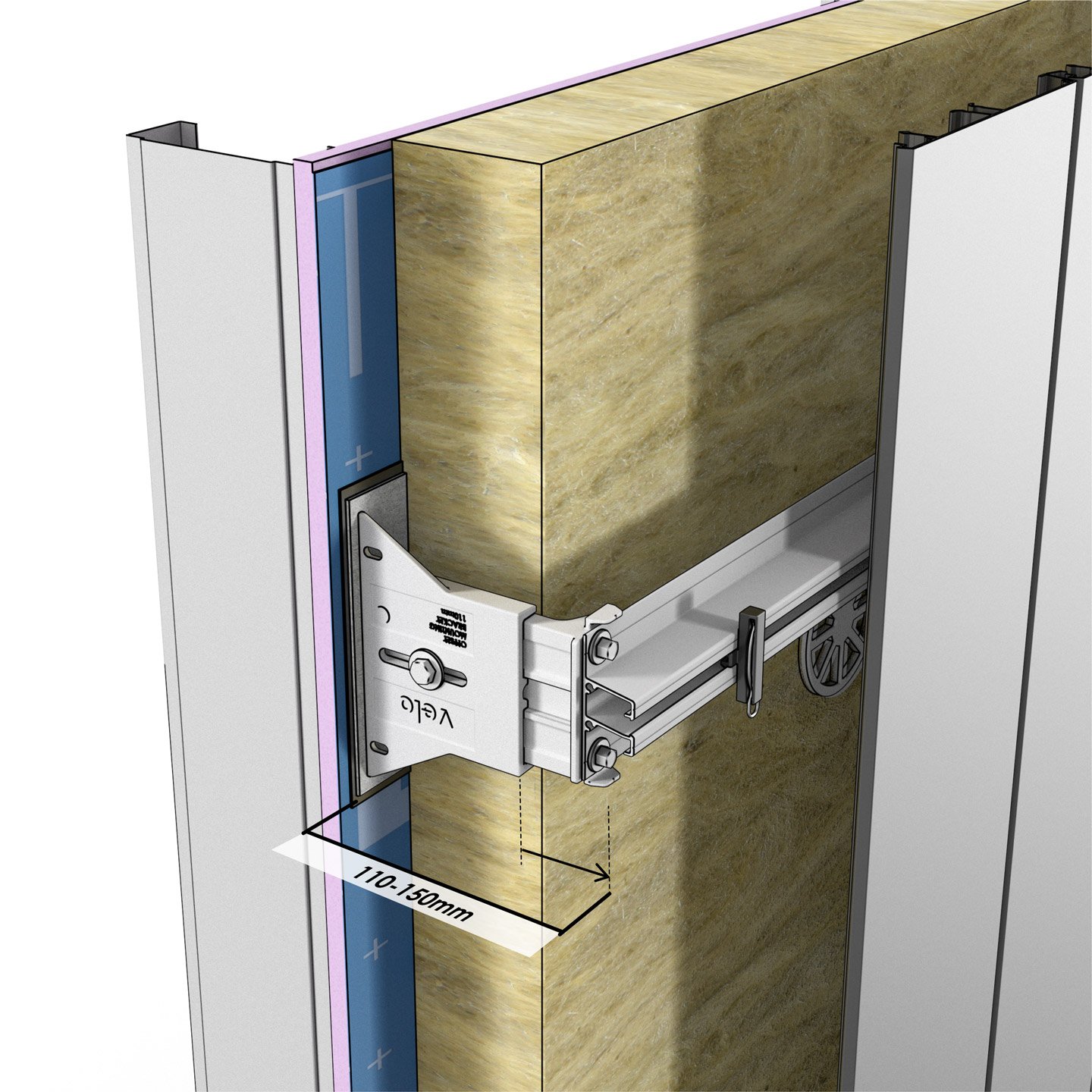

Velo Facades 110mm Bracket

110mm Offset Bracket

110mm Offset Bracket has an additional 40mm of adjustment, to accommodate 75mm and 100mm thick external insulation.

Total Build Out Examples
Stud Offset Bracket Total Buildout
90mm 60mm 220mm
90mm 110mm 270mm
140mm 60mm 270mm
140mm 110mm 320mm
Thermal Break

The SLS Pad is constructed from 8mm thick, low-density fiberglass coated with fluoropolymer. With an R-Value of 0.21 m²K/W, it is specifically engineered to provide a thermal break between cladding and steel framing.

Pad size options
  • 50x140mm – for Offset Brackets
  • 50x80mm – for Mounting Tracks fixed to substrate
External Insulation Thickness Options

ROCKWOOL Rainscreen Insulation, a stone wool product, is designed specifically for ventilated cladding systems, to reduce the thermal bridging effect through the studs, offering superior thermal performance. It’s non-combustible and moisture repellent ensuring the structure’s breathability and dryness. The panels come in 1200 mm x 600 mm with thicknesses from 25mm to 100mm. See table below.

Insulation Thickness Offset Bracket Required R Value
25mm 60mm 0.75
38mm 60mm 1.10
50mm 60mm 1.45
75mm 110mm 2.20
100mm 110mm 2.95
Weather Membrane Types
The Velo rainscreen facade system has the following membrane options depending on the performance requirements of the project:

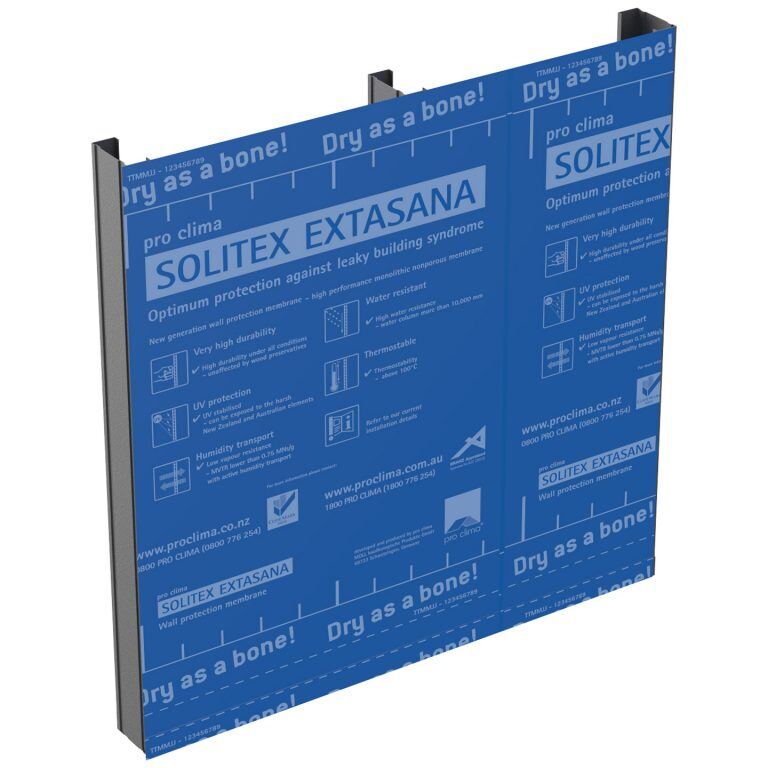

Flexible Proclima Membrane
  • Suitable for non-externally insulated build outs and up to 1.8kPa SLS (Serviceability Limit State)
  • Class 4 permeability

Velo Facades Flexible Proclima Membrane

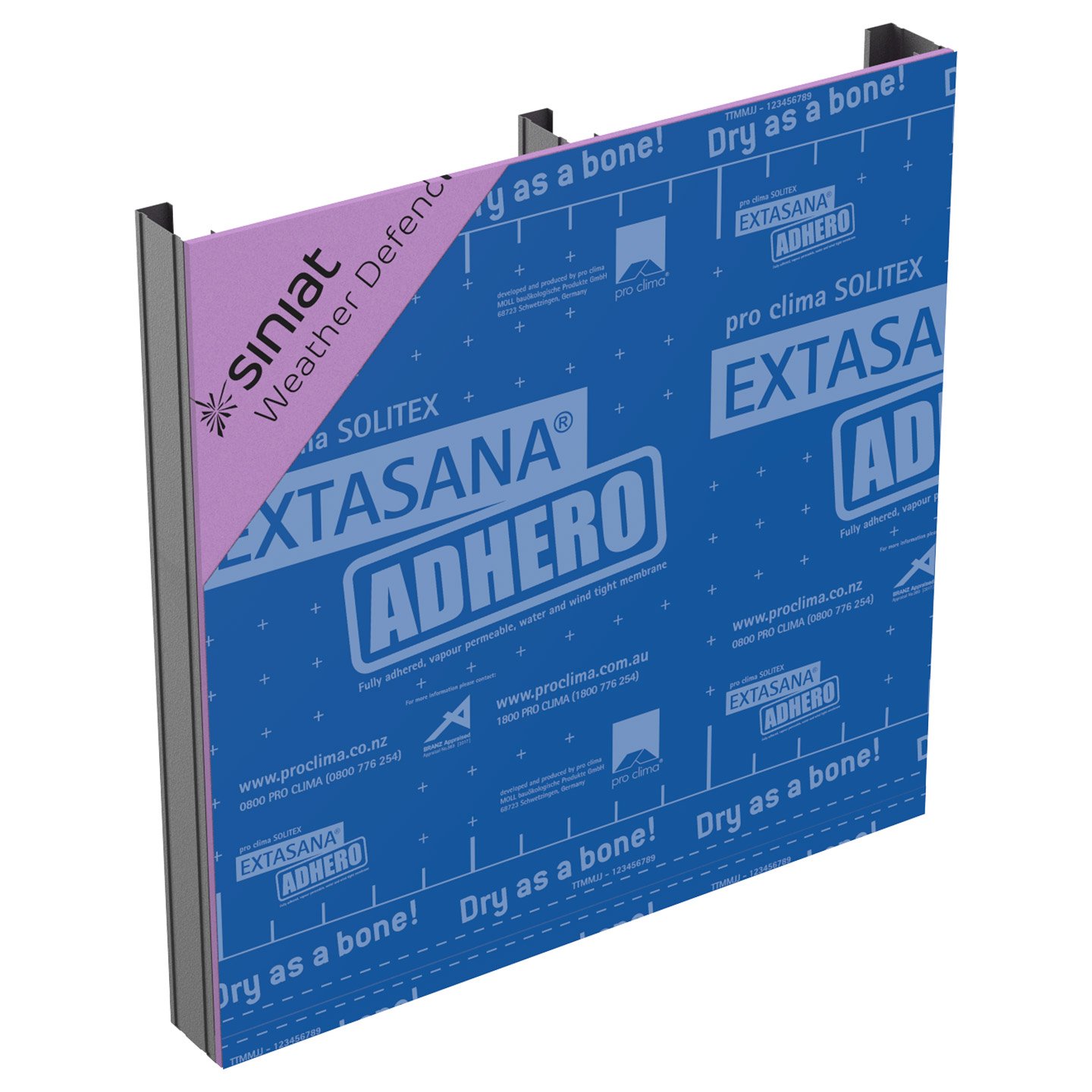

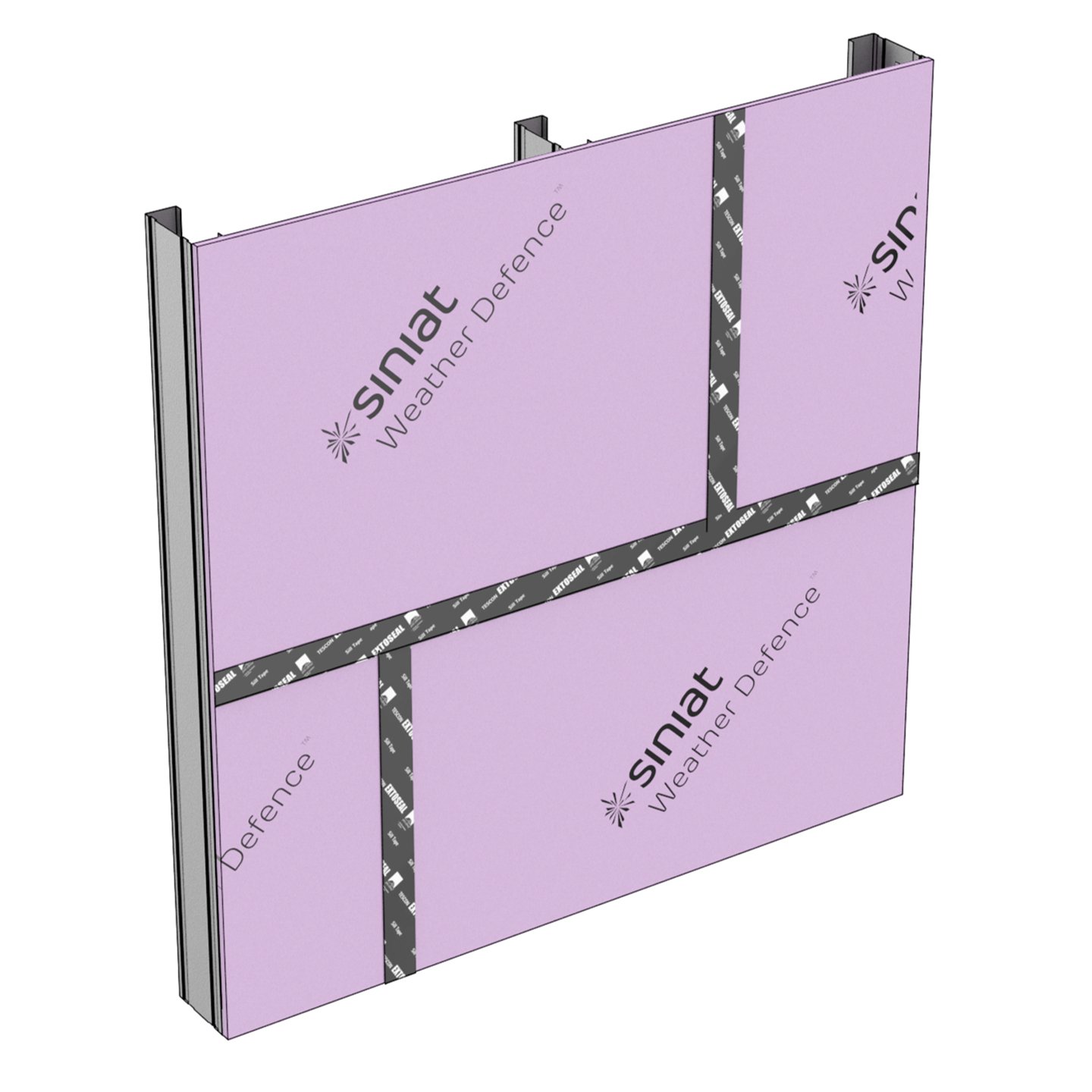

Rigid Siniat Weather Defence (13mm Gypsum Board)
  • Suitable for externally insulated build outs and up to 4.12 kPa (Serviceability Limit State)
  • Class 4 permeability

Velo Facades Rigid Siniat Weather Defence

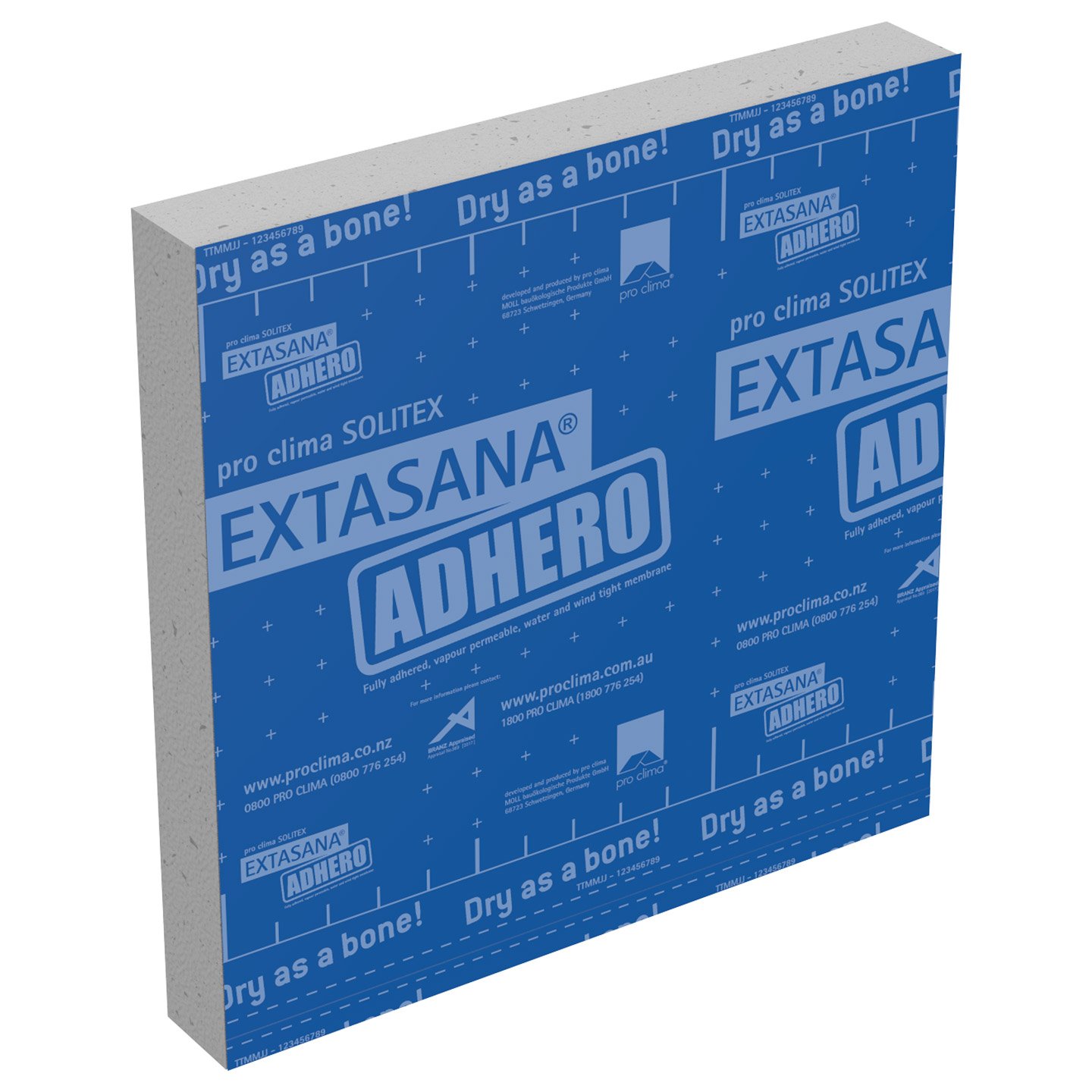

Rigid Siniat Weather Defence with continuous ‘peel-and-stick’ Proclima membrane
  • Suitable for externally insulated build outs and up to 4.12 kPa SLS (Serviceability Limit State)
  • Class 3 Permeability.

Velo Facades Rigid Siniat Weather Defence



‘Peel-and-Stick’ only for continuous substrates like concrete.

Velo Facades

Fastener types and Corrosion Zones

The degree of corrosiveness is defined by ISO 9223 and effects the fixings used on the project. The categories are classed from C1 to CX, and typically, a cladding system used externally would be classed between C3 to CX.

Fixing Types
Substrate ISO 9223 Class Fastener Types
Timber C1 – C3 14-10 x 40mm Type 17 galvanised
C4 and above 14-10 x 35mm Type 17 Stainless Steel Pit Screws
Steel C1 – C3 14-10x50mm Hex Washer Class Self Drilling Screws
C4 and above 14-14 x 50mm Hex Washer SD Screws Bimetal 316 S/S
Concrete C1 – C3 XSAH-Z Concrete Screw-Anchor Hex Zinc Seismic
C4 and above SAH-S Stainless Concrete Screw-Anchors Hex Flange 316 (A4)



Example Specification

Use the following table as a guide when creating your specification for Sculptform Velo Facades. The details on this page will guide you through the range of finishes and profile sizes we have available.

Product Sculptform Velo Facades
Material Aluminium
Cladding Profile/s 180 x 20mm
Finish Wood Finish Aluminium – Spotted Gum
Mounting Track 66x25mm Velo Track
Ventilated Cavity Type 60mm Offset bracket with 25mm Mounting Track
Rockwool Insulation Thickness – External
50mm
Membrane Type  Siniat Weather Defence with Proclima Adhero Peel-and-Stick (Rigid)
Substrate Type (for fixings)  Steel Framing
Corrosion Zone  C3
Revit Files

The complete package of Revit files for Sculptform’s Velo facade system can be downloaded below.

Download Revit package

Compliance
Velo Facades has been tested for your compliance needs. Learn more and download your required certification below.
Group Rating

Sculptform Aluminium achieves a Group 1 rating as per Section 9 (n) of AS 5637.1-2015, the determination of the group number is based on the AS/NZS 3837-1998 test, and is deemed valid in the cone calorimeter for the assignment of National Construction Code (NCC) group number.

Download Certificates

Wood Finish Aluminium – AS/NZS 3837

Powder coat – AS/NZS 3837     ANODISED – AS/NZS 3837



Combustability

Sculptform’s Aluminium is deemed non-combustible according to the test criteria specified in Clause 3.4 of AS 1530.1-1994.

According to the NCC, for a product to be deemed non-combustible the Spread of Flame Index needs to be 0.

Download Certificates

aluminium – AS 1530.1     Powder coat – AS/NZS 1530.3    Wood Finish Aluminium – AS/NZS 1530.3



Bushfire Attack Level (BAL)

Aluminium, deemed non-combustible per AS 1530.1 and AS 1530.3, is suitable for BAL 12.5 and BAL 19 without any additional inclusions in reference to AS 3959.

For BAL 29, 40 and FZ, compliancy can be achieved through meeting the FRL requirements in clause 9.4.1c of AS 3959. Contact us for more information.

Sustainability

Sculptform Declare Labels

Sculptform is proud to offer products with Declare Labels, a transparency initiative that helps architects and designers make informed choices about materials. Declare Labels provide clear, accessible information on the ingredients used in our products, ensuring they meet strict sustainability standards. By choosing Sculptform, our customers can confidently specify materials that contribute to healthier, eco-friendly building environments, supporting their sustainability goals and aligning with green building certifications like LEED and WELL.

view details

Our declaration is LBC RED LIST APPROVED.
This is defined as: products disclose a minimum of 99% of ingredients present in the final product and meet the LBC Red List Imperative requirements through one or more approved exceptions.

Weatherproofing

The Velo rainscreen facade system is designed to have layers of redundancy, with each element of the buildout contributing to weather tightness, water resistance and condensate control in the wall cavity. With the outer aluminium cladding repelling and removing most of the water through drainage, supported by a ventilated cavity for pressure equalisation and drying in combination with a weather resistant membrane provides the ultimate in weather defence. Tested to AS 4284.

Click here to download full tech datasheet.

Orientation

Cladding boards are only suitable for vertical orientation – contact us for further options

Lengths

Boards are available in lengths of up to 6m.

Thermal Expansion

Our cladding boards are 100% aluminium, with the system designed to accommodate thermal expansion. This expansion occurs over the length of the board, with the following data being calculated as a guide. These examples of thermal expansion are based on cladding boards of 4m and 6m being installed in winter at 0°C and then heated to 50°C in summer.

Board Length Expansion (in board length)
4m 4.6mm
6m 6.9mm
