Click-on Battens

Click-on Battens is a concealed fix linear feature battening system for acoustic walls and ceilings. The system is comprised of profiled timber or aluminium battens, mounting tracks with factory fitted clips and acoustic backing.

How it works

Not your typical off the shelf product, our Click-on Batten system is a highly customisable, proprietary acoustic batten system. Famous for the unique patented clip connection, our Click-on Battens make installation fast and easy using either timber or aluminium battens in a range of sizes and profiles.

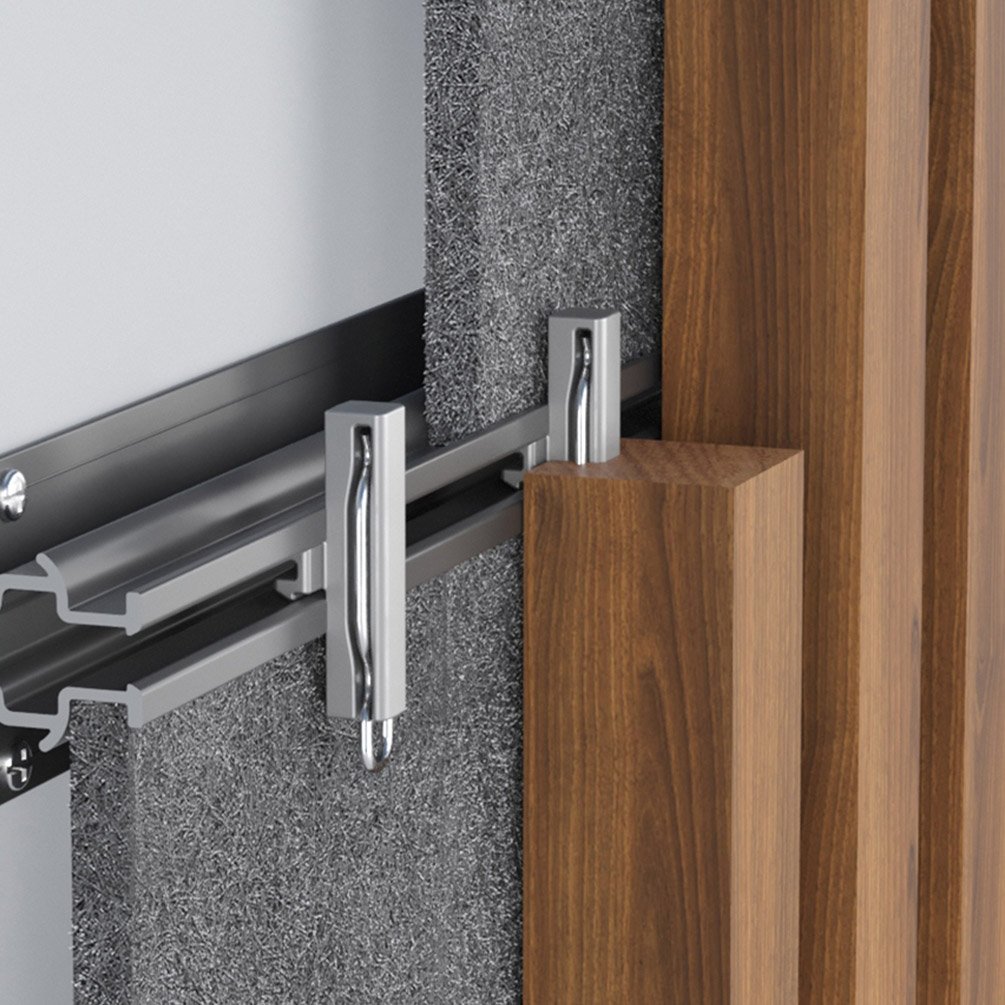

A specially designed groove in the back of the battens serves as the interface between the batten and clip. These clips are provided pre-fixed to mounting tracks according to your specification, which are quickly installed on-site before the battens are clicked into place.

Unique click-on connection

Our patented Click-on connection produces a solid click when the battens engage with the mounting track clips. This push-fit connection results in a fast installation with completely concealed fixings. Clips are factory fitted and pre-spaced to a mounting track, with a variety available to suit your application’s substrate.

The flexibility of our system allows for hatches and even hidden doors to be detailed without disturbing the linear textures of the feature wall or ceiling. The ends of battens are also covered, with a range of trims to suit.

488 Queen Street, Brisbane

Solid timber battens in a range of coatings

The texture, warmth and detail of natural timber brings so much value and beauty to a space, either on interiors or exteriors.

Click-on Battens can be crafted from our range of species, including American Oak, Australian Ash and Spotted Gum. Our variety of coatings also ensures you achieve the perfect finish for your design.

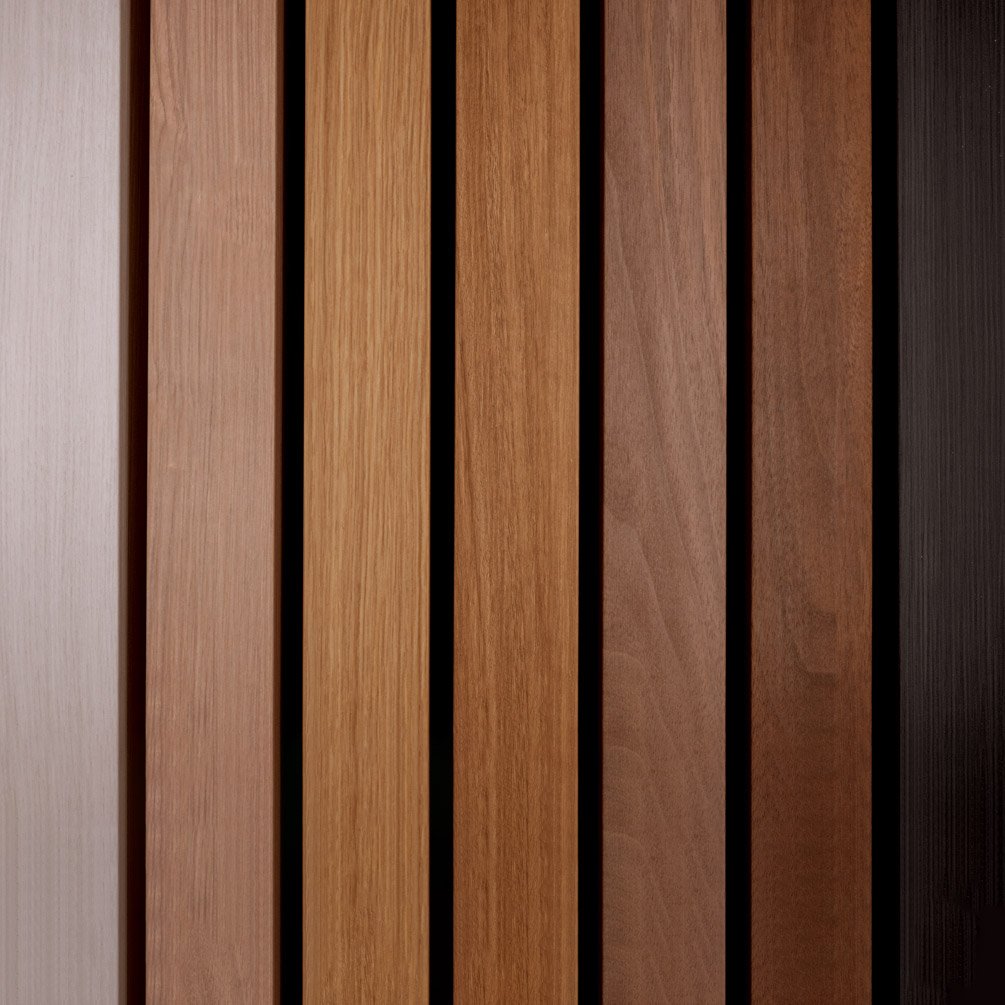

Realistic wood finish aluminium battens

We offer Wood Finish options across all aluminium batten profiles, providing a natural timber aesthetic while taking advantage of the strengths of aluminium, including Group 1 and non-combustible fire ratings.

Wood Finish is the most realistic fire-rated alternative to natural timber, requiring little to no maintenance. So you can spend more time enjoying the warmth and beauty of timber without the worry of maintaining it.

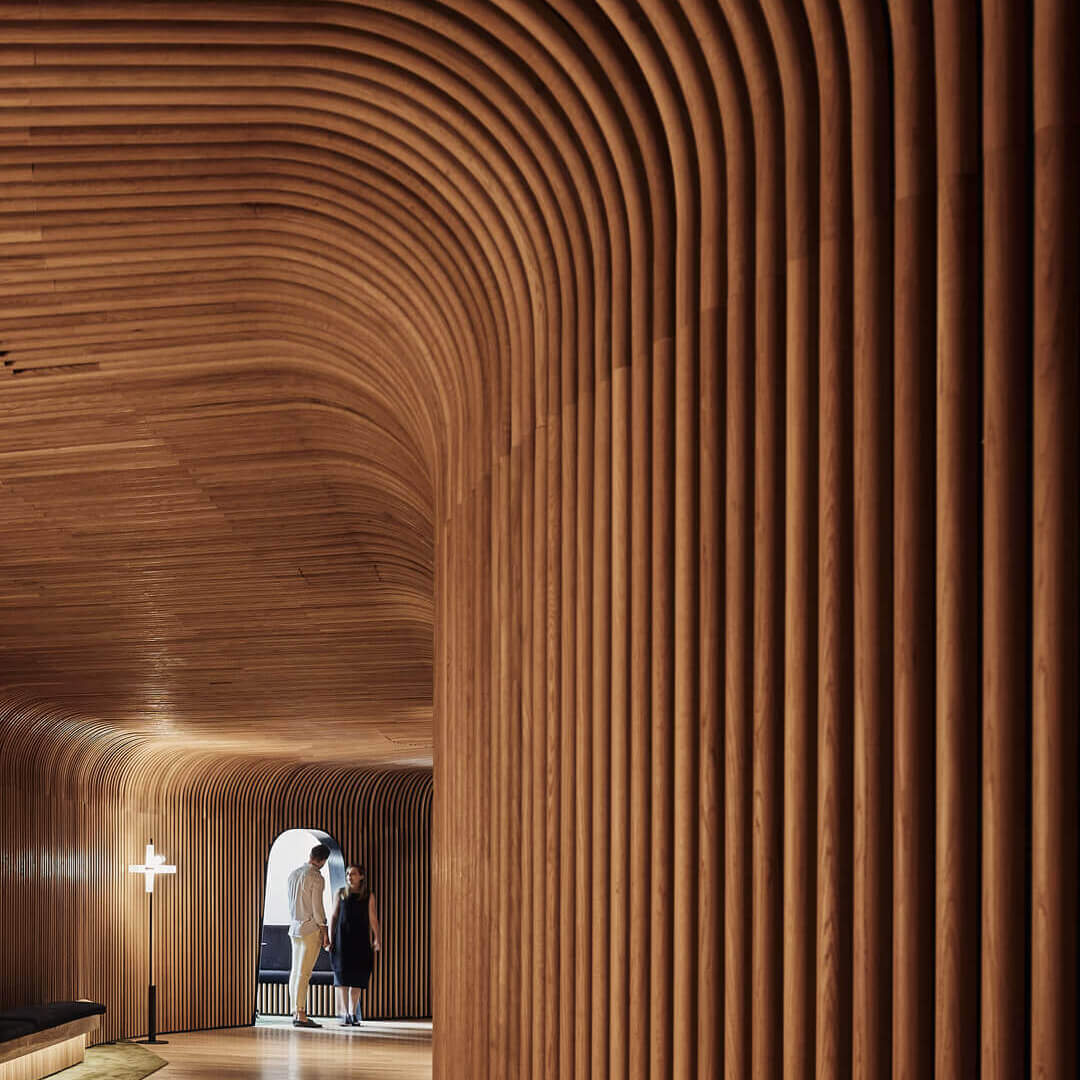

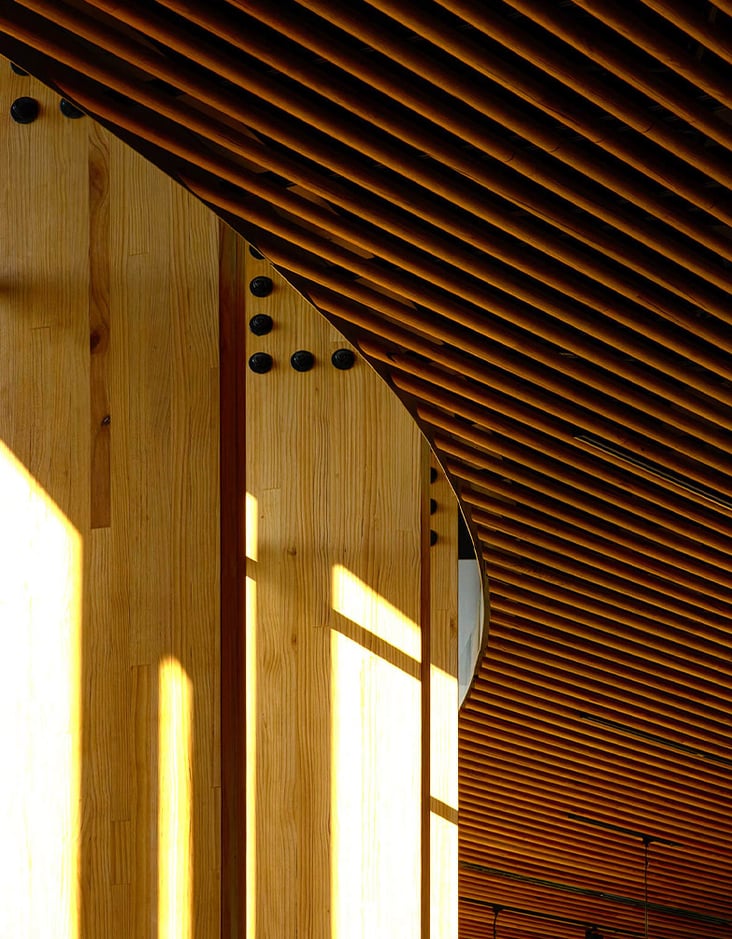

Curved Timber Steam bending

Create curved timber battens

Our curved timber integration into our Click-on Batten system combines a simple, fast installation with either of our curving options – Steam Bending and Kerfing.

Our curved timber manufacturing methods allow designers to create large scale curves in the beauty of natural timber. Seamless transitions between walls and ceilings provide a unique handcrafted aesthetic on a commercial scale. Our method provides a buildable, affordable solution for curved timber concepts.

A wide range of applications

Our system is extremely versatile and can be used in a variety of applications.
View application details

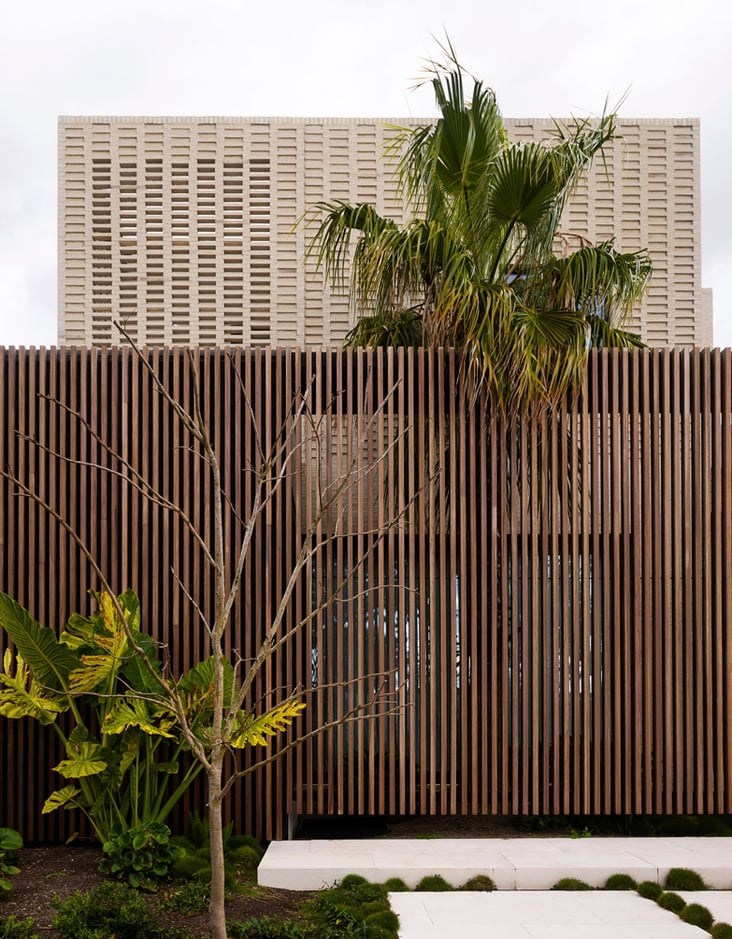

Facade

York Street Timber Facade

View all Facades
Ceiling

Buddle Findlay

View all Ceilings

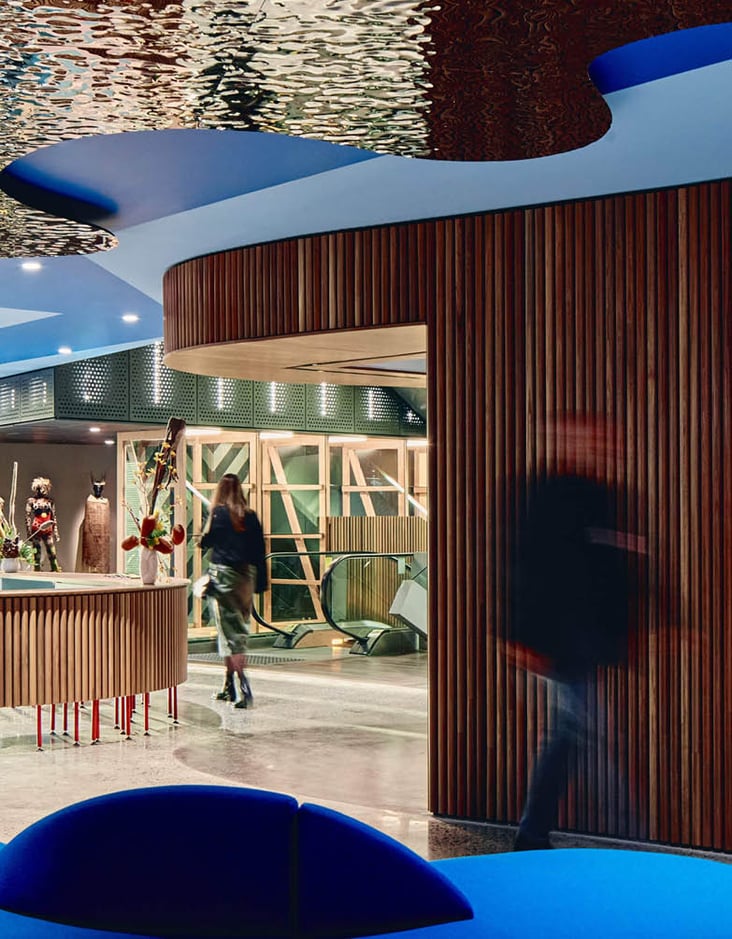

interior-wall Interior Wall

Melbourne Airport T2

View all Interior Walls

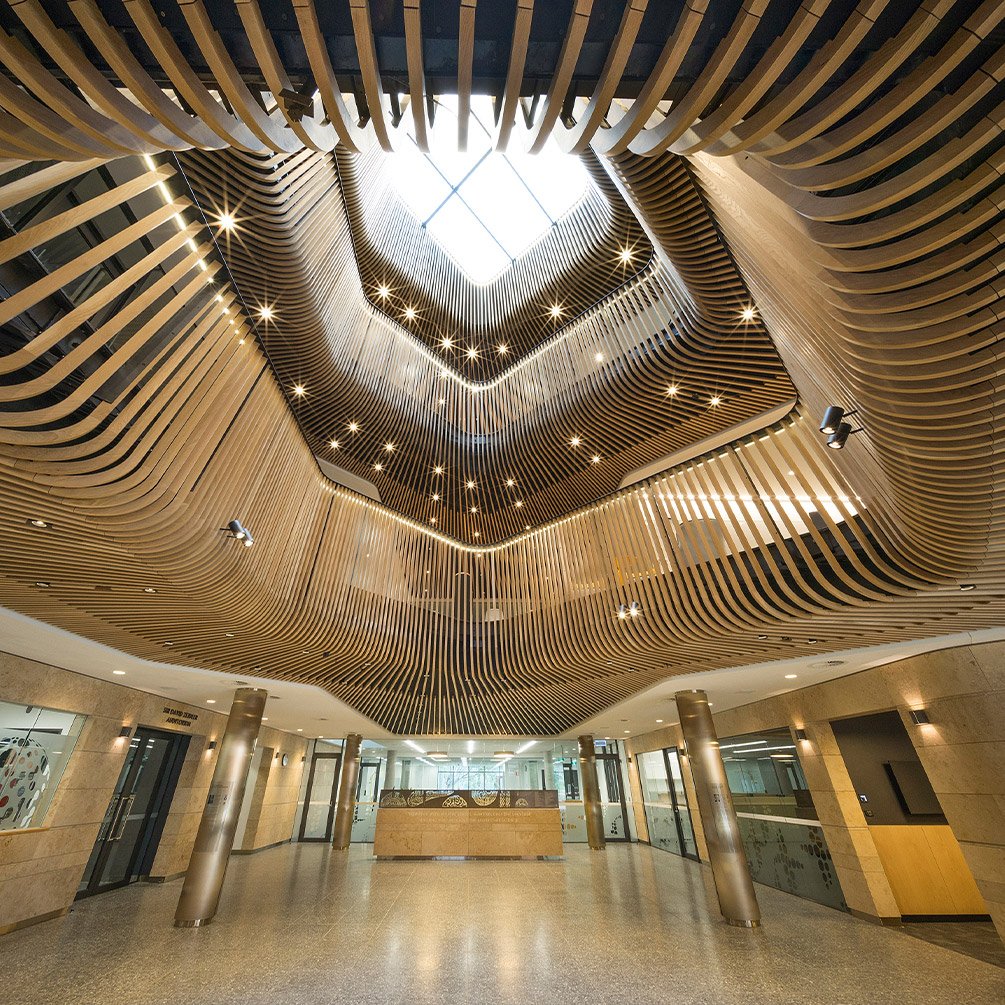

Curved Ceiling

20 Bond Street, Sydney

Curved timber ceiling View all Curved Ceilings
Soffit

FV by Peppers

FV Peppers Sculptform View all Soffits
Download our Inspirational eBook

5 Beautiful and Impressive uses for Timber Battens

Technical specifications

Find below the technical details for our Click-on Battens, including profiles and species/finishes for either timber,  aluminium or curved timber battens.

Timber Tech Specs.   Aluminium Tech Specs

Curved Timber Tech Specs

modern suspended ceiling

How to Price and Specify

Our Price & Spec application was created to streamline your specification and tendering process by providing real time pricing, specification data and CAD files for your custom sequence.

FAQ's

Can Click-on Battens be used externally?
Yes, the system and components are made from high durability and low corrosion metals. Batten materials and finishes have different durability ratings so it is important to check that the finish specified is externally rated.
What is the acoustic NRC of Click-on Battens?
The NRC (Noise Reduction Coefficient) of Click on Battens depends on the backing used and what is behind the system. If using the 7mm acoustic backing with a 90mm stud cavity behind, the rating will be around NRC 0.4, but if you put some additional 50mm acoustic batts in the cavity it brings the NRC up to about 0.93. You can calculate the acoustic rating of your specification on our Price & Spec tool.
How much do Click-on Battens cost?
As our system is full customisable, costs can be anywhere between $200m² to $600m² depending on the size, profiles, finish, spacing etc. Typically it would be around $350m². Use our online Price & Spec tool to receive a square meter quote instantly for your specification details.
Do Click-on Battens integrate into a suspended ceiling?
We have a specific Mounting Track and connector clip designed to integrate into standard suspended ceiling systems.
Can Click-on Battens be used as a free-standing screen?
Our Click-on Screens product is a better alternative if the battens are to be viewed from both sides. Using the same principal of a click-on system, it gives you the same fast and easy install that our Click-on Battens provide.
