Timber garage doors are no longer just functional access points. They are a defining feature of modern architecture and can transform the look of a property. In high-end residential projects, architects are increasingly choosing concealed timber garage doors for their clean lines, material continuity and premium appearance.
By selecting timber garage doors for your residential projects, you won't disrupt the overall look, rather, you’ll be ensuring the modern garage door detailing blends in perfectly with a product that offers both practical durability and sophisticated design.
Concealed or flush garage doors are designed to integrate perfectly with the surrounding facade. Unlike standard garage doors, which have visible tracks, frames or contrasting finishes, concealed doors are clad in the same material as the wall, with panel lines that align precisely.
Key differences include:
Standard garage doors: Visible hardware, sectional or roller styles, often contrasting in colour or texture
Concealed garage doors: Flush-mounted, hidden hardware, cladding-matched panels for a continuous facade design
This style is ideal for modern, minimalist and architect-designed homes where material consistency and clean lines are priorities.
Concealed garage doors are especially suited to modern architectural styles, think flat-roofed homes, minimalist builds and custom-designed properties.
They’re a go-to for:
Reinforced framing is essential for doors with solid timber cladding. Precise tolerances are required for flush mounting and there must be adequate wall cavity depth for tilt or pivot systems.
Material continuity is crucial. Match joint lines and grain direction. Choose durable species such as (e.g. Blackbutt, Spotted Gum) and allow for expansion gaps and concealed fixings.
Vertical and horizontal joints should align exactly with the façade cladding. Use digital modelling to ensure a consistent visual flow.
Modern garage door detailing should also support the home’s thermal envelope. In colder locations, you can cover insulated panels with architectural materials to meet both performance and aesthetic needs. These panels usually have polyurethane or polystyrene cores. To keep air from escaping, it's important to have weather seals at the thresholds, vertical jambs and head tracks, especially for garages that are next to living spaces that are climate-controlled.
For garages in dense urban environments, noise attenuation becomes critical. Solid-core panel construction and acoustic insulation layers help block external noise. Additionally, concealed mechanisms such as counterweight tilt systems reduce mechanical noise compared to standard roller doors. Incorporating perimeter seals and vibration-dampening hardware enhances acoustic performance.
A typical concealed garage door system includes:
Choosing the right garage door cladding materials is essential so that it works well and looks fantastic, along with the rest of the house design. Sculptform makes several cladding systems that work with different types of concealed garage doors.
Steel is the best material for hidden doors that need to be sturdy and stiff. You can use Sculptform timber and aluminium battens to hide the look of a steel doorframe. The most important thing is to ensure that the battens or cladding systems are securely attached without affecting the door's weight balance or movement.

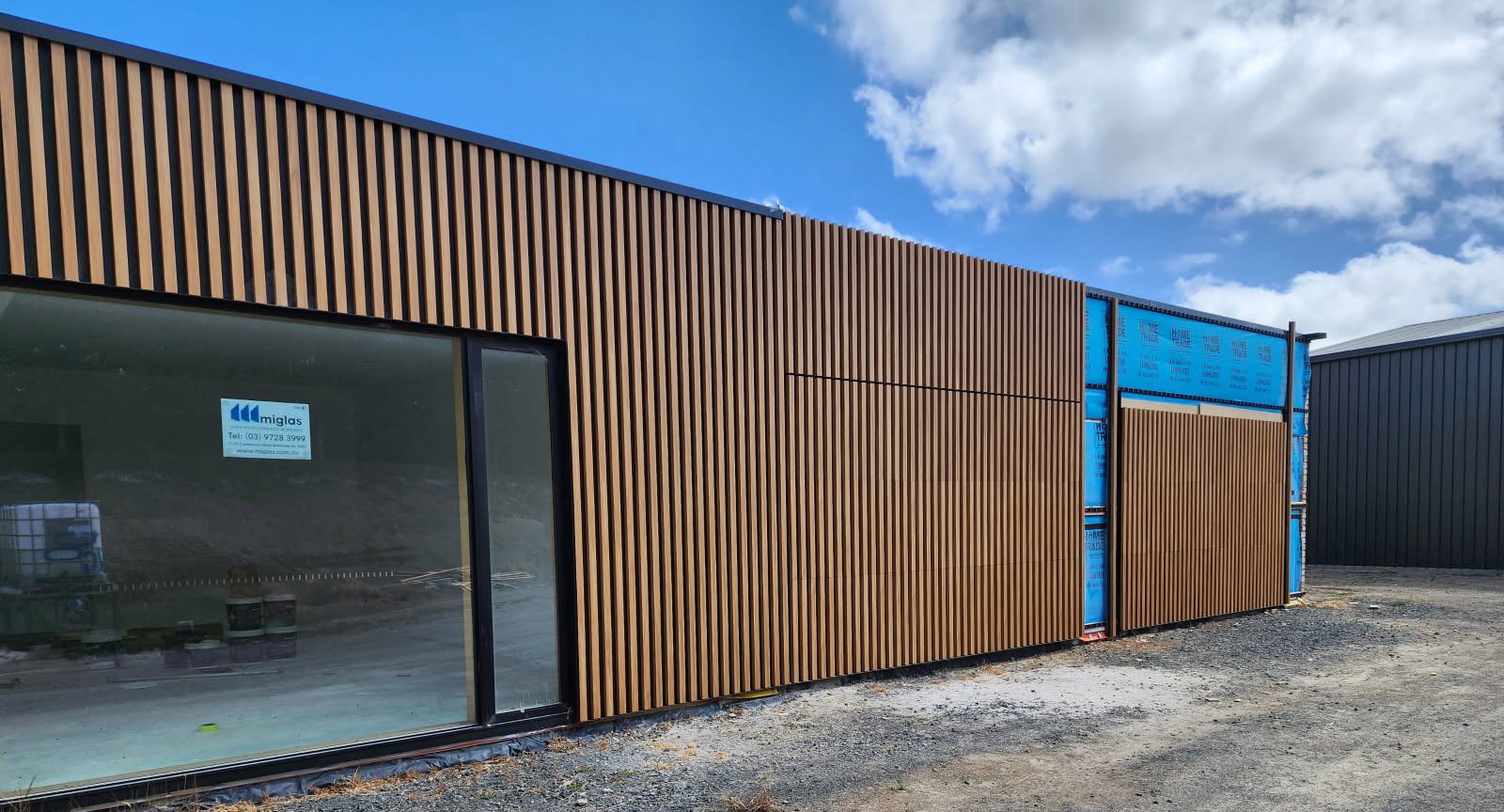

Aluminium is light, won't rust and works with Sculptform's aluminium batten systems. You can powder-coat or anodise these to match the colours of the project. These systems are ideal for hidden doors where weight is important and clean, sharp details are desired.
Sculptform timber click-on battens are a popular choice for high-end concealed garage doors. Architects can align batten spacing across the garage and adjacent walls, achieving a truly hidden effect. These battens come in Blackbutt, Spotted Gum and American Oak, among other timber species. They have a natural, tactile finish that blends in perfectly with the facades around them. The concealed fixing system also supports clean transitions without visible screws or brackets, critical for maintaining an uninterrupted timber grain flow.
Architects can use Sculptform timber and aluminium battens on composite or hybrid garage doors if the structure allows it. For example, a composite core door with wood battens is strong, warm and will match beautifully with a family home.

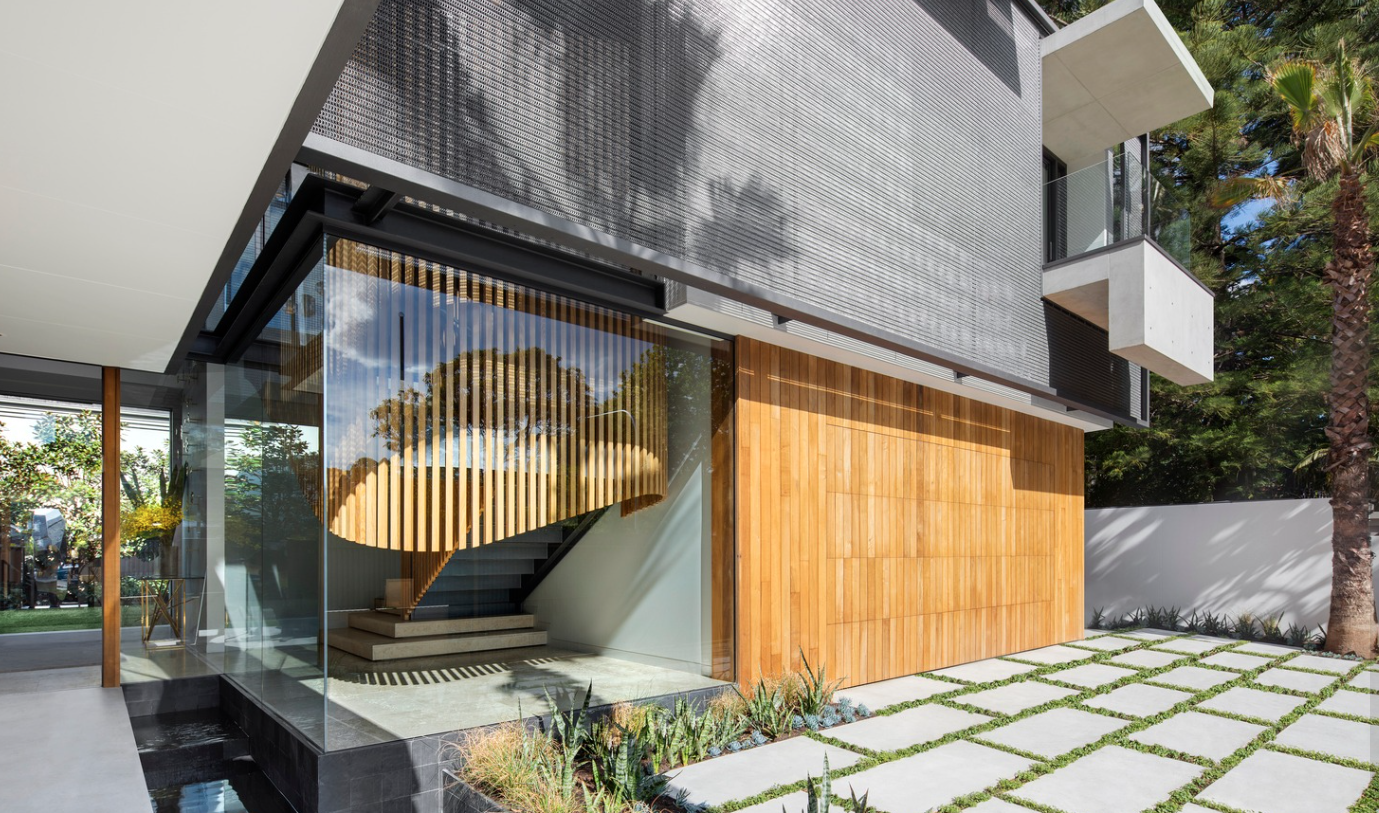

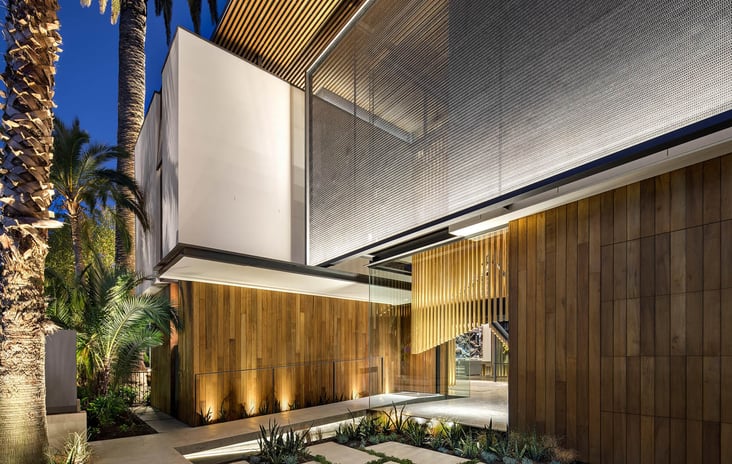

In high-end coastal homes, hidden garage doors covered in wood battens, such as Blackbutt or Spotted Gum, give the home a warm, natural look that matches the surrounding landscape. When these doors align flush with the timber-clad exterior walls, they maintain the home's sculptural shape and enhance the views of the ocean.

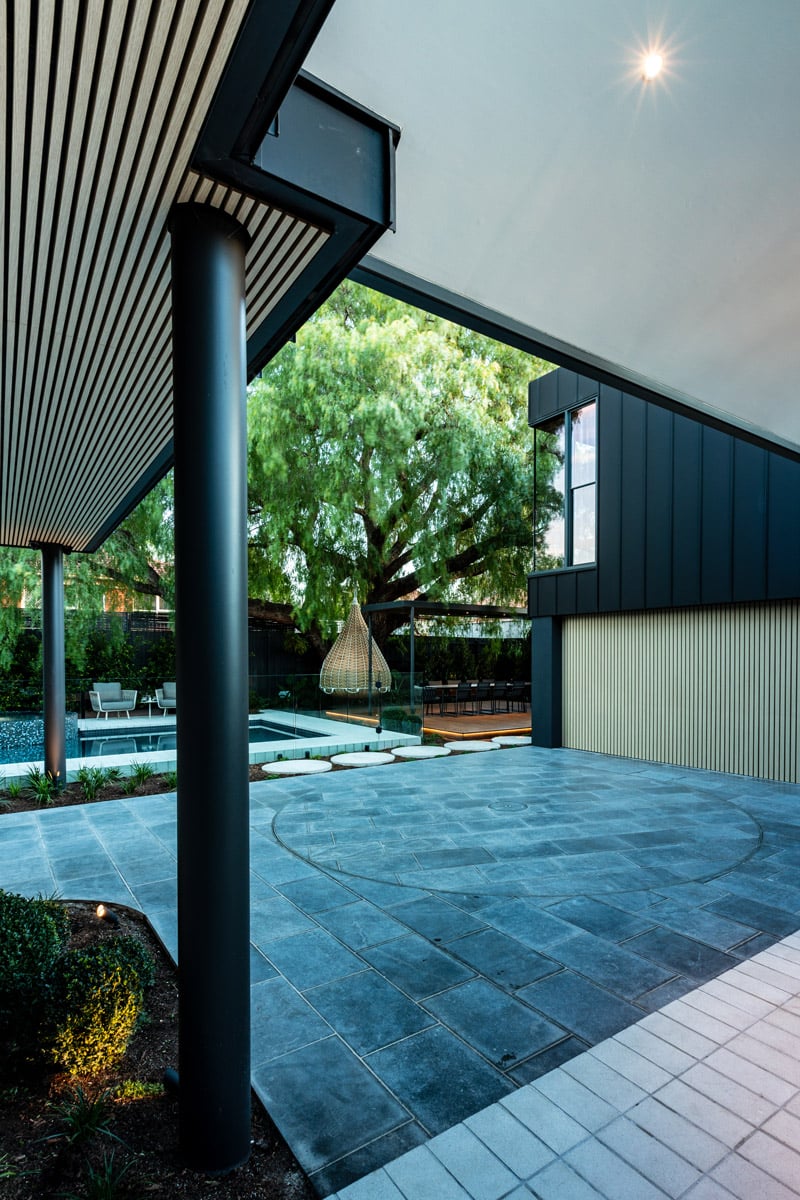

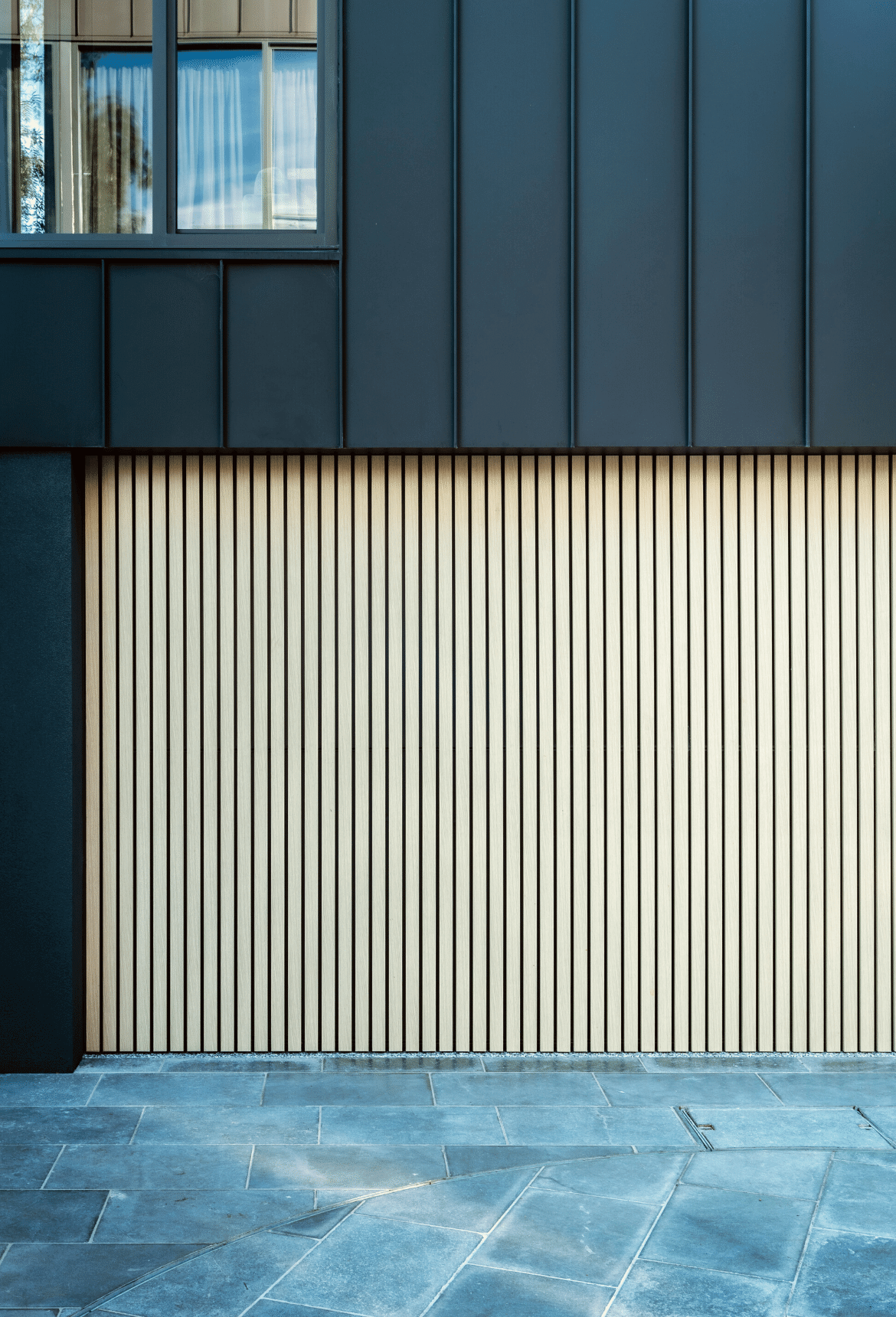

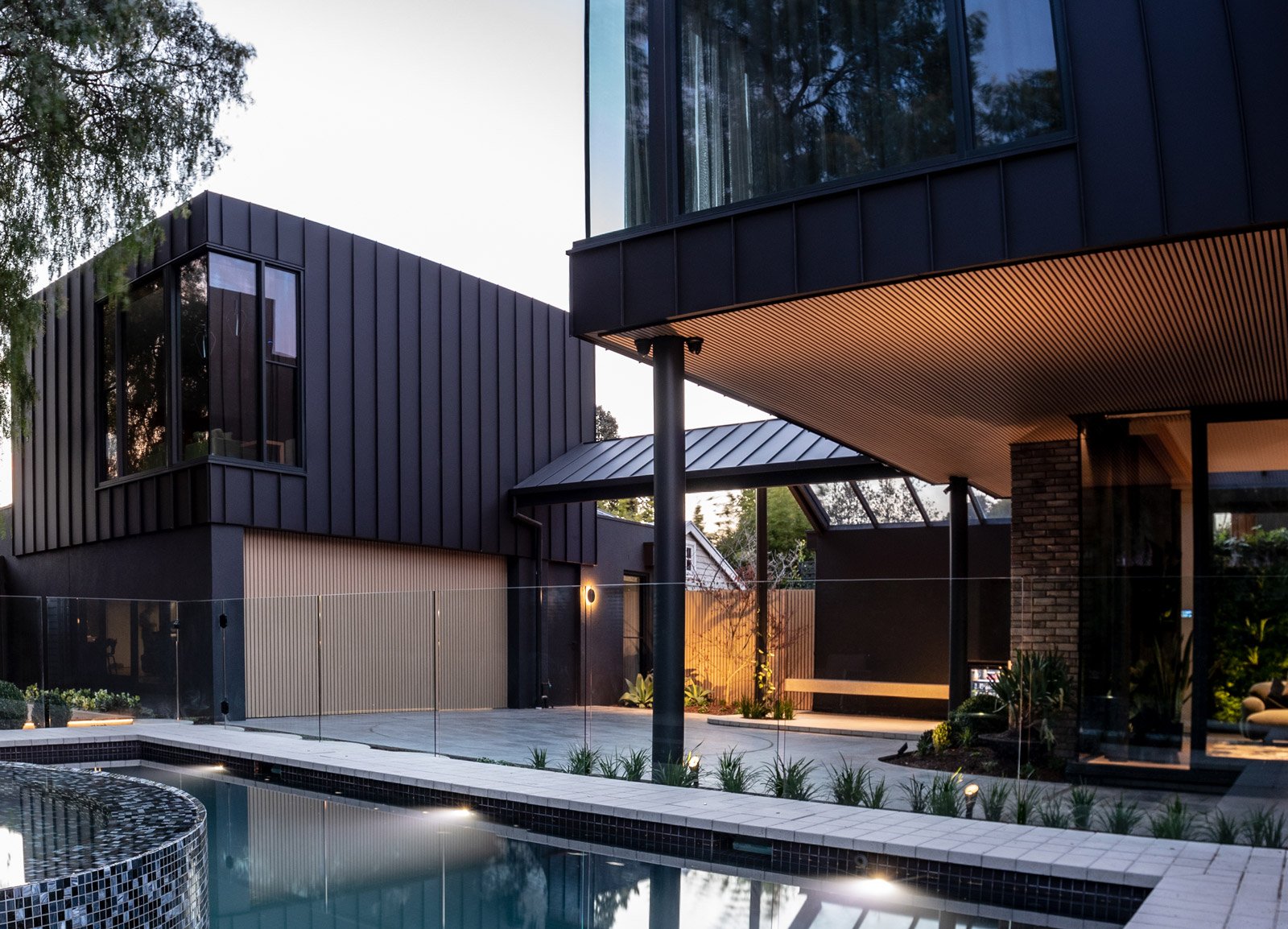

Architects designing modern townhomes often use concealed aluminium-clad garage doors that align with batten screening systems on adjacent walls. Sculptform’s Click-on aluminium batten systems create continuous vertical lines across the facade — visually unifying garage doors with balconies or entryways.
Luxury lodges and alpine homes integrate garage doors into facades clad with composite or stone-effect panels. In these projects, Sculptform’s timber systems are paired with structural tilt or trackless door mechanisms to support heavy materials while maintaining flush alignment and architectural symmetry.
For bespoke homes combining metal, timber and glass, architects use integrated garage doors as a canvas — layering Sculptform products across a motorised frame that blends perfectly with cladding systems. This versatility supports a monolithic facade where the garage is virtually invisible until activated.
The doors usually need maintenance every 12 to 18 months, depending on their exposure to sun, rain and other environmental factors. Cleaning, putting on protective coatings like stains or oils, and looking for signs of warping, cracking or rot are all part of regular maintenance. Using high-quality finishes and choosing durable hardwoods can help keep the timber's natural beauty. Wood finish aluminium is also a low maintenance alternative that looks great.
Yes, timber garage doors can work in coastal areas, but you need to be extra careful. Wood finishes can wear out faster in humid and salty air. Use marine-grade finishes that don't rust when they come into contact with salt and water. Choose dense, naturally durable woods like Spotted Gum or Ironbark. In these harsher conditions, performance is better when the details are done right, like sealed joints and stainless steel hardware.
The best types of wood for hidden garage doors are those that are stable in size, long-lasting and look incredible. Some popular choices are:
Not only do these timbers perform well with garage door cladding materials, but Sculptform's batten systems can be used to customise them so that they fit perfectly into the facade.
