Embracing Coastal Luxury Through Natural Timber Features

Double Bay House

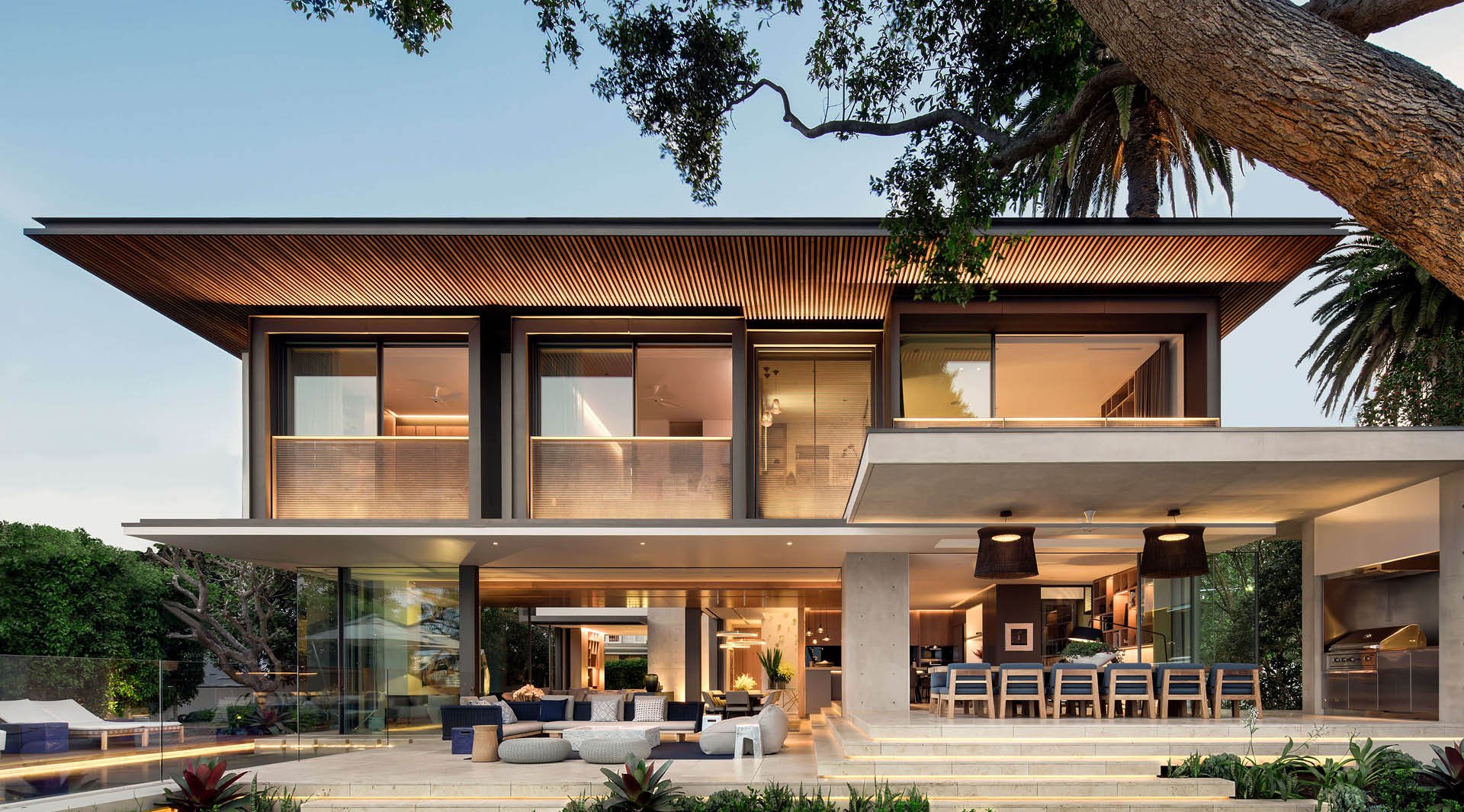

double-bay-house_01

Designed by SAOTA in association with TKD Architects, Double Bay House overlooks Sydney’s world famous harbour and uses both Click-on Battens and Tongue & Groove Cladding to create amazing timber features.

Sculptform’s timber batten ceiling spans the interior and exterior spaces, adding warmth to the material palette. Timber is used across the ceilings and walls to create a consistent architectural finish throughout the home.

Product
Click-on Battens
Materials
Pacific Teak
Sector
Single Residential
Architect
SAOTA Architecture and TKD Architects
Builder
Horizon
Location
Double Bay, Australia
Completion Date
2018
Photographer
Adam Letch Photography

A Ceiling Designed to Move Between Spaces

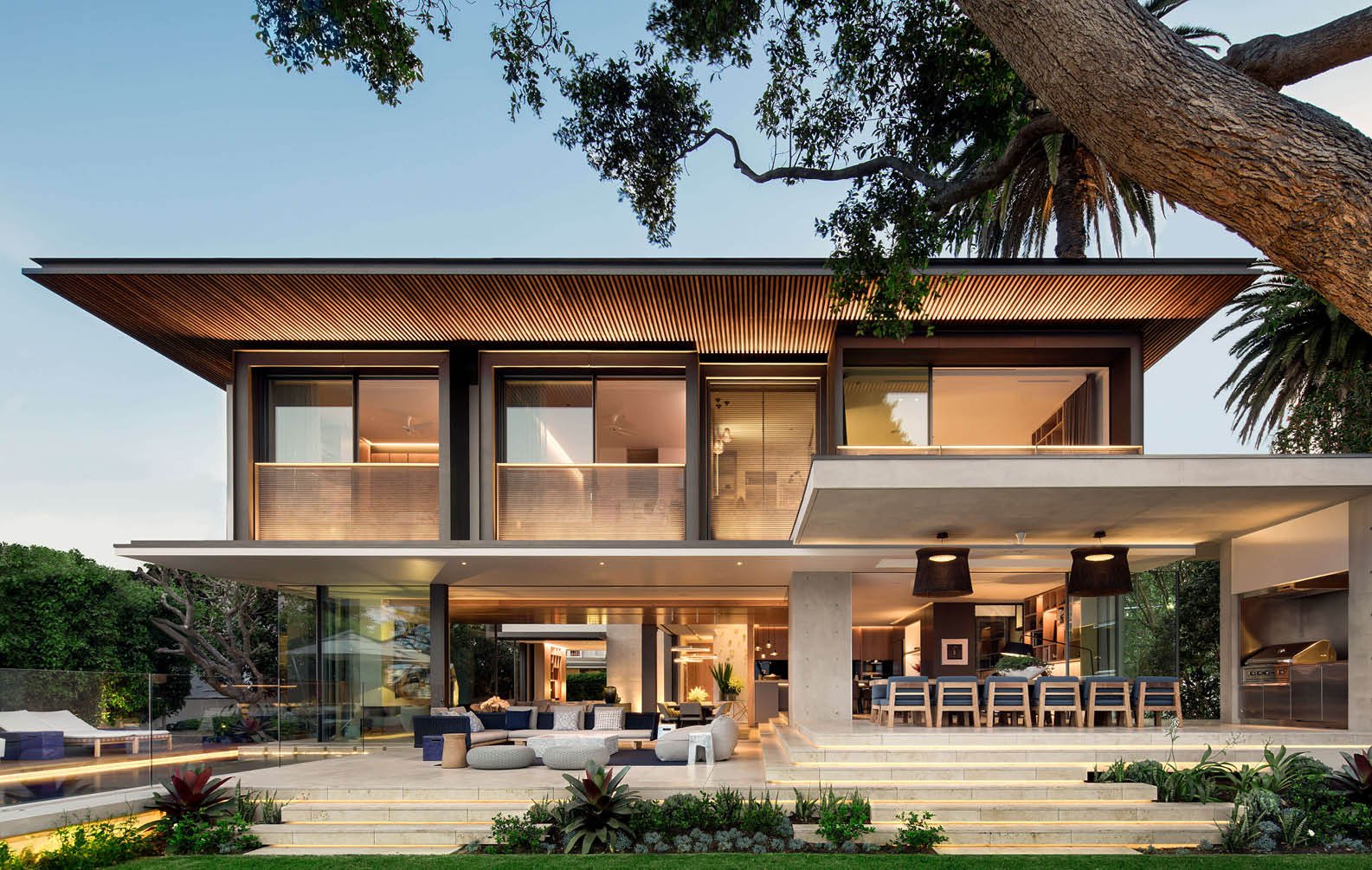

One of the defining features of the home is its expansive timber batten ceiling. Sculptform Click-on Battens extend across the interior and exterior, creating a continuous overhead feature that connects different living spaces.

On the upper level, the battens run through the gallery and continue out to the underside of the oversailing roof. Seen from the waterfront, this extended wood canopy becomes a defining element of the home's architecture.

The ceiling uses different batten configurations to suit each area. The first floor features 42 × 42mm Block battens, while the kitchen and family living area on the ground floor uses 42 × 60mm Block battens finished in white. Both are installed with a 42mm gap.

This coordinated approach allows the batten system to adapt across different spaces while maintaining the strong linear character of the overall design.

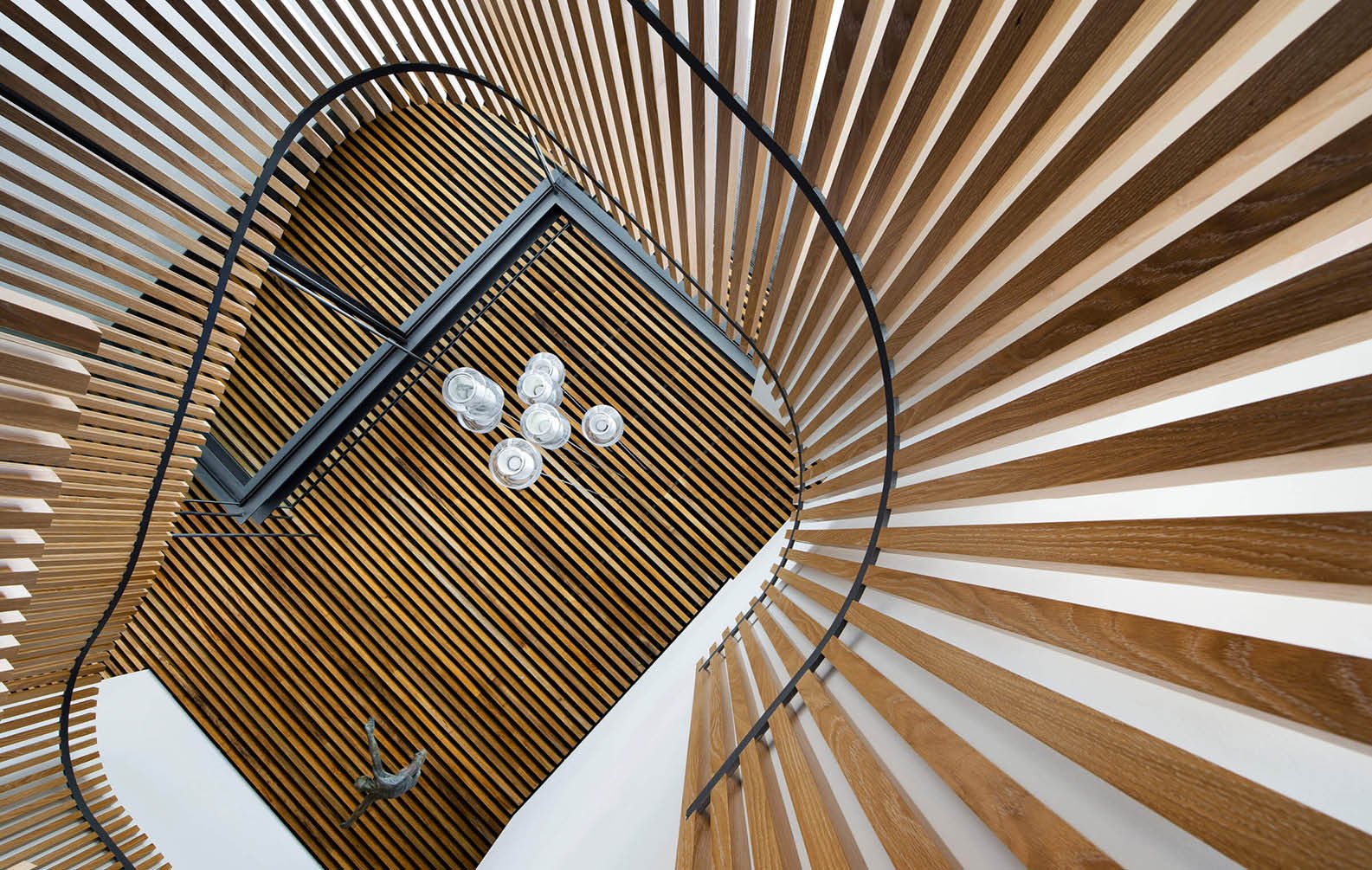

double-bay-house_04

Detailing Behind the Battens

The Click-on system is supported by black aluminium track, with acoustic backing installed behind the battens in the interior space. The acoustic backing absorbs sound passing through the gaps, helping reduce echo in the open-plan living spaces.

The battens were factory coated in clear oil and supplied in random lengths, so the natural variation of the solid timber remains visible across the ceiling.

This combination of concealed installation, acoustic backing and natural timber creates a ceiling system that integrates both design and functional requirements.

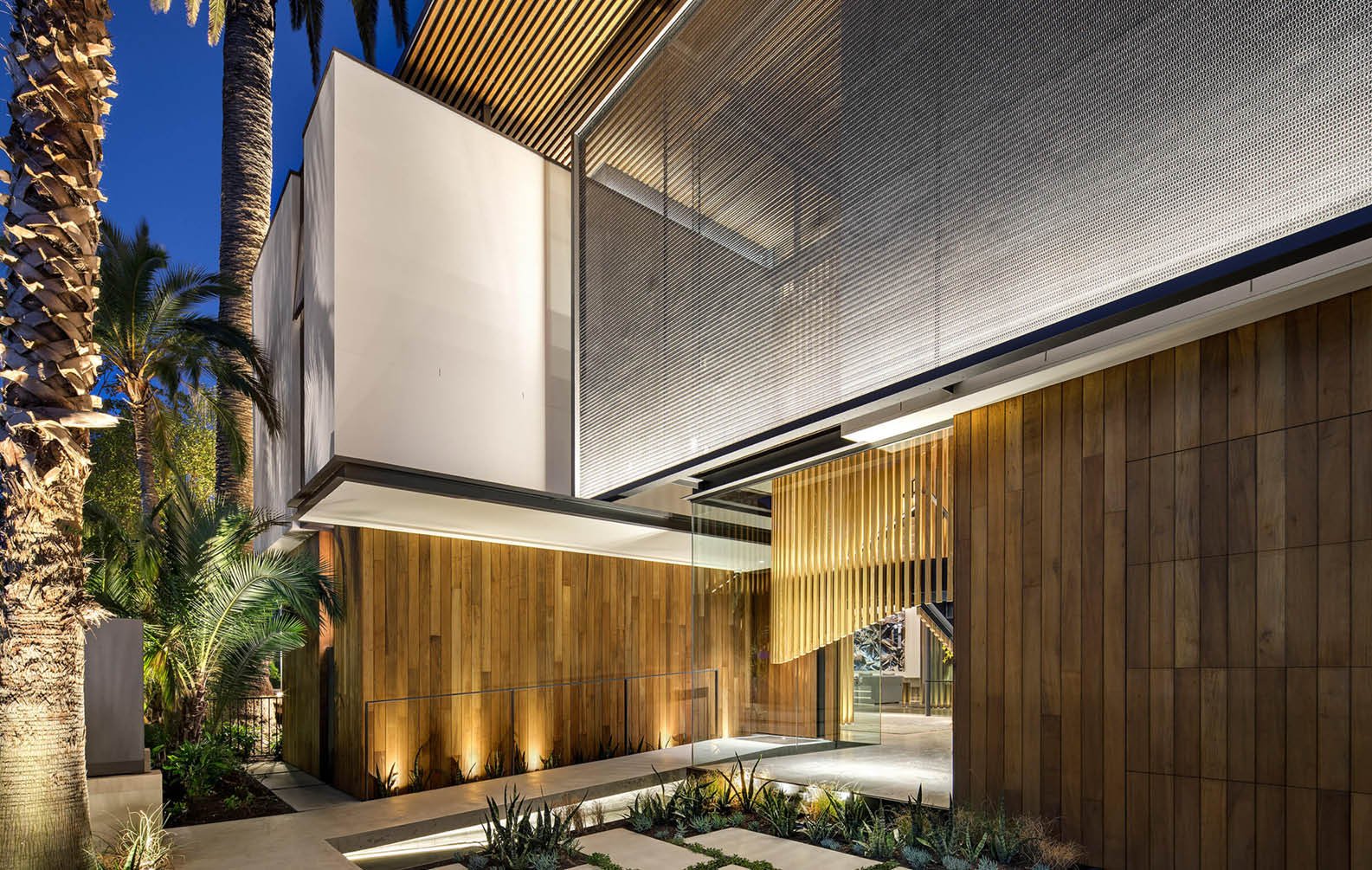

double-bay-house_06

Concealed Garage Door Integration

A feature is the sectional concealed garage door, which sits flush within the timber cladding. This integration ensures the garage doesn’t interrupt the rhythm of the facade, maintaining the home’s strong architectural lines. When closed, the door disappears into the cladding; when open, it functions seamlessly without compromise.

Learn more about detailing a typical sectional garage door like this one, plus download the DWG file on the link below.



Sculptform_Sectional_Garage_Door_Typical_Detail

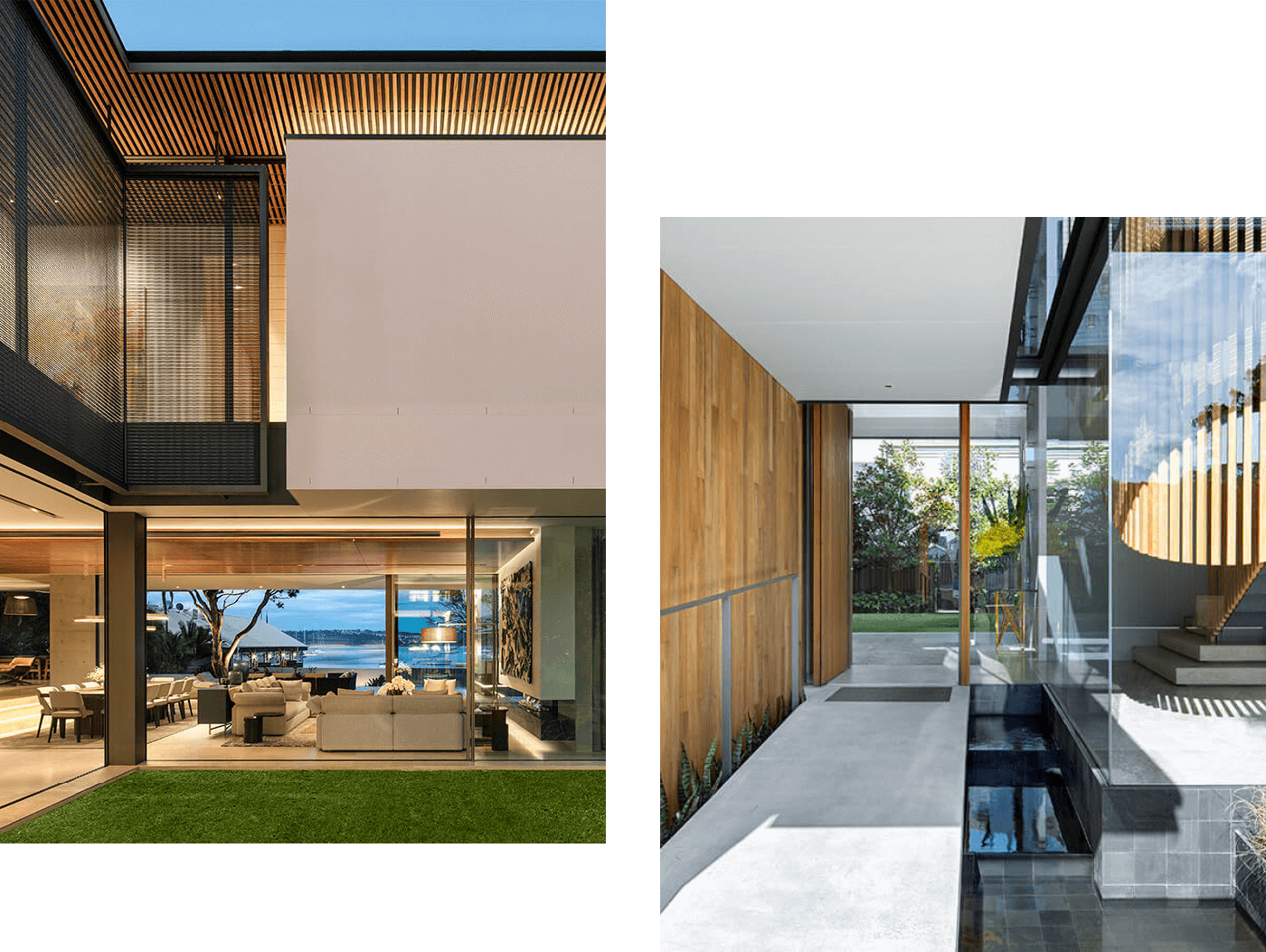

double-bay-house_05

Designed Around Light, Privacy and Connection

The architecture responds carefully to the home's waterfront position. Expansive glass openings allow the main living areas to take advantage of views across the bay, while the more solid upper level provides privacy for the bedrooms and family spaces.

Sculptform's Click-on Batten ceiling and Tongue & Groove cladding contribute to this balance by adding warmth and texture to the open architectural volumes. The timber detailing becomes part of the transition between enclosed rooms, covered outdoor areas and the landscape beyond.

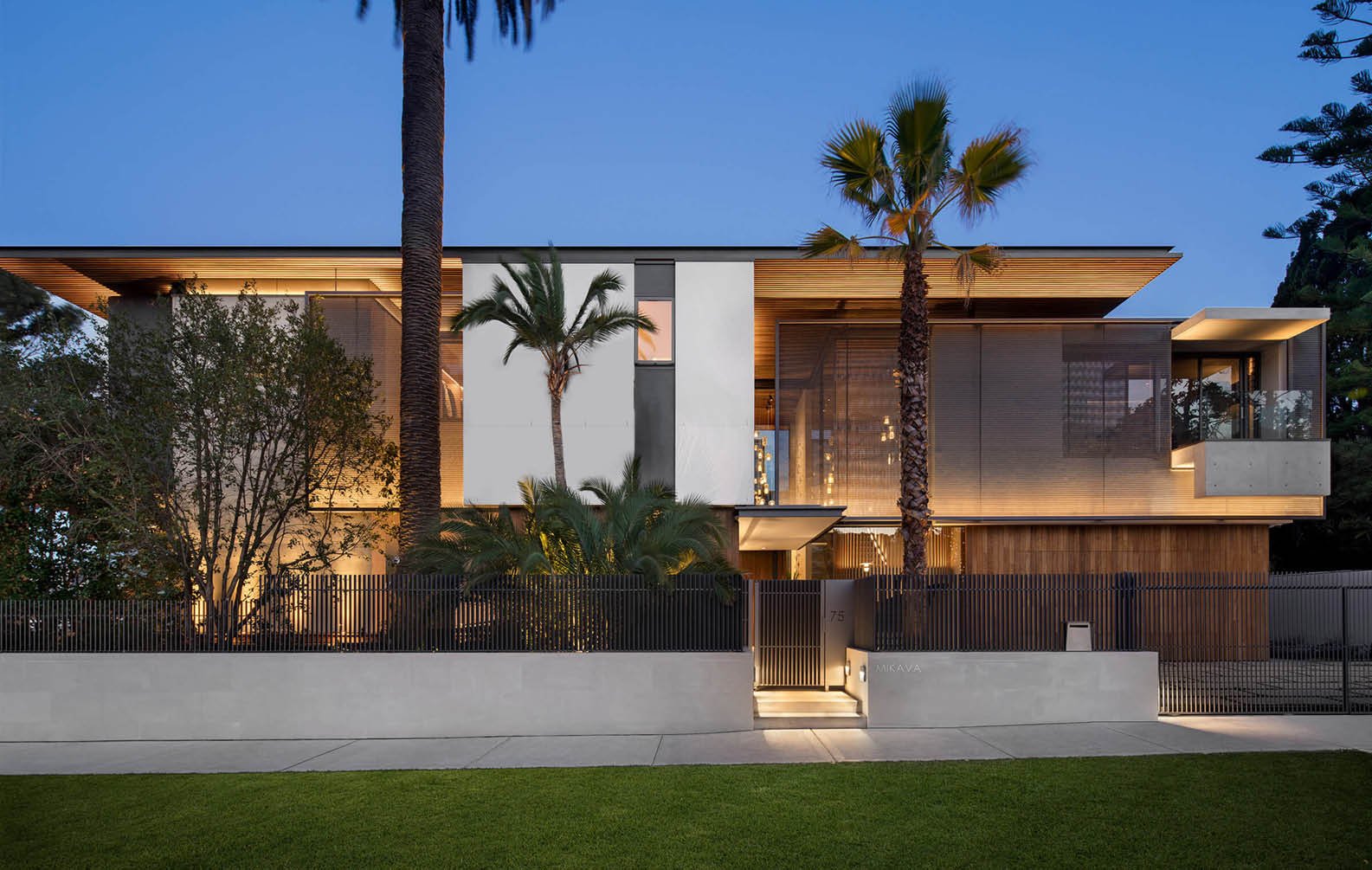

double-bay-house_07

An Award-Winning Residential Design

The home's architectural design and delivery received recognition across the Trends International Design Awards.

  • TIDA International Home of the Year (2018): Recognised as the international home winner.

  • TIDA Australian Architecture – Architect Designed New Home (2018): Winner of the Australian architect-designed new home category.



Batten Ceiling

Product

Click-on Battens

Material

Timber

Species

Pacific Teak

Profile

Block, 42x42mm

Spacing

42mm

Coating

Clear Oil

Mounting Track

Standard

Acoustic Backing

Internally

Interior White Batten Ceiling

Product

Click-on Battens

Material

Timber

Species

Banjo Pine

Profile

Block, 42x60mm

Spacing

42mm

Coating

Clear Oil

Mounting Track

Standard

Acoustic Backing

Internally

Cladding

Product

Sculptform Tongue and Groove Cladding

Material

Timber

Species

Pacific Teak

Profile

Sorrento, 138x19mm

Coating

Clear Oil

double-bay-house_07
