Elevating Workplace Design with a Mesmerising Vaulted Ceiling

MaxCap Group Office

























MaxCap Group Office Sculptform Vaulted Ceiling

The MaxCap office fitout is a luxury office renovation that blends modern corporate interior design with high-end workplace solutions.

Designed by Warren and Mahoney and constructed by SHAPE, this project exemplifies architectural excellence, premium material selection, and functional aesthetics to create an inspiring and dynamic corporate space.

Product
Click-on Battens

Materials
Anodised Aluminium
Applications
Feature Ceilings
Sectors
Workplace
Architect
Warren and Mahoney

Builder
SHAPE
Location
Melbourne, Australia
Completion
2024
Photographer
Nicole England
MaxCap Group Office Sculptform Vaulted Ceiling with Modern Interior Design



First Class Architectural Vision

Warren and Mahoney’s design elevates the unique spatial elements of the office using Sculptform’s Aluminium Click-on Battens. The bright dipped anodised aluminium battens introduce a reflective quality, amplifying natural light and creating a sleek, sculptural effect that adds depth and movement to the workplace. Their distinct pattern arrangement plays with depth and dimension, further accentuating the architectural intent of the space.

The aviation-themed interiors, complemented by reflective battens and sweeping skyline views, evoke a sense of luxury, openness, and movement – core design principles expertly executed by SHAPE.

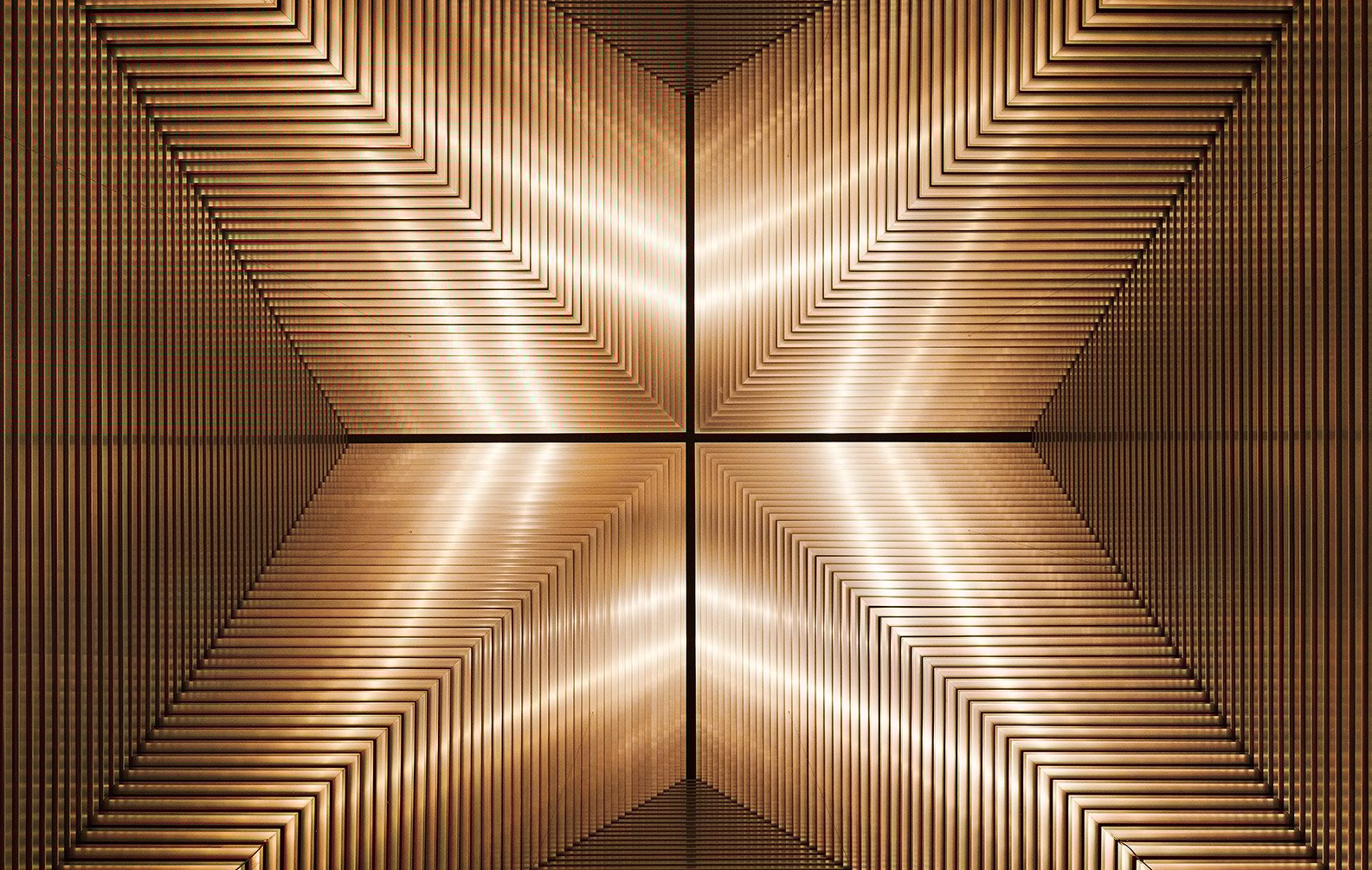

MaxCap Group Office Sculptform Vaulted Ceiling detail

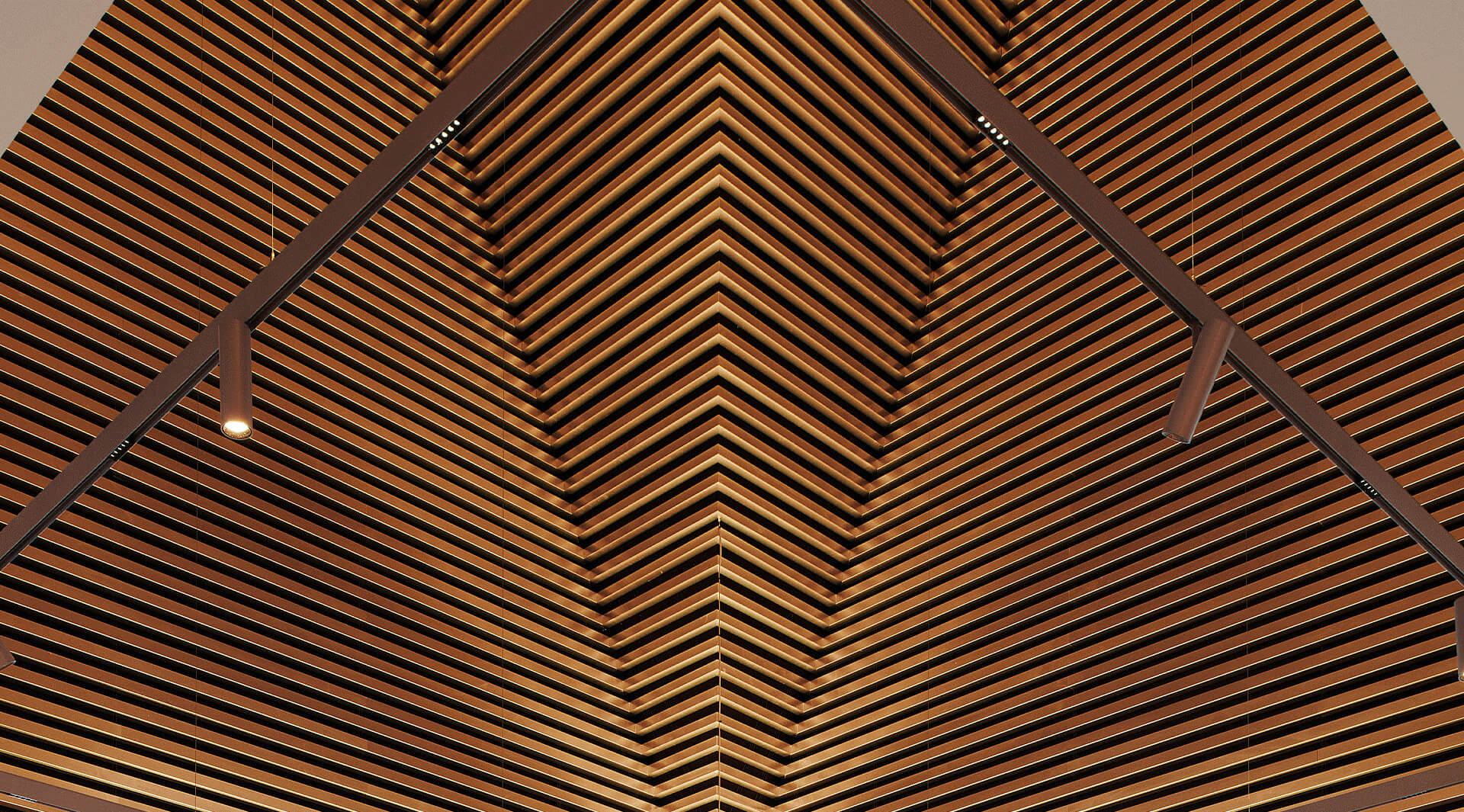

The main feature of the fitout is the vaulted Sculptform ceiling located above the sky lounge, which peaks at 11 metres high and is clad in 1,850 lineal meters of aluminium battens. The battens were custom cut and hung with exposed mitres and acoustic panelling to form a mesmerising, tapered pyramid that creates a stunning focal point.

SHAPE

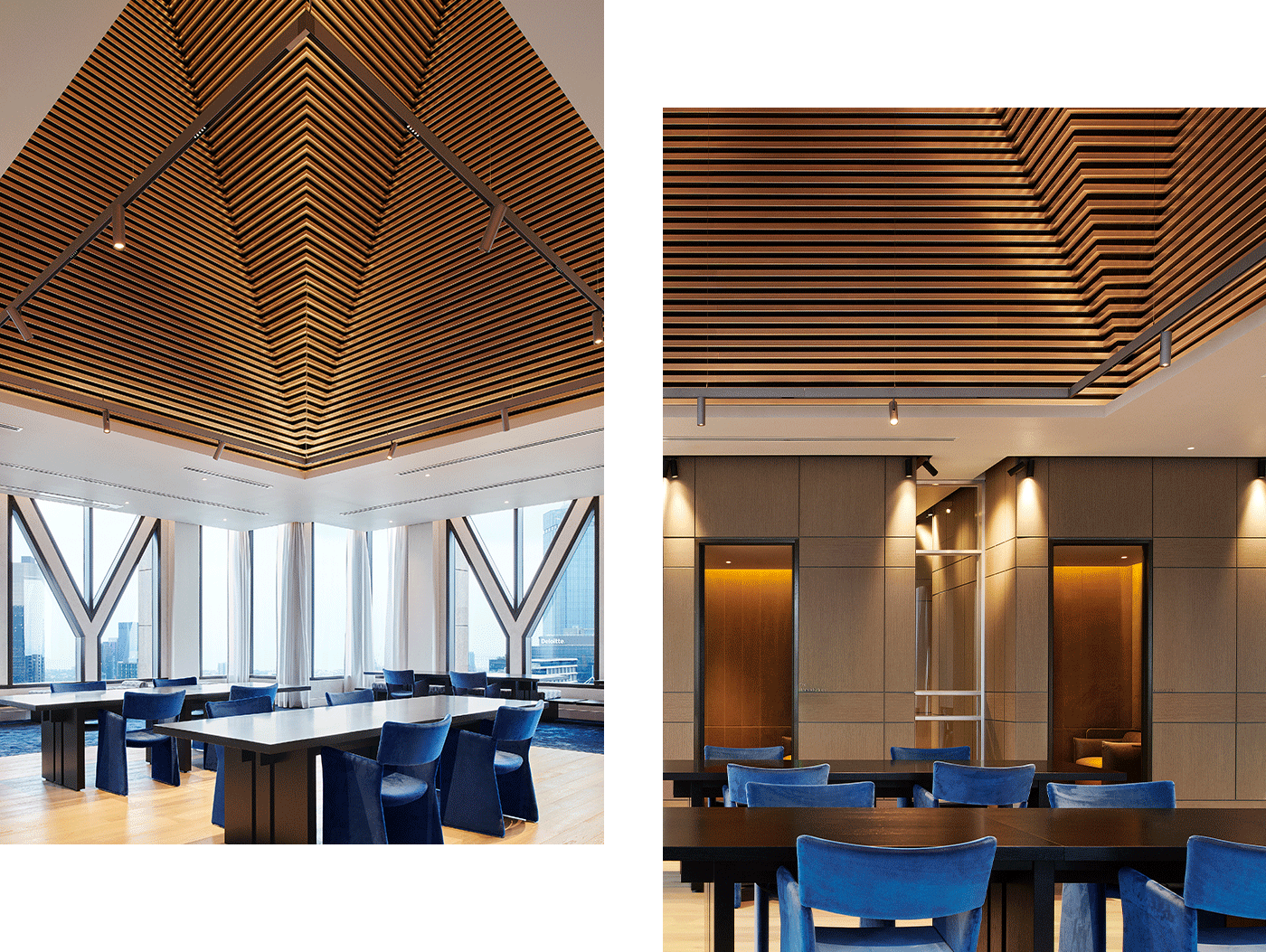

Two Images of MaxCap Group Office Sculptform Vaulted Ceiling and Modern Interior Design



Collaborative Approach

Sculptform worked closely with both Warren and Mahoney and SHAPE, to develop a tailored application of the Click-on Batten System, ensuring both aesthetic and functional goals were met. The integration of seesaw and swivel clips allowed for:

  • Seamless alignment with the office’s complex architectural geometry
  • Flexibility in installation, reducing time and material waste
  • A high-performance, visually striking feature that enhances the workplace experience

Setting a New Benchmark for Luxury Workplace Interiors

The MaxCap Office Fitout redefines modern workplace design by integrating architectural innovation, luxury material, and functional aesthetics.

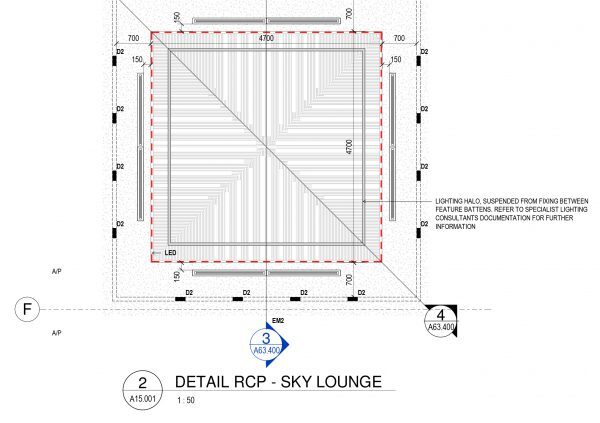

Maxcap Office Stapled DETAIL Drawings
Two Images of MaxCap Group Office Sculptform Vaulted Ceiling detail and lighting

Product Specifications

Vaulted Ceiling

Product

Click-on Battens

Material

Aluminium

Profile

Block, 50mm x 50mm

Finish

Anodised - Bright Dipped Silver

Track

Standard & Angled Mounting Track, Seesaw Clip & Swivel Clip

Acoustic Backing

Yes

Outdoor aluminium screens

Product

Click-on Battens

Material

Aluminium

Profile

Tube, 50mm

Spacing

25mm

Track

Slimline mounting track

Finish

Anodised, Dulux Electro Medium Bronze Flat

MaxCap City View and Interior Seating Area

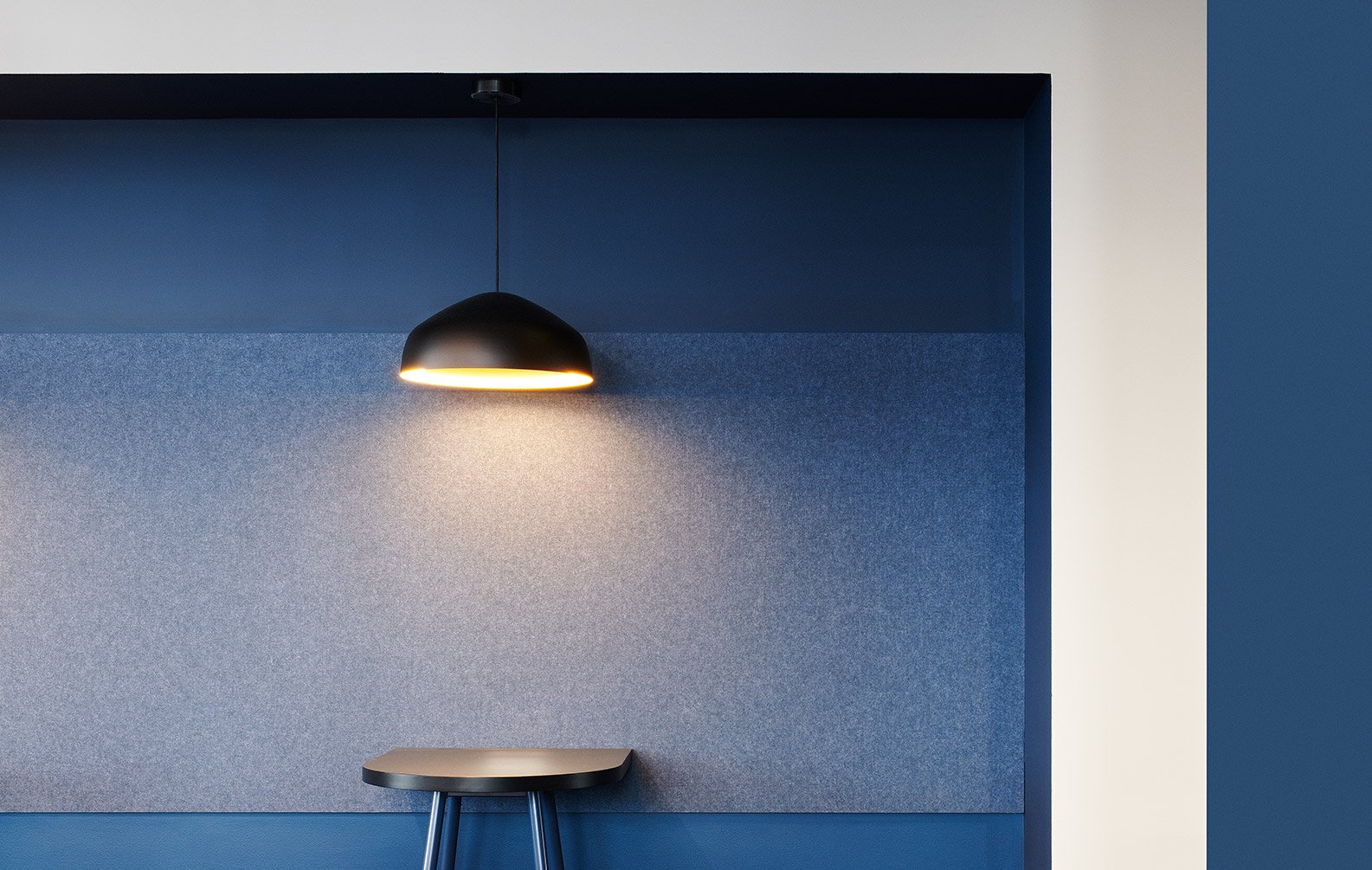

MaxCap Office Feature Wall and Interior Lighting
