Sweeping Curves and Sharp Timber Lines

West Gippsland Arts Centre

























west-gippsland-arts-centre_01

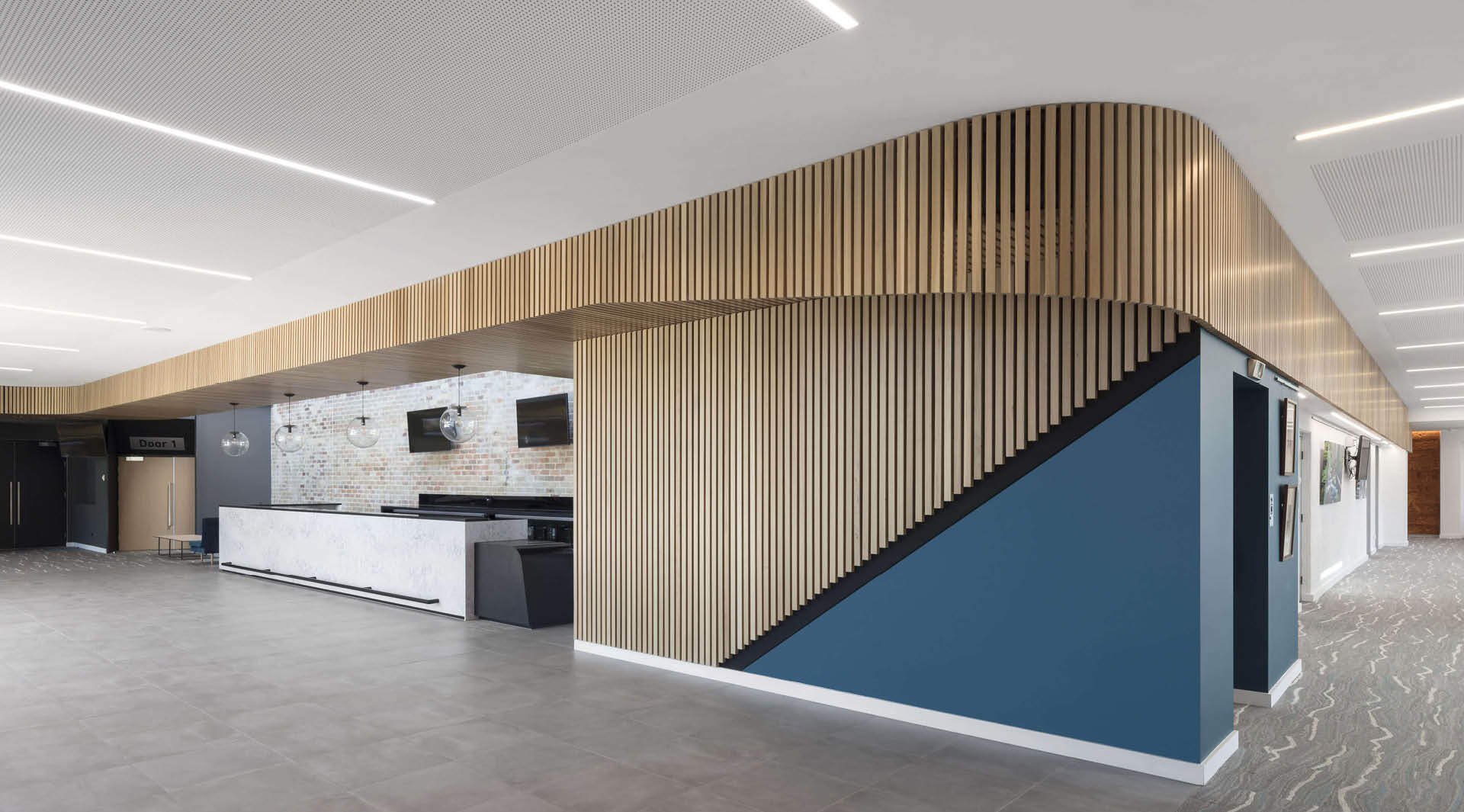

The refurbishment of the West Gippsland Arts Centre designed by Williams Ross Architects showcases the incredible flexibility of the Click-on Battens system, creating stunning curves and sharp angles through both the interior and exterior.

Product
Click-on Battens
Materials
Powder Coated Aluminium, White Oak
Sector
Cultural
Architect
Williams Ross Architects
Builder
Building Engineering Pty Ltd
Location
Warragul, Australia
Completion Date
2018
Photographer
Dianna Snape
west-gippsland-arts-centre_04

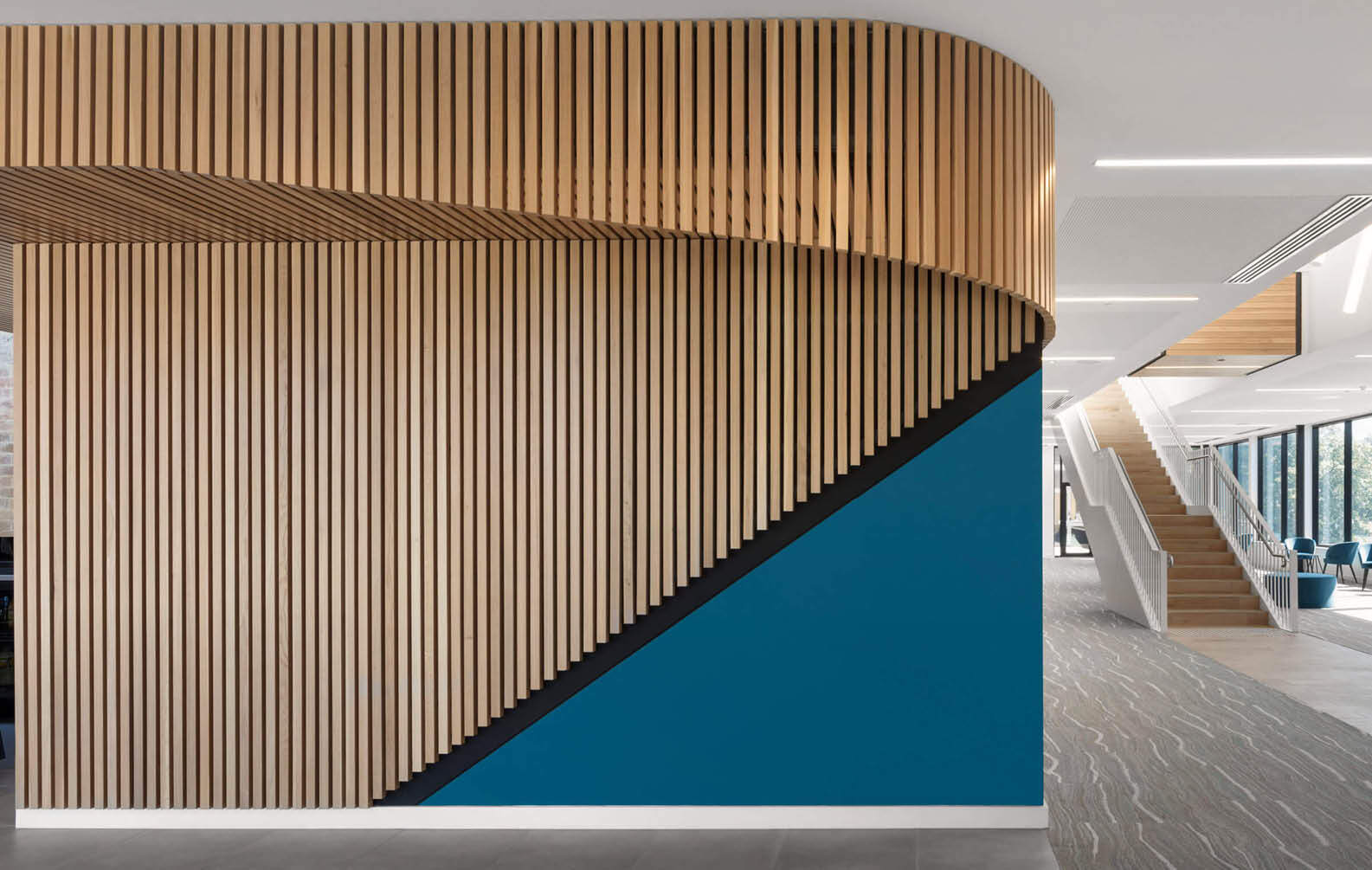

Versatile Curves

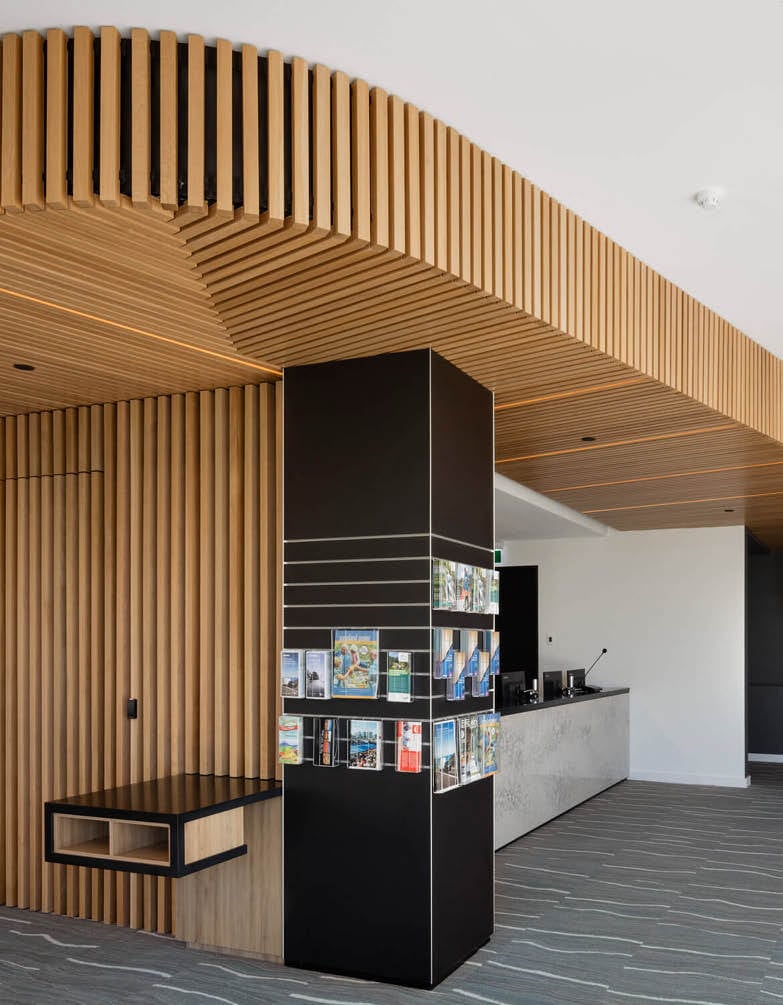

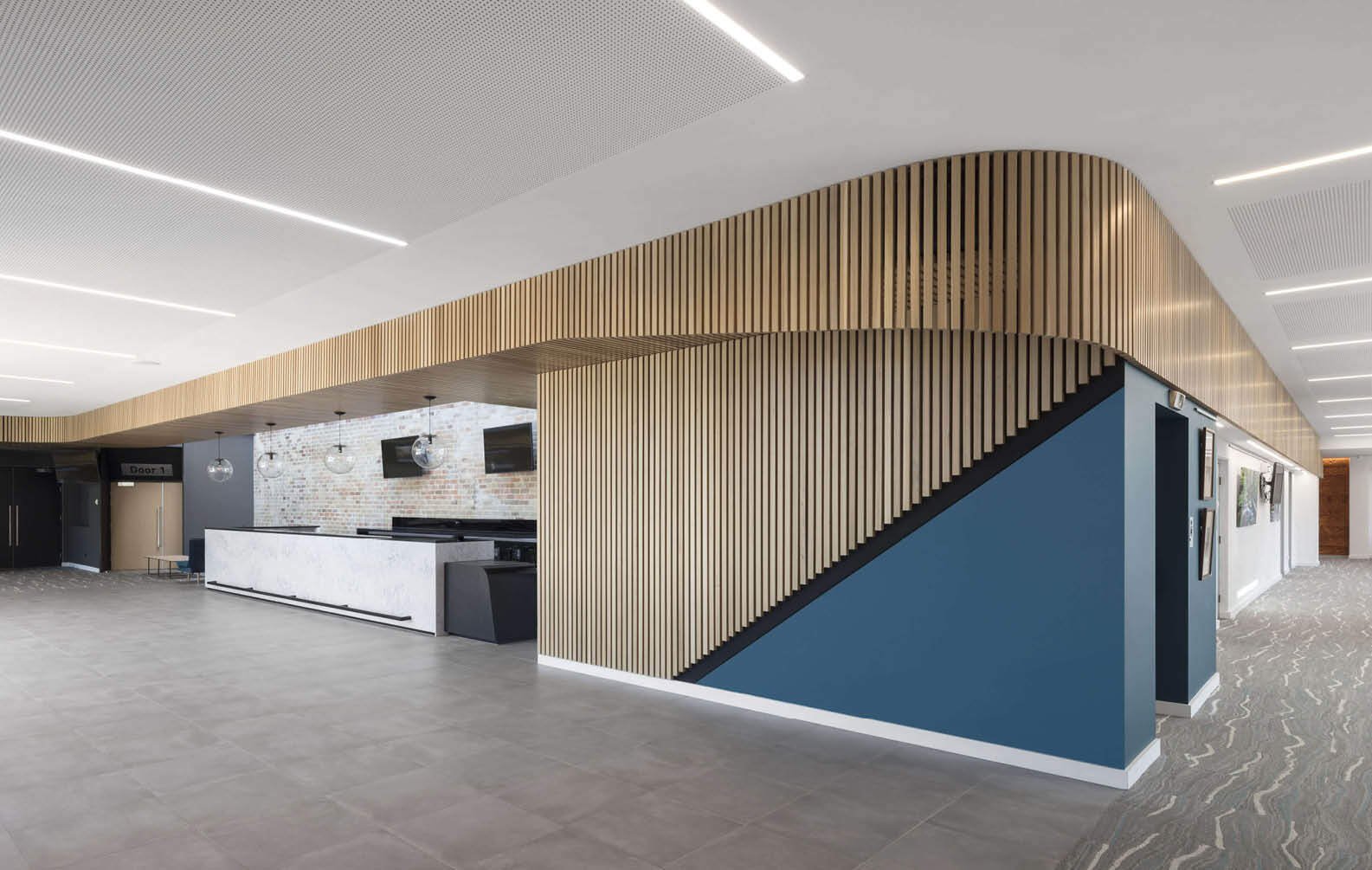

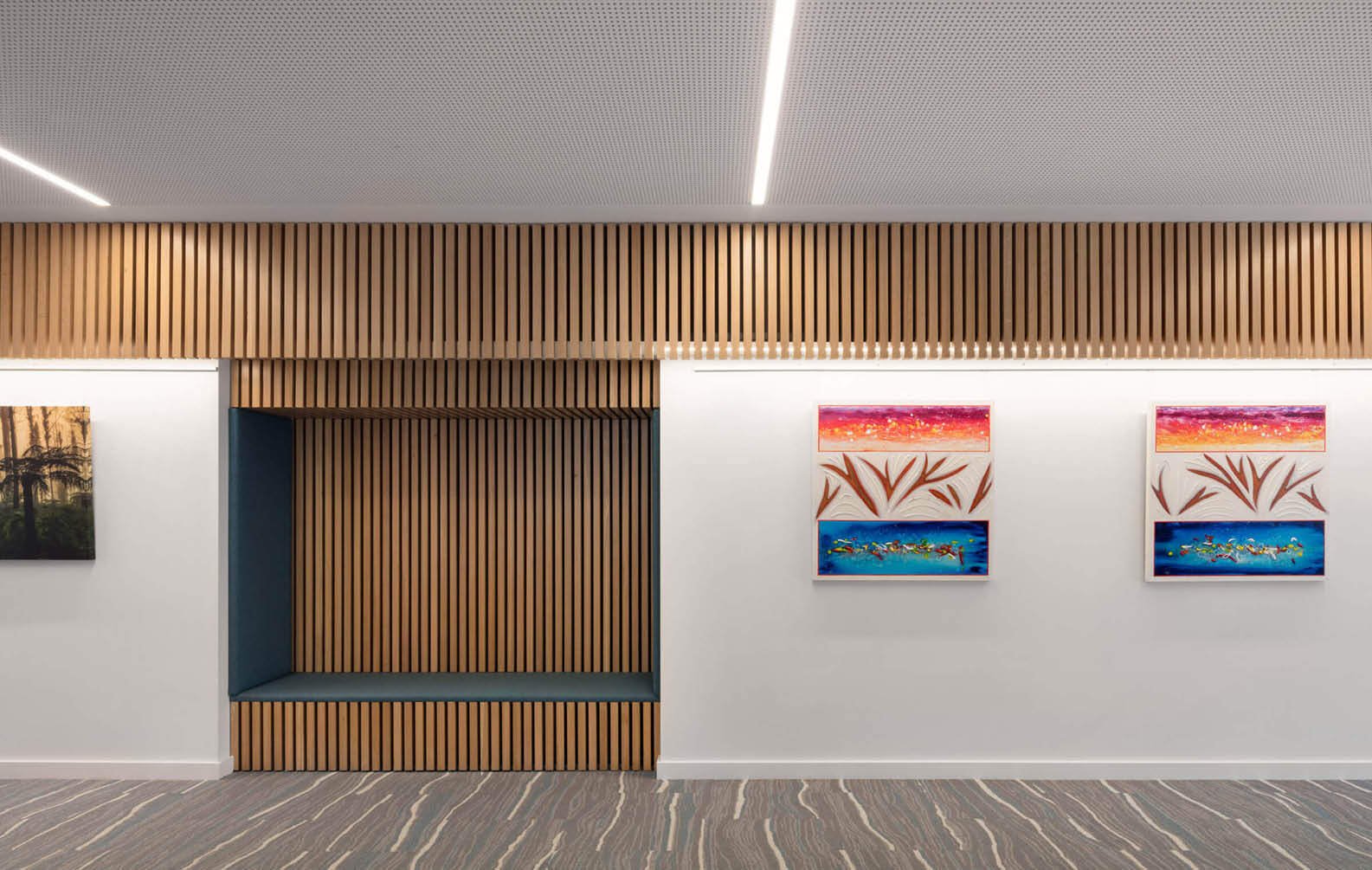

The Click-on Batten system gives designers true freedom when it comes to designing curves in walls, ceilings or facades, and West Gippsland Arts Centre is no exception. Interior bulkheads are softened by sweeping curves lined in White Oak timber battens, utilising the specially designed curving track of the Click-on Battens system.

Battens ending on angles create a balanced aesthetic, the straight lines of the angles and linear textures contrasting the curves of the walls. The classic grain of the White Oak brightens the room and adds a sense of dynamism with the slight variations in colour.

west-gippsland-arts-centre_05
west-gippsland-arts-centre_03
west-gippsland-arts-centre_06
west-gippsland-arts-centre_07

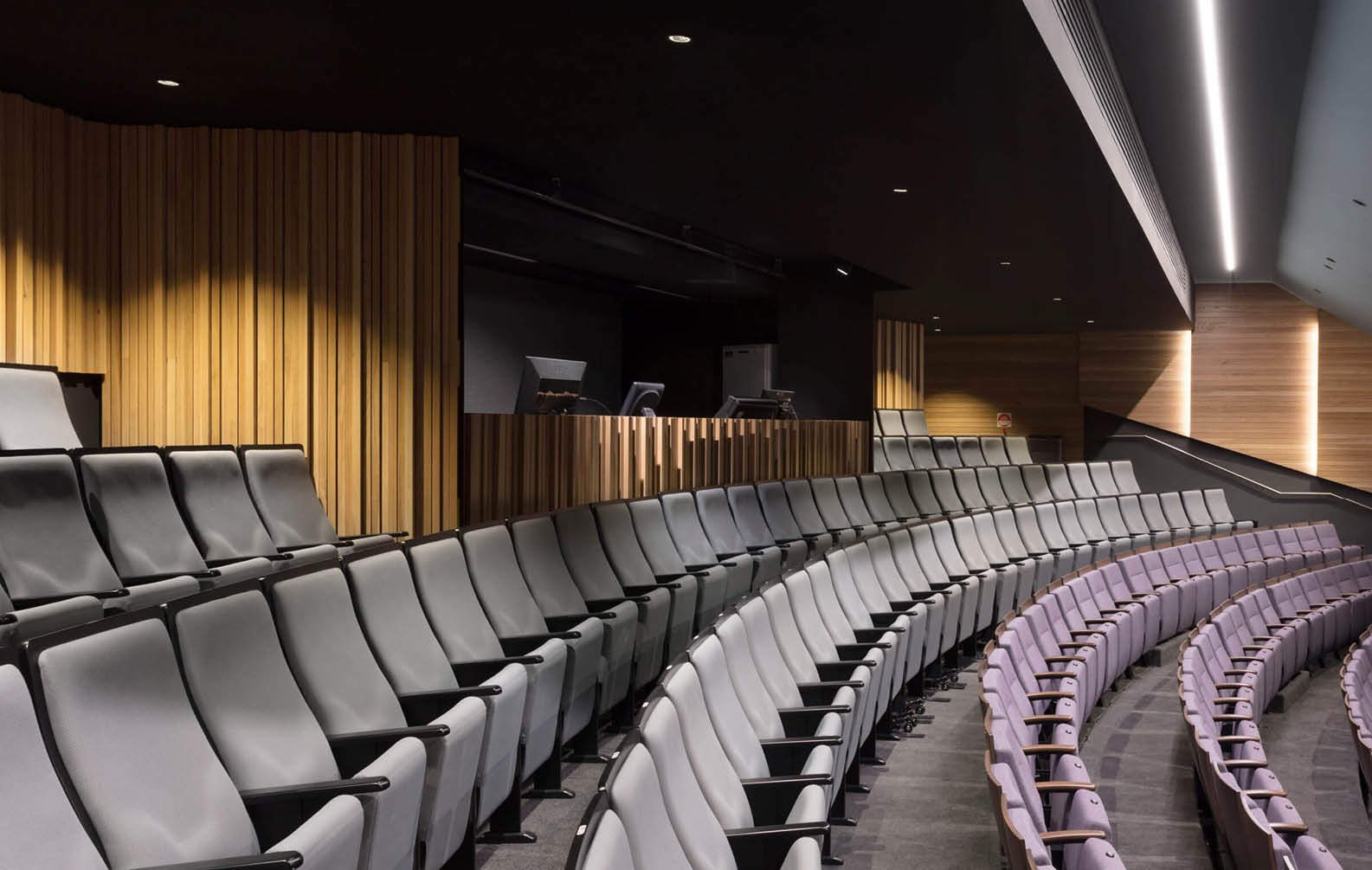

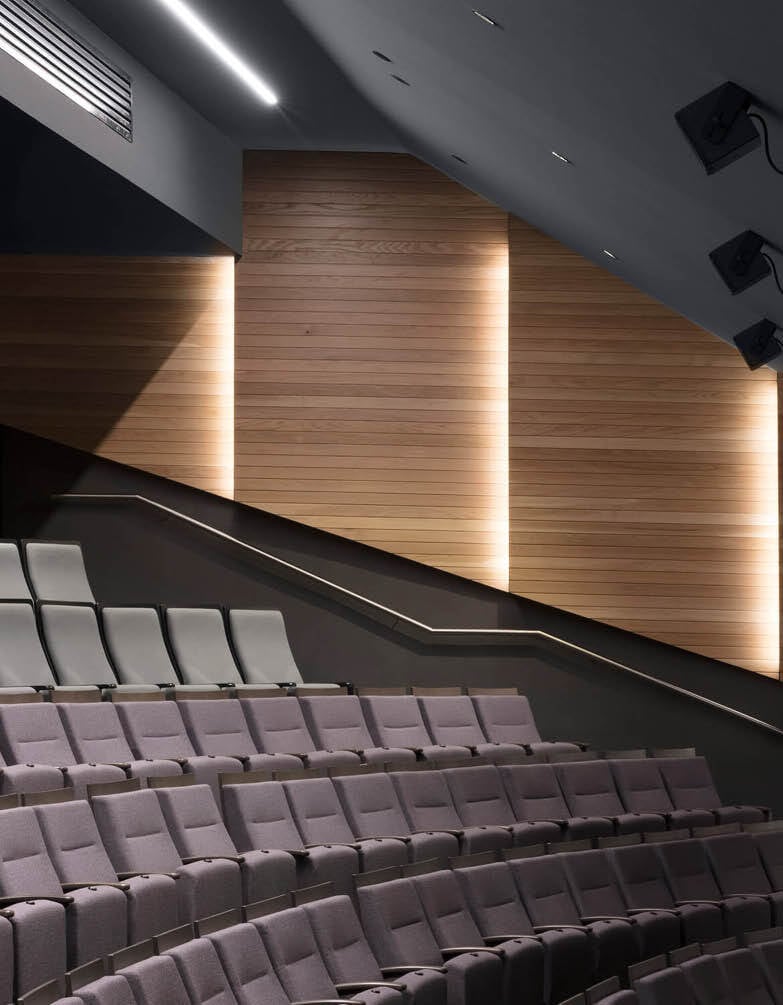

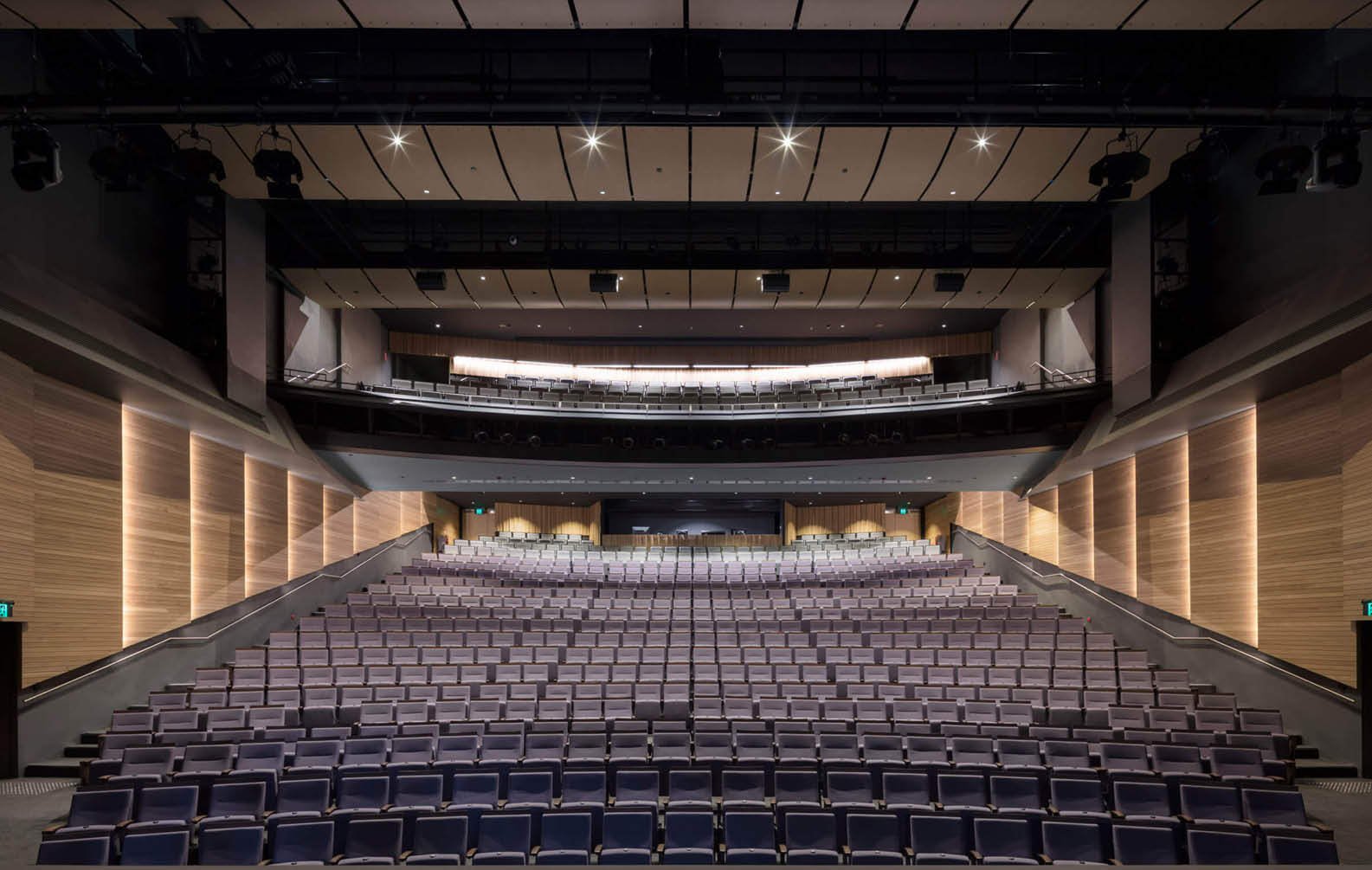

Auditorium Wall Linings

The huge 760 seat auditorium within the centre is lined with the same White Oak timber form the rest of the project, but this time in our Tongue & Groove Cladding system. Our system gives the classic timber cladding look along the walls of the auditorium, reflecting sound and assisting in the desired acoustic scenario of the design. Click-on Battens in varying profiles were installed with a minimal spacing on the back wall to further absorb sound.

west-gippsland-arts-centre_08
west-gippsland-arts-centre_09

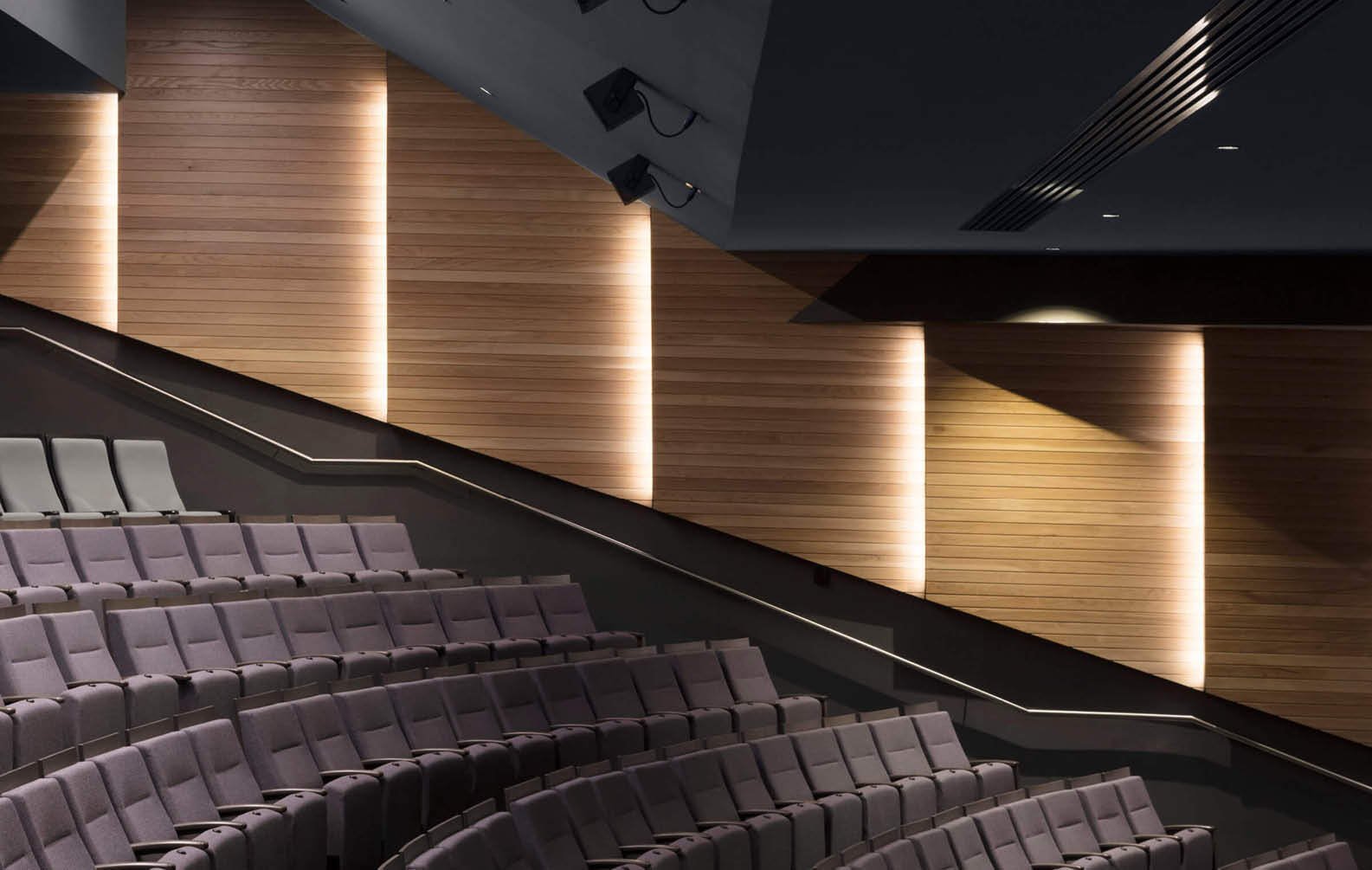

Integrated Lighting

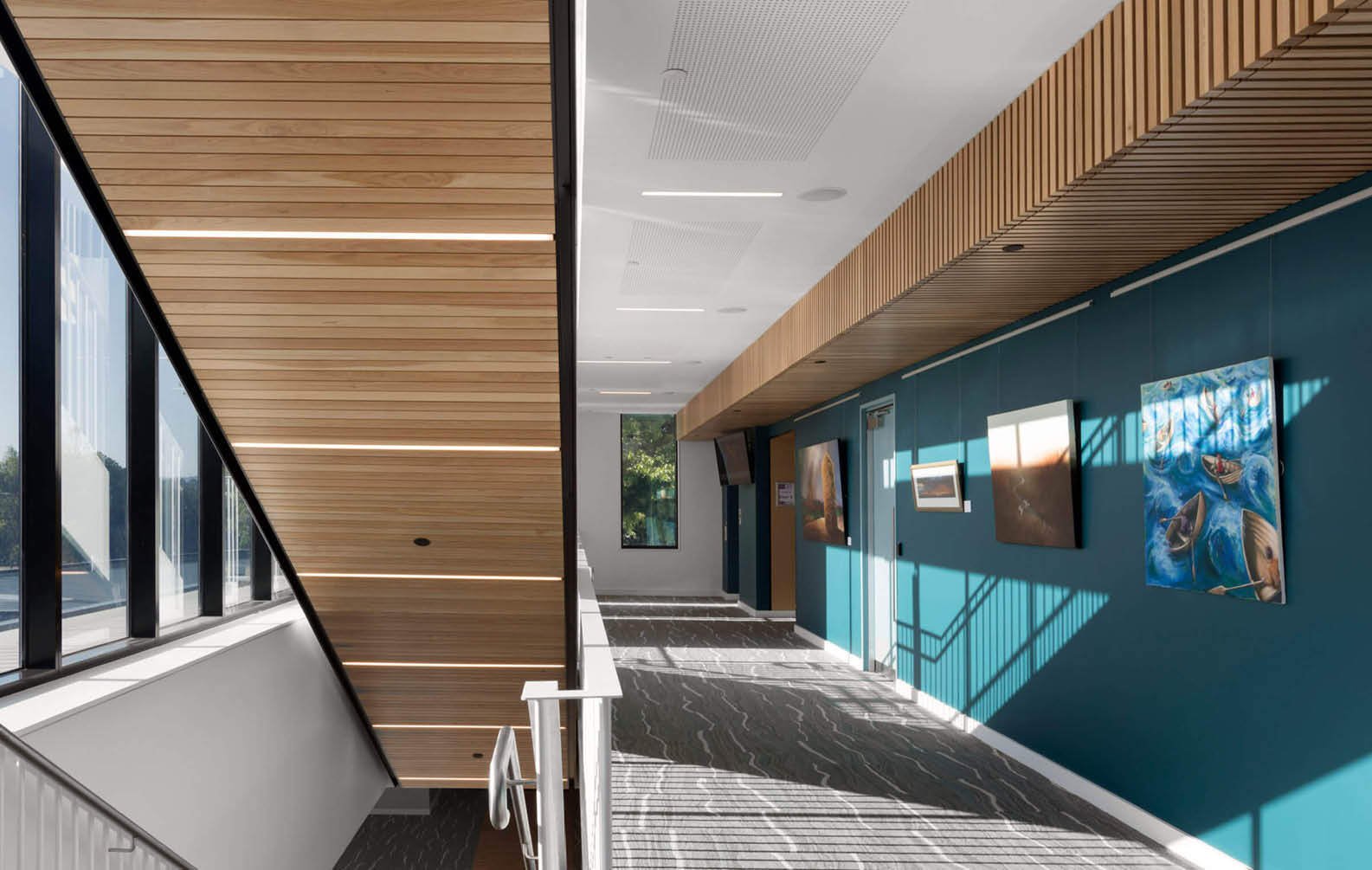

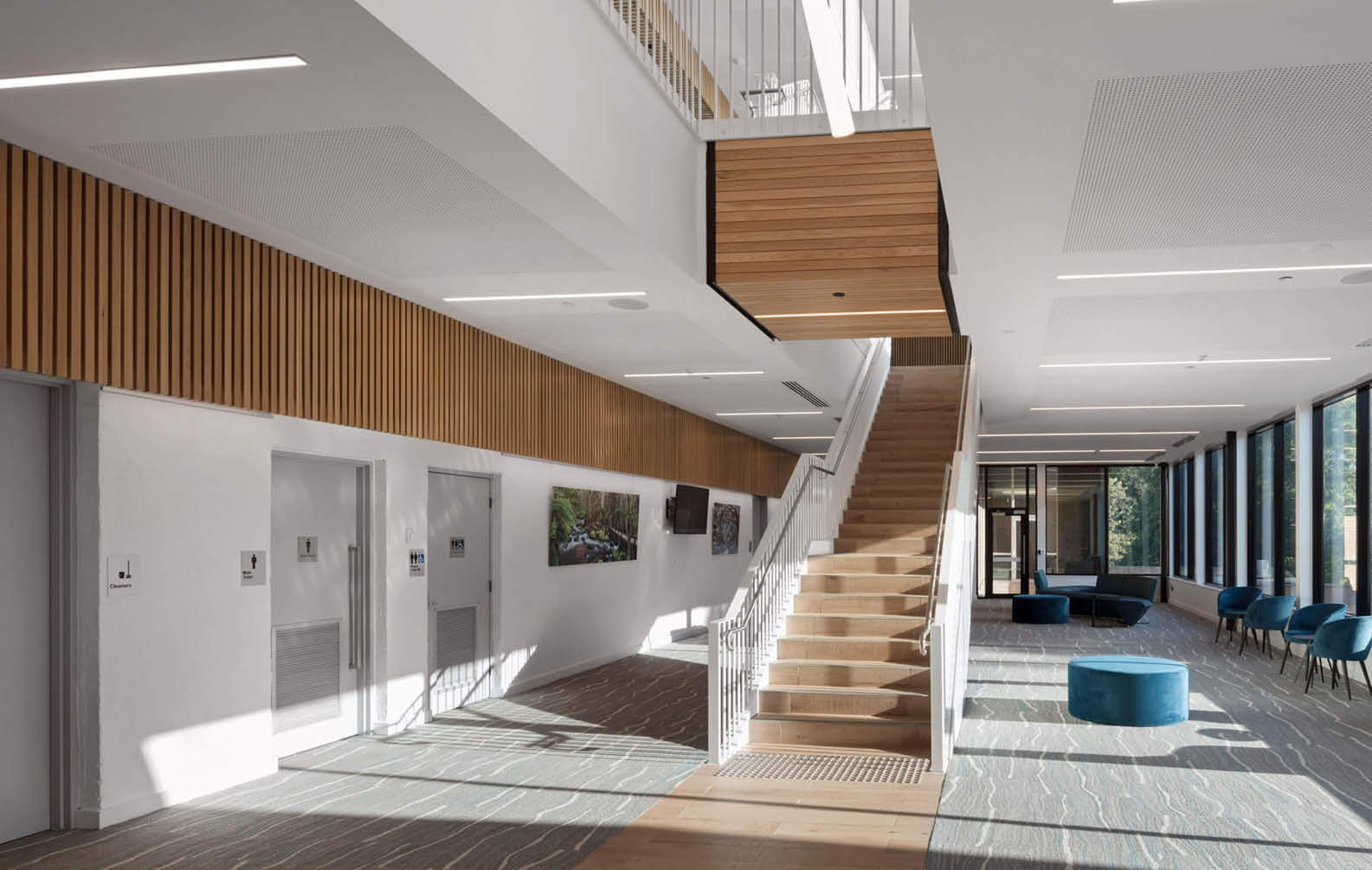

The adaptability and modular design of our systems allows for services such as lighting and sprinklers to be integrated seamlessly. In the West Gippsland Arts Centre, lights are integrated into the theatre walls and also the soffit above the stairs. This feature provides a unique look, with light radiating out from behind the panels of cladding in the theatre.

Our role as passionate collaborators in the design process allows us to help architects specify unique features like this into their designs and remain confident of the end result.

west-gippsland-arts-centre_10
west-gippsland-arts-centre_11

Curved Wall

Product

Click-on Battens

Material

Timber

Species

White Oak

Profile

Block, 42x42mm

Spacing

20mm

Coating

Clear Poly

Mounting Track

Curving

Acoustic Backing

Yes

Auditorium Walls

Product

Tongue & Groove Cladding

Material

Timber

Species

White Oak

Profile

Sorrento, 88x19mm

Coating

Clear Poly

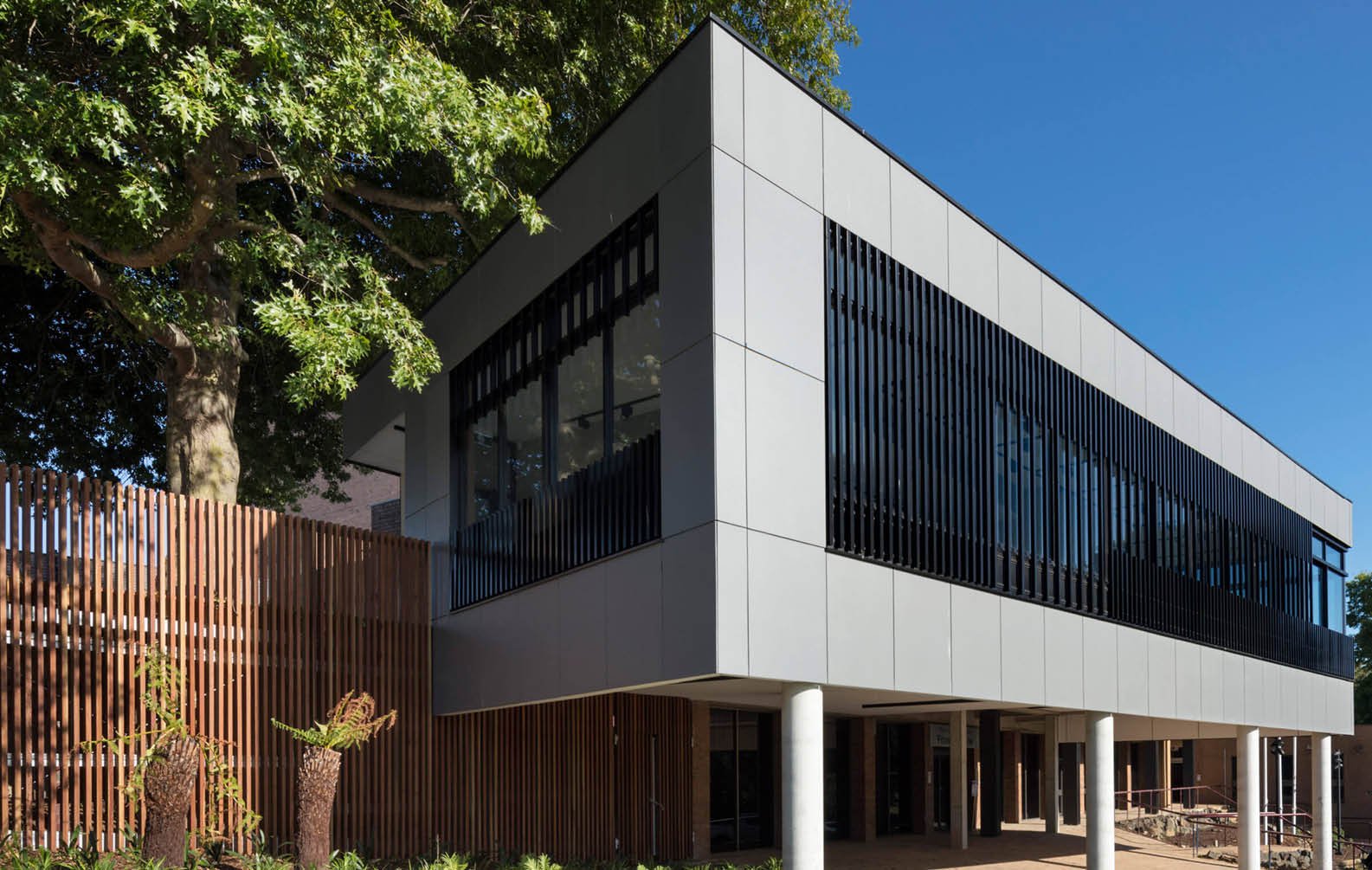

Exterior Screen

Product

Click-on Battens

Material

Aluminium

Profile

Block, 50x50mm

Spacing

100mm

Finish

Dulux Black Satin

Mounting Track

Standard

Acoustic Backing

No

west-gippsland-arts-centre_12
west-gippsland-arts-centre_13
