Aluminium Click-on Screen Tech Specs

Comprehensive Technical Information for Aluminium Click-on Screens

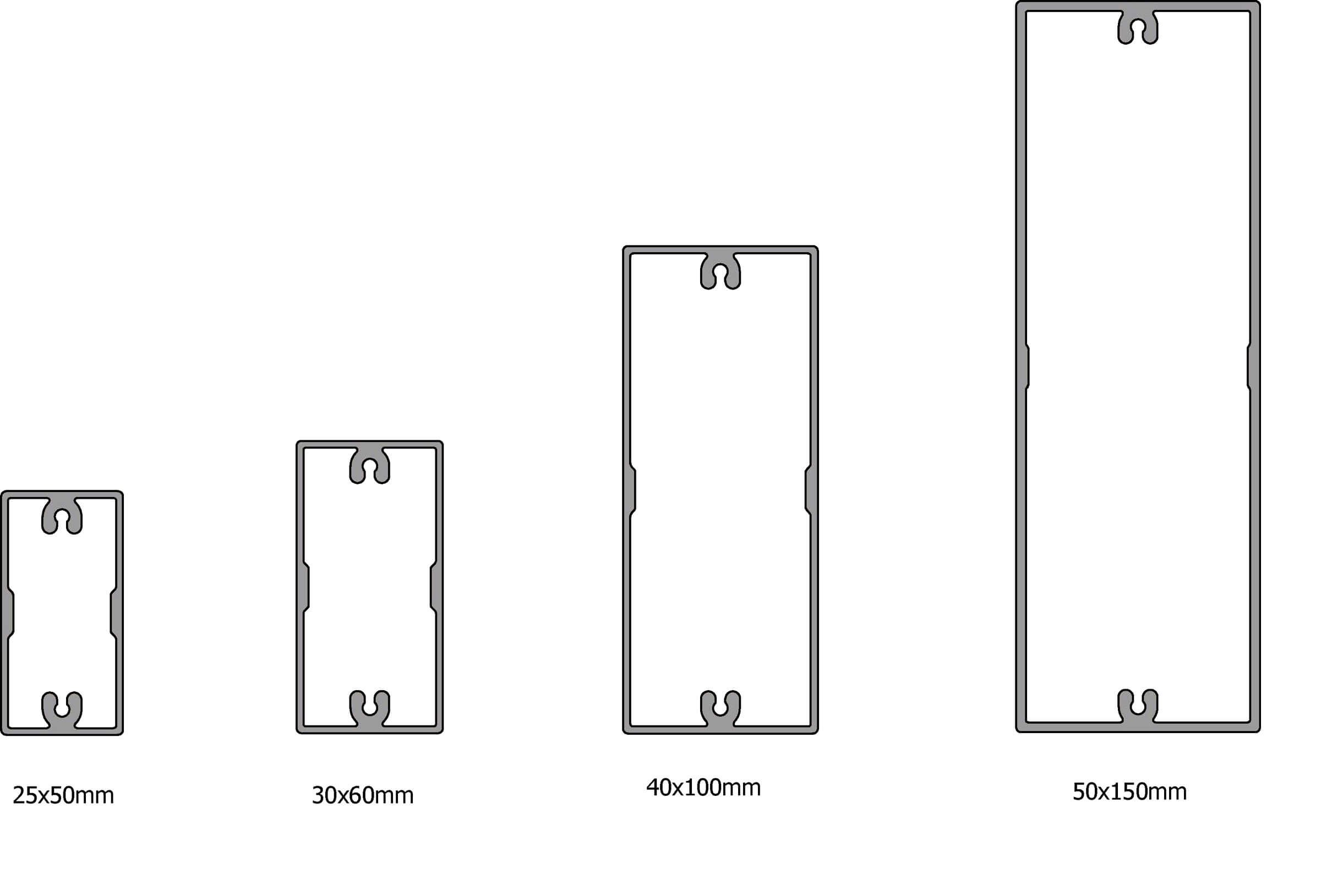

Profiles & Sizes

Click-on Screens are available in the following sizes and profiles. For larger projects, custom sizes and profiles can be created upon request. Please contact us for more information.

Sculptform-COS-aluminium-profiles

Finishes

Colours have been reproduced as accurately as possible, we recommend that you request product samples before making your final selection.

Please note: Lead times for product samples vary from 1-3 weeks for finishes depending on colour selected. Colour swatches are available for urgent requests. Please contact us for more information.

Wood Finish
*Our Wood Finish Aluminium – Select colours are available while stocks last.

Powder Coated
Selection of Dulux powder coat colours shown below. View the full range here.
We also offer Interpon powder coat colour range. View the full range here.

Nothing found.

American Oak_W1240H1240_50dpi-min

American Oak

Australian Ash_W1240H1240_50dpi-min

Australian Ash

Coffs Blackbutt_W1240H1240_50dpi-min

Coffs Blackbutt

Grey Gum_W1240H1240_50dpi-min

Grey Gum

Northern Spotted Gum_W1240H1240_50dpi-min

Northern Spotted Gum

Charred Ash_W1240H1240_50dpi-min

Charred Ash

Washed Oak_W1240H1240_50dpi-min

Whitewash Oak

Wood-finish-greywash-oak-150x150

Greywash Oak (Limited Stock)

Wood-finish-walnut-150x150

Walnut (Limited Stock)

Wood-finish-chocolate-oak-150x150

Chocolate Oak (Limited Stock)

Wood-finish-smoked-oak-150x150

Smoked Oak (Limited Stock)

Aluminium-Veneer-Walnut-2

Interior Only

Walnut

Anodised_Antique Gold-min

Antique Gold

Anodised_Black-min

Black

Anodised_Dark Bronze-2-min

Dark Bronze

Anodised_Medium Bronze-2-min

Medium Bronze

Anodised_Standard Bronze-2-min

Standard Bronze

Anodised_Pale Bronze-min

Pale Bronze

Anodised_Light Bronze-min

Light Bronze

Anodised_Gold_Dark-min

Dark Gold

Anodised_Gold_Light-min

Light Gold

Anodised_Gold_Medium-min

Medium Gold

Anodised_Silver-min

Silver

Bright White

Bright White - 27284636

Shoji White

Shoji White - 27284682

Rivergum Beige

Rivergum Beige - 27236991

Surfmist

Surfmist - 2722266M

Grey Nurse

Grey Nurse - 2727863G

Shale Grey

Shale Grey - 27283246

Mother-of-pearl

Mother of Pearl - 97184678

Natural-pearl

Natural Pearl - 97189119

Silver Kinetic Pearl

Silver Kinetic Pearl - 9717043K

Pewter-pearl

Pewter Pearl - 97188202

Prosecco

Prosecco Pearl - 9718417Q

Metropolis-storm-pearl

Metropolis Storm Pearl - 97184684

Bright Gold

Bright Gold Pearl - 9718420Q

Bronze-pearl

Anodic Bronze Pearl - 9718416Q

Charcoal-metallic-pearl

Charcoal Metallic Pearl - 97118796

Linen Pearl

Eternity Linen Pearl - 90T1138S

Chain Pearl

Eternity Chain Pearl - 90T7761M

Champagne

Eternity Champagne - 91T3059M

Bronze Pearl

Eternity Bronze Pearl - 91T8356S

Titanium Pearl

Eternity Titanium Pearl - 91T7765S

Charcoal Pearl

Eternity Charcoal Pearl - 90T7762S

Appliance White

Appliance White - 90Z1341S

Talc

Talc - 90Z1344S

Grey

Grey - 90Z7768S

Aluminium-Veneer-Whiteoak-2

Interior Only

White Oak

Dune

Dune - 2727558M

Metropolis-bronze-pearl

Metropolis Bronze Pearl - 97159003

Steel-pearl

Steel Pearl - 97157127

Onyx-pearl

Onyx Pearl - 97152052

Pewter Pearl

Eternity Pewter Pearl - 90T7764S

Lunar Grey

Lunar Grey - 90Z7769M

Basalt

Basalt - 2727865M

Woodland Grey

Woodland Grey - 2727197M

Monument

Monument - 2729067S

Charcoal

Charcoal - 2729229M

Black

Black - 2729090G

Anotec Mid Bronze

Anotec Mid Bronze - 27251014

Deep Ocean

Deep Ocean - 2725422M

Jasper

Jasper - 2728122S

Charcoal

Charcoal - 90Z7766S

Monument - Duratec

Monument - 90Z7307S

Black - Duratec

Black - 90Z9202M

Timberland - Duratec

Timberland - 90Z7315S

Finish Durability and Usage

Wood Finish
Interior and Exterior (AAMA 2605 tested)
Powder Coating
Interior and Exterior (AAMA 2604 and 2605 available)
Anodised
Interior and Exterior
Real Timber Veneer
Interior only

Length Options

Aluminium battens can be supplied at any lengths required up to 6m.

Spans and Cantilevers

For Interior Applications between clips or clip to mid support Rod.

For exteriors, site specific engineering loads have not been considered such as wind or barrier loads. We recommend consulting your structural engineer for confirmation. You can download our Product Technical Datasheet for clip capacities and batten sectional properties.

Spans and Cantilevers – Wind loads

The maximum screen batten spans and cantilevers depends on the site-specific wind loads and other engineering requirements. Here are some example spans for an application with up to 1.5kPa Serviceability Limit State.  For the full span chart, download the Click on Screens Technical Datasheet.

Profile Span Cantilever
25x50 2.6m  600mm
30x60 2.9m 700mm
40x100  3.4m 800mm
50x150  4m 800mm



Spans and Cantilevers – Balustrade Infill

Maximum Span between clip for a C3 or C5 balustrade is 1.2m

The maximum cantilever above top track:

Profile C3 C5
25x50 300mm 200mm
30x60 320mm 220mm
40x100  330mm 220mm
50x150  350mm 240mm

Spacing

The spacing of the screening battens is your choice. Clips are factory fitted to the Mounting tracks at the specified spacing specific for the project.

Minimum space: 25mm Gap to allow for batten removability.

If your screen is forming a barrier, the maximum gap is 120mm according to the 1170 Australian Standard.

Mounting Options

Sculptform Click-on Screens offer versatile mounting options, including back mounted, end mounted, or a combination of both, allowing flexibility to suit a wide range of applications and design requirements.

cos-mounting-options-e1647488219737

Clip Types

Sculptform have a range of clip types that can be used in a variety of ways to help achieve your design intent.

COS-Back-mount-fixed-clips

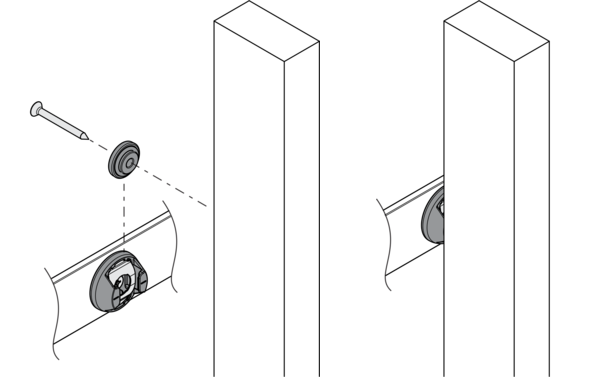

Back Mount Fixed

Back when using the Back Mount Method a 20mm clear gap is required above or below the batten to enable installation and removal of the battens.

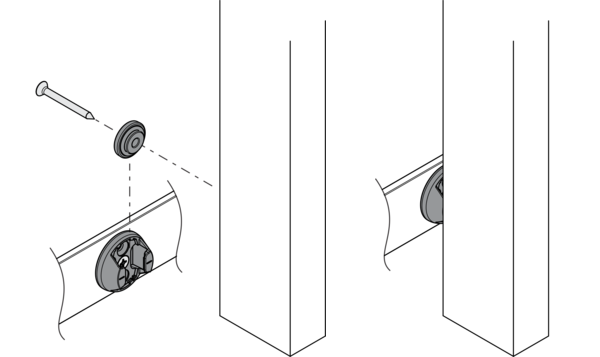

COS-Back-mount-float-clips

Back Mount Float

Back Mount Floating clip is only designed to take up to +- 5mm for installation and thermal movement. Not suitable for building movement. All mounting tracks to be fixed to a continuous frame that eliminates building movement. If your screen is a slab to slab application, or building movement is expected, refer to the End Mount floating clip.

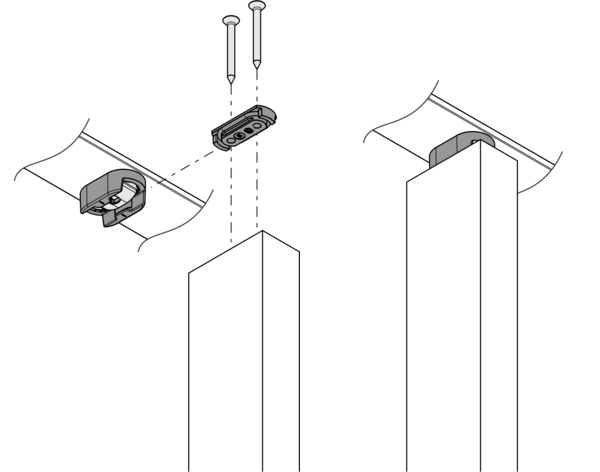

COS-End-mount-fixed-clips

End Mount Fixed

The End mount fixed clip is used to connect the end of the battens to a floor or ceiling. Its important that a floating clip is used on the other side of the batten.

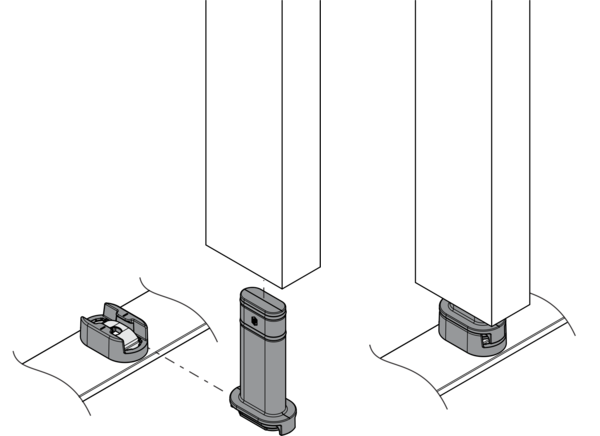

COS-End-mount-float-clips

End Mount Float

The End Mount floating clip can take up to +- 25mm of Building movement if installed with a 25mm gap under the batten.

Mounting Tracks

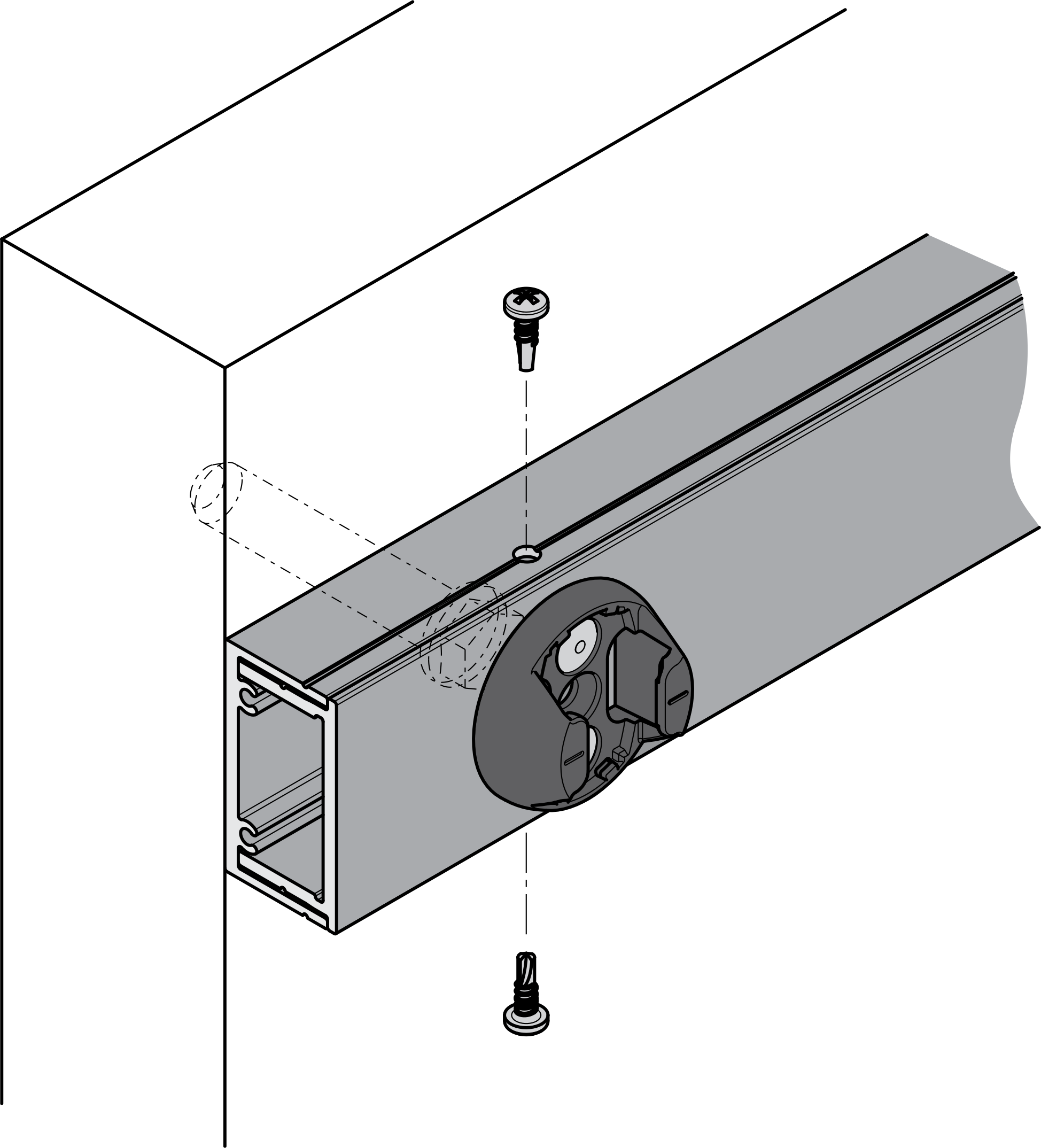

COS-split-track-45x25mm

Split Track - 45x25mm

Used in straight applications for both back mount and end mount. Designed to span up to 600mm between balustrade posts. Track has pull out adjustment from 25-35mm, to allow onsite packing.

For curved surfaces, kerfed track may not be suitable in reducing the stiffness of the track significantly, especially in barrier applications. Contact us for more information.

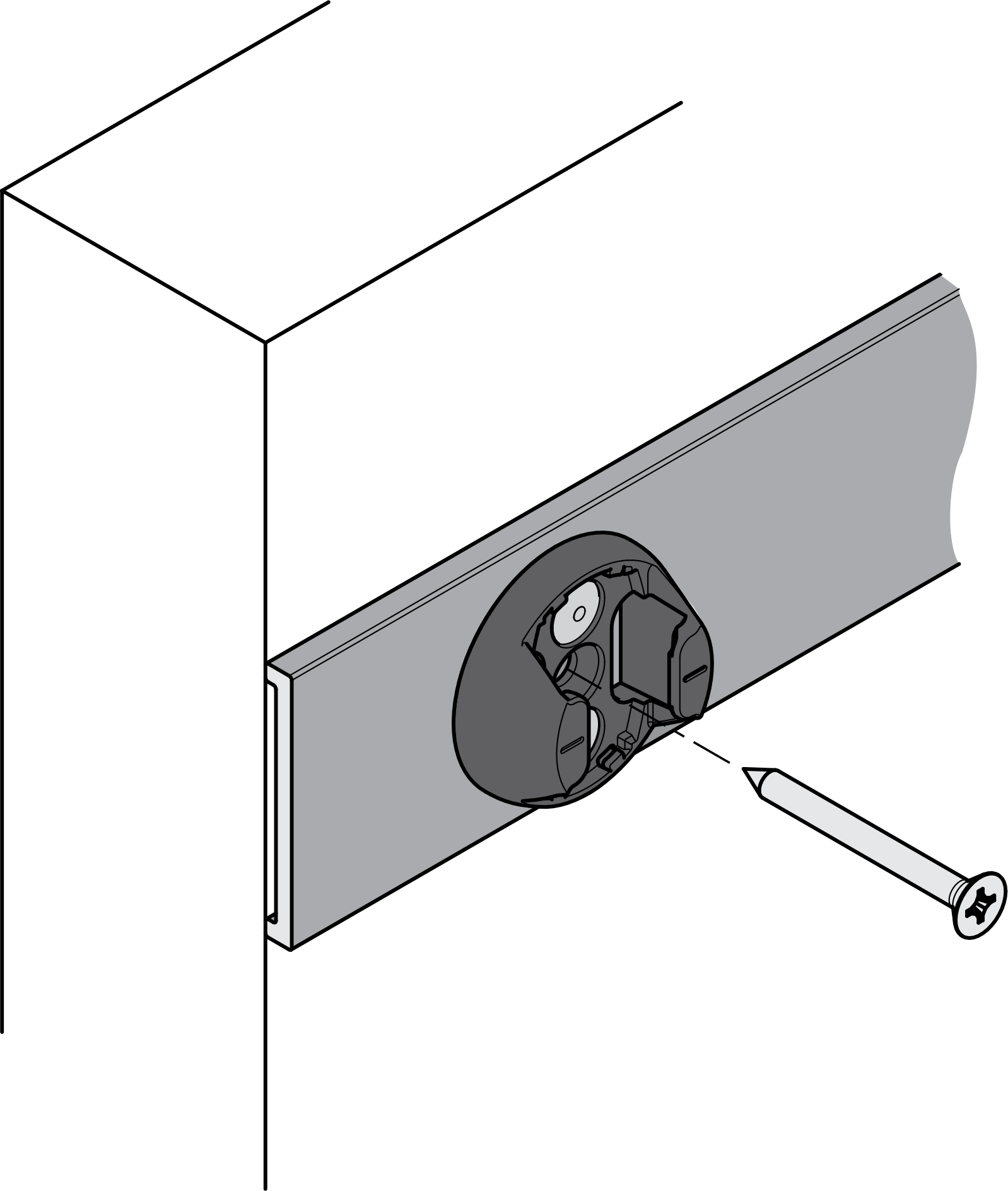

COS-slim-track-45x5mm

Slim Track - 45x5mm

Default end mount track, designed to be slim to the floor and ceiling. Used for back mount curves down to a 600mm Radius. Fixing of this track must be through the centre of the clip casting.

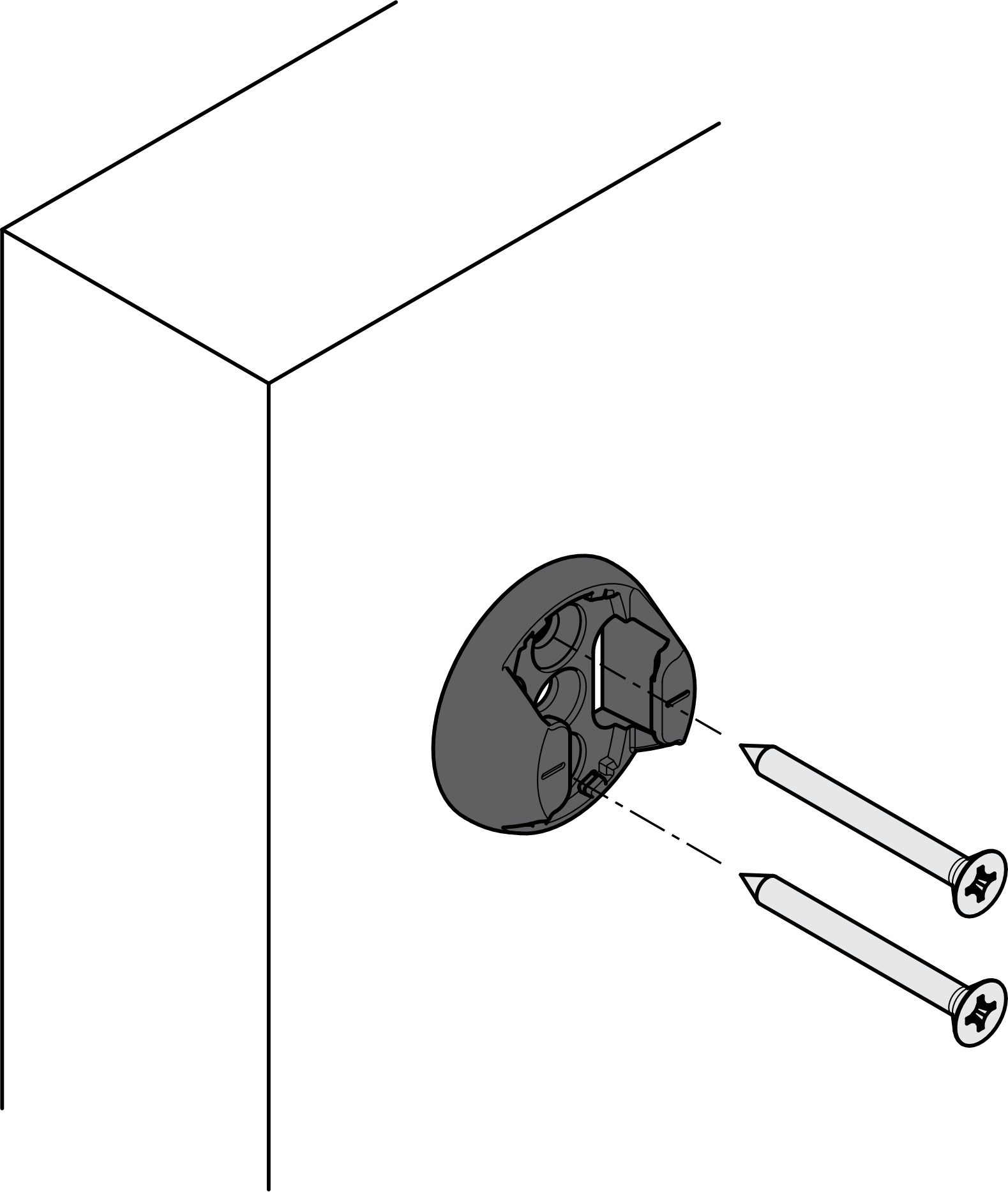

COS-direct-fix

Direct Fix

Where no track is desired for both back mount and end mount. Complex site specific spacing. Sculptform does not take responsibility for the clip to substrate connection. Screw not supplied by Sculptform. Suitable fixing needs to be considered by the installer. M5 or 10g countersunk screw is most suitable.

Fire Resistance

See our Product Downloads for a full list of documents available for download or our Technical Documents below.

Australia/New Zealand

Group Rating:

  • Group 1 according to NCC 2022 and AS 5637.1:2015
  • Group 1-S according to NZBC C/VM2

Combustibility:

Deemed non-combustible according to AS 1530.1, NCC 2022 Vol 1 and NZBC C/AS2.

United States

  • ASTM E84: All finishes - Class A
  • ASTM E136-19a: Non-combustible

United Kingdom

BS EN 13501-1 Classification:

  • Wood Finish: Class B-s1, d0
  • Powder coating: Testing in progress
  • Anodising: Class A1

Sustainability - Declare

Declare(r)-02_Declare_web

Sculptform is proud to offer products with Declare Labels, a transparency initiative that helps architects and designers make informed choices about materials. Declare Labels provide clear, accessible information on the ingredients used in our products, ensuring they meet strict sustainability standards. By choosing Sculptform, our customers can confidently specify materials that contribute to healthier, eco-friendly building environments, supporting their sustainability goals and aligning with green building certifications like LEED and WELL.

Our declaration is LBC RED LIST APPROVED.
This is defined as: products disclose a minimum of 99% of ingredients present in the final product and meet the LBC Red List Imperative requirements through one or more approved exceptions.
