Typical Facade Setup
The System
Mounting Rail |
Blade Mounting
|
Blades |
Can be coloured to suit your needs and is available in a 50x50mm standard rail. Other sizes are avaIlable if larger spans required. |
|

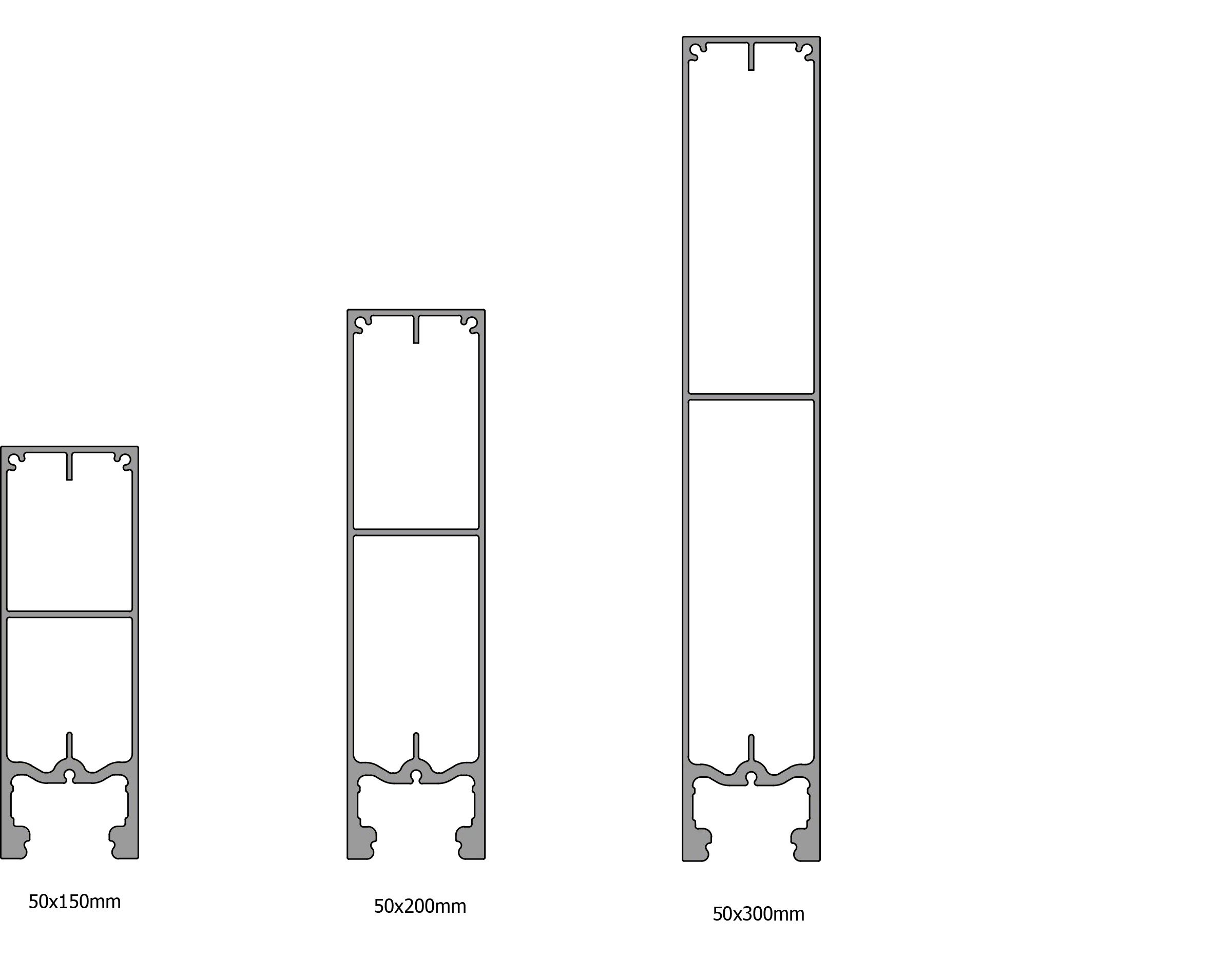

Extruded Aluminium available in the following three sizes (see below):
|
Blade Sizes
Finishes
Colours have been reproduced as accurately as possible, we recommend that you request product samples before making your final selection.
Please note: Lead times for product samples vary from 1-3 weeks for finishes depending on colour selected. Colour swatches are available for urgent requests. Please contact us for more information.
Selection of Powder coat colours shown below only. We do offer full range of colours available here.
Sustainability
Sculptform is proud to offer products with Declare Labels, a transparency initiative that helps architects and designers make informed choices about materials. Declare Labels provide clear, accessible information on the ingredients used in our products, ensuring they meet strict sustainability standards. By choosing Sculptform, our customers can confidently specify materials that contribute to healthier, eco-friendly building environments, supporting their sustainability goals and aligning with green building certifications like LEED and WELL.
Our declaration is LBC RED LIST APPROVED.
This is defined as: products disclose a minimum of 99% of ingredients present in the final product and meet the LBC Red List Imperative requirements through one or more approved exceptions.
Mounting Options

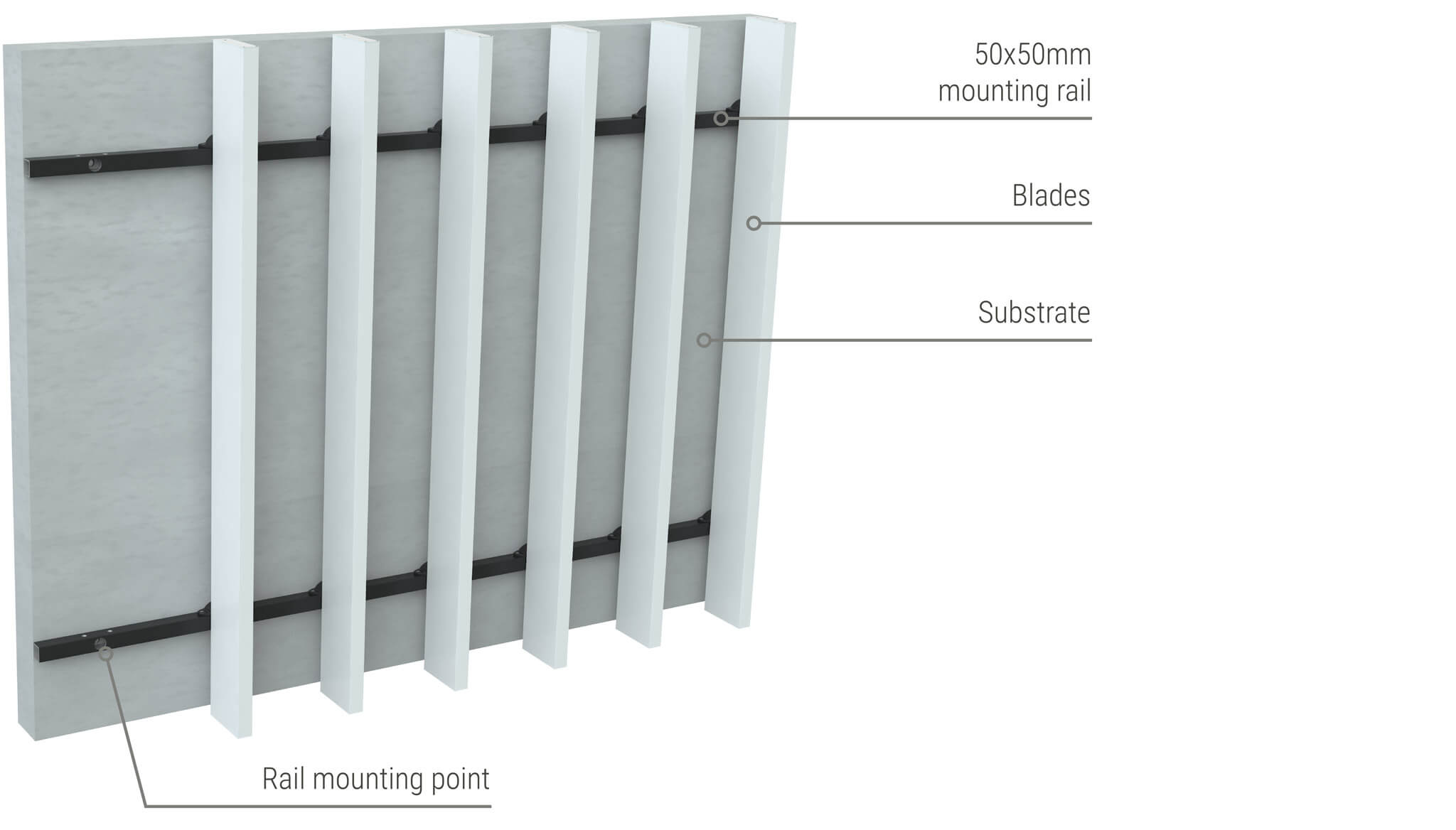

Direct Fix - 50x50mm Mounting Rail
The direct fix method uses a 50x50mm aluminium mounting rail which is suitable to be fixed to concrete or a steel structure.
Rail mounting point
Blade Spacing Options
Sculptform’s Facade Blades allow specifiers ultimate customisability when it comes to blade spacing. Typically blades are spaced with a 150-300mm gap between blades.
If the facade is acting as a balustrade, the maximum blade spacing is 125mm due to NCC regulations, the minimum blade spacing for all facade blade applications is 100mm.
Blade spacing is an effective element for value management, as small changes can have a significant impact on overall system cost.
Blade Span Chart
This span chart is designed to be used by a qualified engineer. It covers the span and cantilever of vertical blades for a single span application, but not the connection of the mounting rail back to the building structure.
Only considers wind load, other loads (eg. Seismic and live loads) are not considered, as they will depend on the specific project site.
For a small fee Sculptform can do a preliminary engineering check for your project specifically. Contact us for more information.
Maximum Wind Pressures (kPa)
Blade Size (L) | Length (m) | |||||||||
2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | |
50x150mm | 9.5 | 7.6 | 6.3 | 5.4 | 4.7 | 4.2 | 3.8 | 3.4 | 3.1 | 2.9 |
50x200mm | 8.9 | 7.1 | 5.9 | 5.1 | 4.4 | 3.9 | 3.5 | 3.2 | 2.9 | 2.7 |
50x300mm | 5.5 | 4.4 | 3.7 | 3.1 | 2.7 | 2.4 | 2.2 | 2.0 | 1.8 | 1.7 |

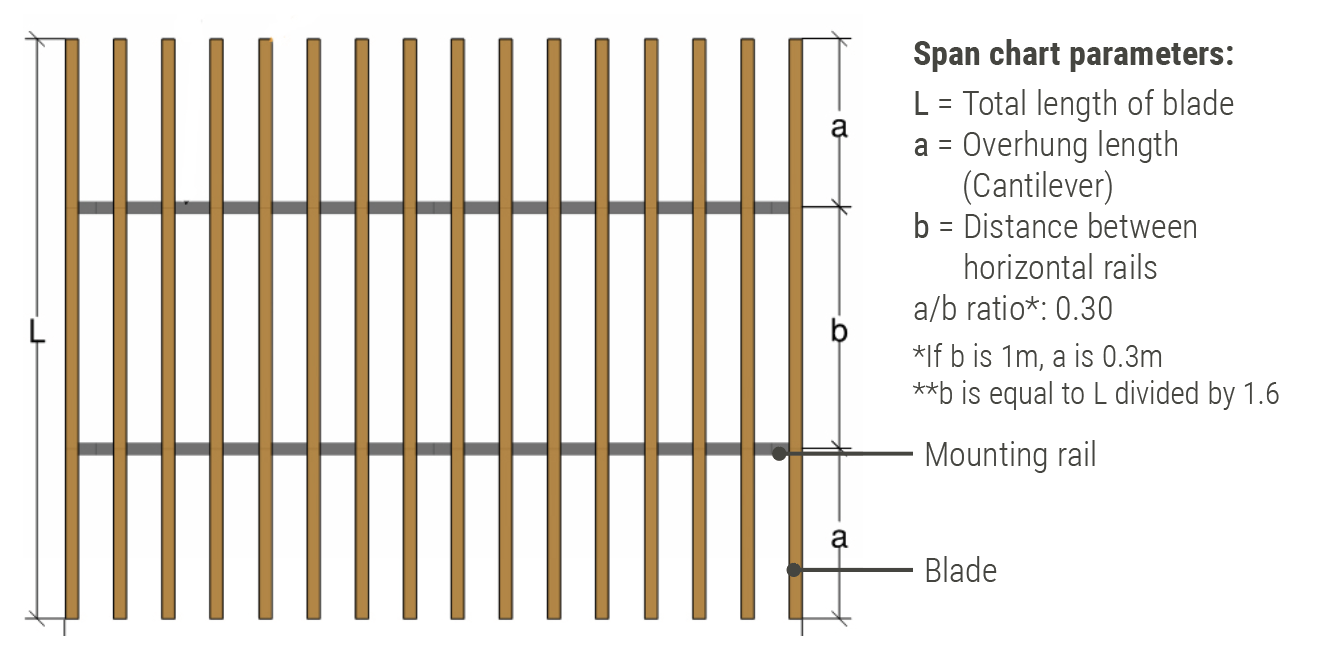

- This span chart is based on a simply supported beam with two equal overhangs restraint condition (as shown above).
- The span chart represents the maximum wind load in kPa that the respective blade size
can withstand. - Wind pressure tabulated above represents the wind pressure on the blade, which considers the drag coefficient of the blade and the local pressure coefficient. Note this is different to the site wind pressure.
- The span chart is calculated based on the parameters as listed above.
- The span chart above is for preliminary design only. Each project should verify the engineering for specific project purposes.
- Rail length, number and type of fixings to the base building should be checked on a project-by-project basis.
- Incidental load from building occupants/public/façade access activities have not been considered and need to be assessed project specifically.
- The blades are assessed for deflection on the following limits: span/250, and span/125. For strength, the blades are assessed on the yield strength of 6063-T6 alloy (172 MPa); and the blade to rail brackets are assessed on the yield strength of 167 Mpa.

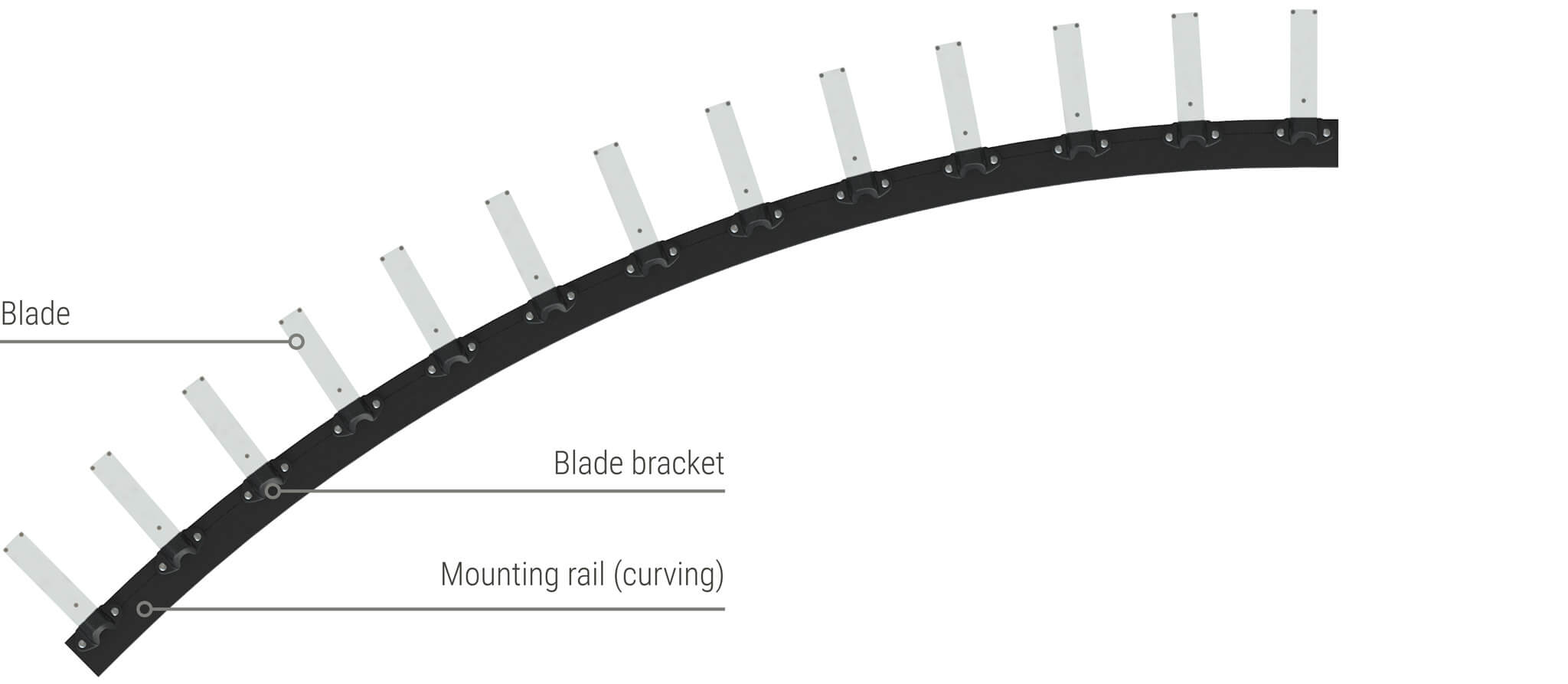

Curving Rail - Minimum Radius
The facade blade rail system can be factory curved to a minimum radius of 1.5 metres for both concave and convex curves when the 50x50mm rail is used.

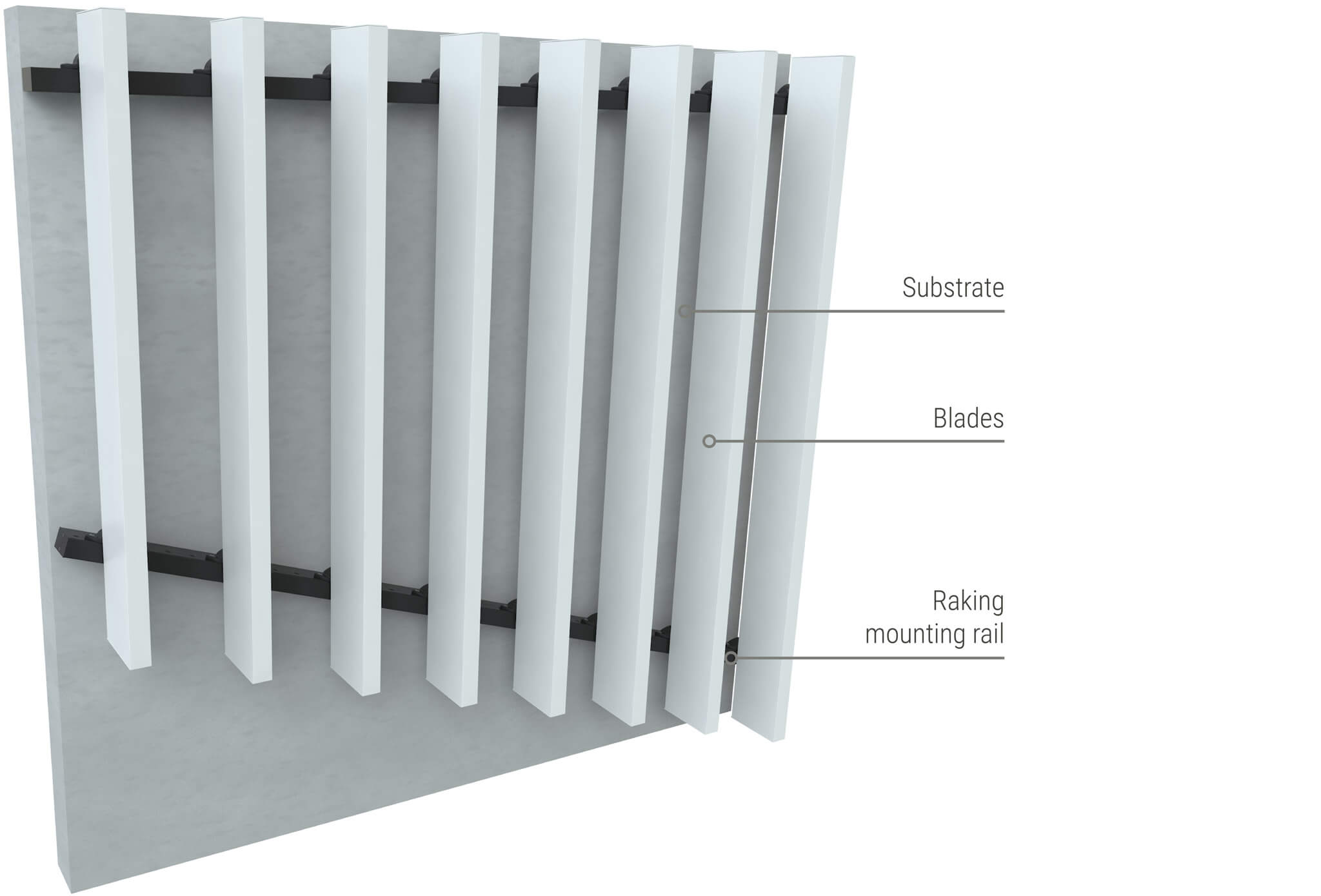

Raking Mounting Rail
For more design freedom, the two part bracket allows to blade to be installed non-perpendicular to the rail. This creates opportunities for raking effects and angled blades on your facade with minimal blade cantilever.

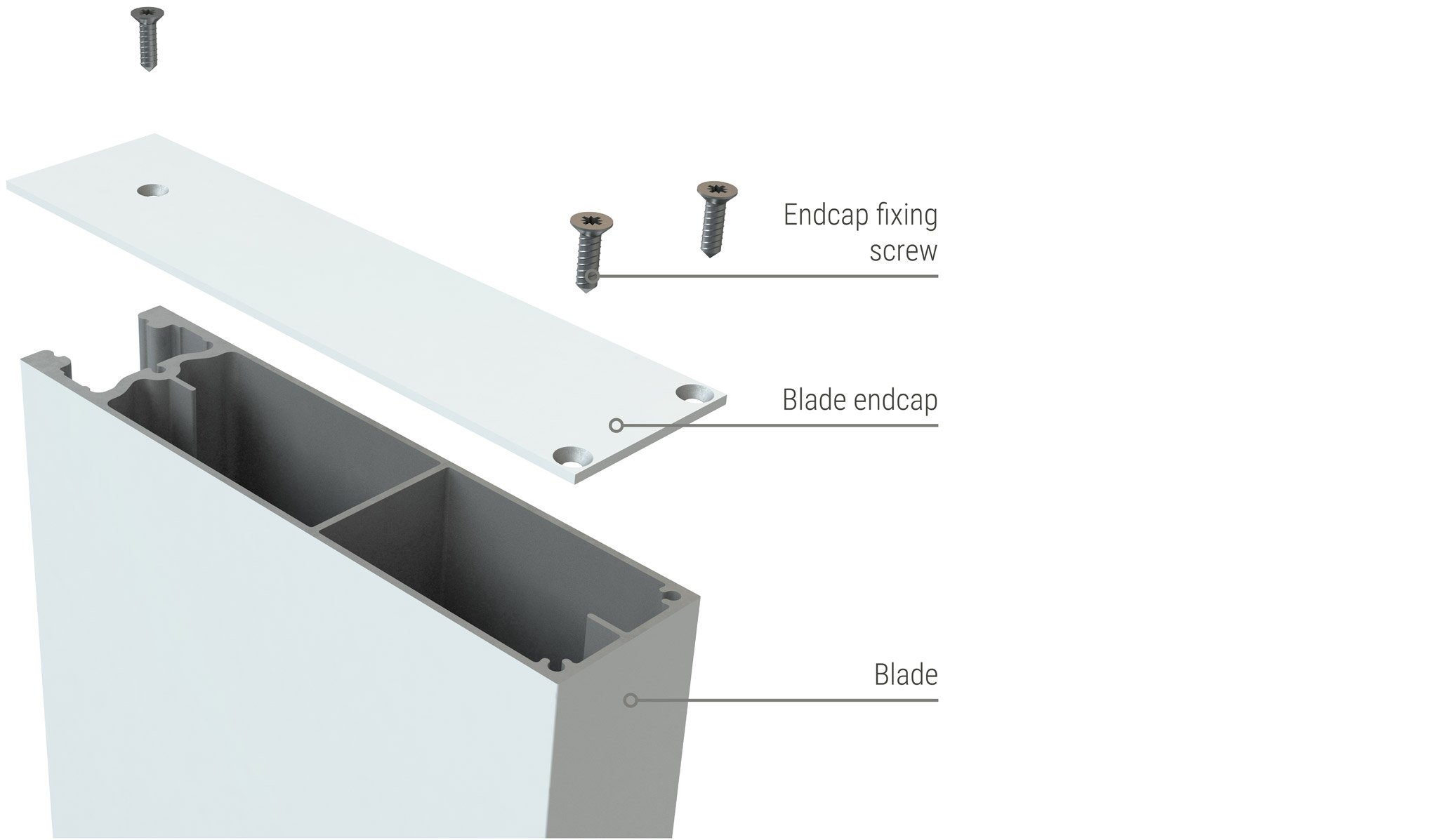

Blade End Caps
End caps are easily snapped in, with the added security of a locking off screw.

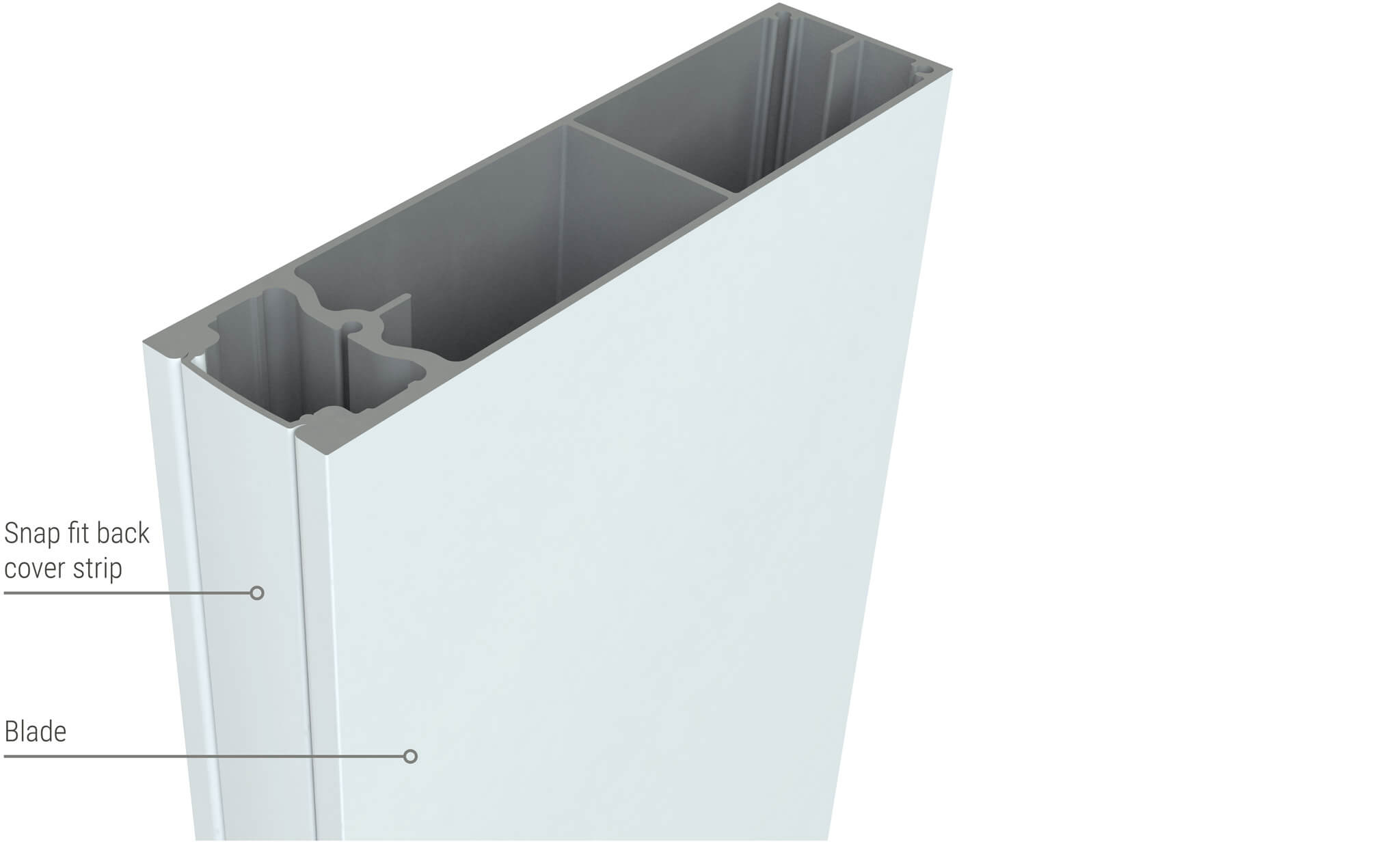

Back Cover Strip
To provide a seamless visual appearance to the back of the batten, back cover strips are provided which simply snap into the rear of the batten on site.
Corner Details
- Set the fins in from the corner and mitre the rail
When wrapping blades around a 90-degree corner, the recommended option is to set the fins in from the corner and mitre the rail.
Fire Compliance
Sculptform’s Aluminium is deemed non-combustible according to the test criteria specified in Clause 3.4 of AS 1530.1-1994.
Download Certificates
Maintenance and Cleaning
Aluminium is a relatively low maintenance solution for any facade application. Maintenance largely depends on the degree of exposure, location of the project, and the coating used on the blades. Generally, no cleaning is required; however a typical schedule could include a visual inspection every 12 months to ensure there are no adverse environmental effects.
Surface dirt/dust, spider webs, bird droppings, rain spots and other debris, while not harmful can be unattractive and reduce the visual impact of a facade. A soft bristle broom or brush can be used to wipe the facade. Water can be used to aid the process but do not use harsh chemical cleaners as in some cases, coated layers can be removed.
Industrial and coastal environments will require a more frequent maintenance schedule to inspect for salt, visual deposits etc.
